Panel mount non-shorting micro 2 pole 3 position toggle Slide Switch
Typical Specifications
Ratings: 0.3A 50V
Operating Force:250±100gf
Full Travel: 2±0.2mm
Operation life: 10,000 cycles
Slide switch knob: 5mm
Operating Temperature Range: -20℃～70℃

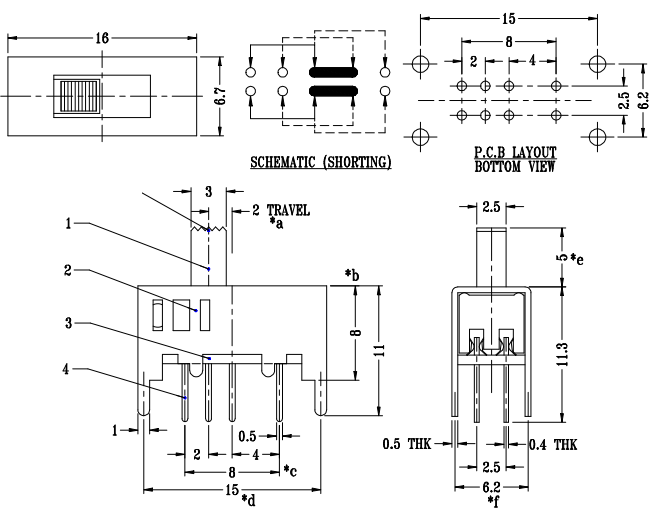

Slide switch schematic
DP3T PC Pin slide switch
How to connect a slide switch
Slide switches are commonly used in all kinds of instruments/meters equipment, electronic toys and other fields related.
How it works: The middle pin is fixed. When the handle is pushed to the left, the left two pins are connected; push it to the right,
the two pins on the right connect, thus switching circuits.
