Lowest Price On Sale for Stocklot Tactile Switch bracket Side press smd tactile switches KAN0631-0903B
Item NO.:
KAN0631-0903BOrder(MOQ):
1000pcsPayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
whiteShipping Port:
Ningbo/ShenzhenLead Time：
7 Working Days after paymentOutline (mm)
6.00mm x 6.00mmMounting Type
Right Anglelllumination
Non-llluminatedIP Rating
IP4X

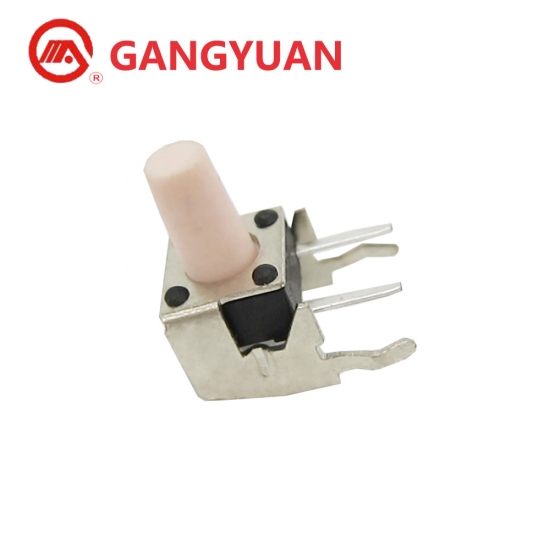

Lowest Price On Sale for Stocklot Tactile Switch bracket Side press smd tactile switches
Basic Information
|
Model Name: |
6x6mm side press bracket type SMD momentary tactile switch |
|
Model No.: |
KAN0631-0903B |
|
Dimension: |
6x6xH 9mm |
|
Operating force: |
100±30gf /160±50gf /260±50gf |
|
Life cycles: |
100,000/80000/60000 Cycles |
|
Working tempreture: |
-20℃to+70℃ |
|
DC rating: |
10mA 5VDC |
|
Insulation resistance: |
100MΩ min.100V DC |
|
Dielectric strength: |
250V AC for 1 min |
|
Contact resistance: |
100m Ω max. |
|
Full travel : |
0.25±0.1mm |
|
Passed test: |
Salt Mist/Solderability/Resistance to low temperature/Heat resistance/Change of temperature /Moisture resistance /Sulfuration Resistance etc |
|
Certifications: |
CE,ROHS, REACH, ENEC, |
|
Features: |
High quality, durable using life |
Dimension
Tact Switch Using Attention
1．Please consult us when considering to wash tact switches2．Please don’t immerse soldering flux into tact switches
3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board
4．The second welding should be done after switches return to normal temperature
Our advantage
1. Excellent R&D team, clients design requests are welcome.
2. Experience of more then
two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.
Application
Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
