The 6x6 tact switch foot is 14.3mm long.
Brand:
GangyuanItem NO.:
KAN0652-0501C1Order(MOQ):
2500Payment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
blackShipping Port:
Ningbo/ShenzhenLead Time：
7-14 working days for paymentOutline (mm)
6.00mm x 6.00mmMounting Type
Through Holelllumination
Non-llluminatedIP Rating
IP4XDC 12V 50mA 6x6 dip long pin tact switch for printer
SPQ: 2500pcs/reel packing
Tact switch datasheet
Number: KAN0652-0501C1
Height: 4.3~9.5mm
Operating force: 100/160/260gf
Rating: 12VDC,50mA
Contact resistance:≤100mΩ
Insulation resistance: ≥100MΩ
Life: 60000 cycles

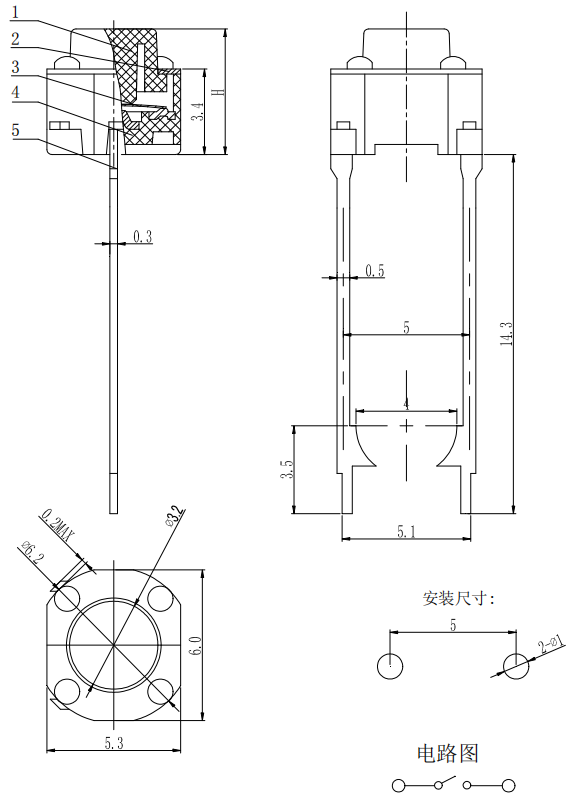

Circuit
Noted
1. The pad size of the printed substrate is shown in the product diagram.
2. In the case of using soldering iron, soldering conditions shall be 350℃ max and 3 sec.max.
3. Prevent flux penetration from the top of the switch
4. After switches were soldered,please be careful not to clean switches with solvent or other similar products.
5. Right after switches were soldered;please be careful not to load to on the knobs of switches.
6. Please be cautions not to give excessive static load or shock to switches.
7. Please be careful not to pile up P.W.B.after switches were soldered

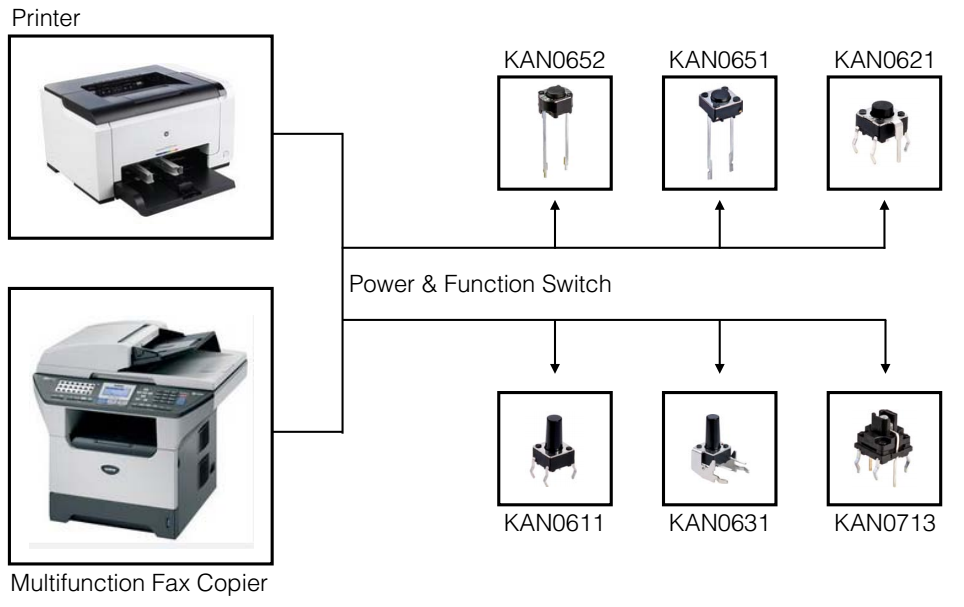

Application

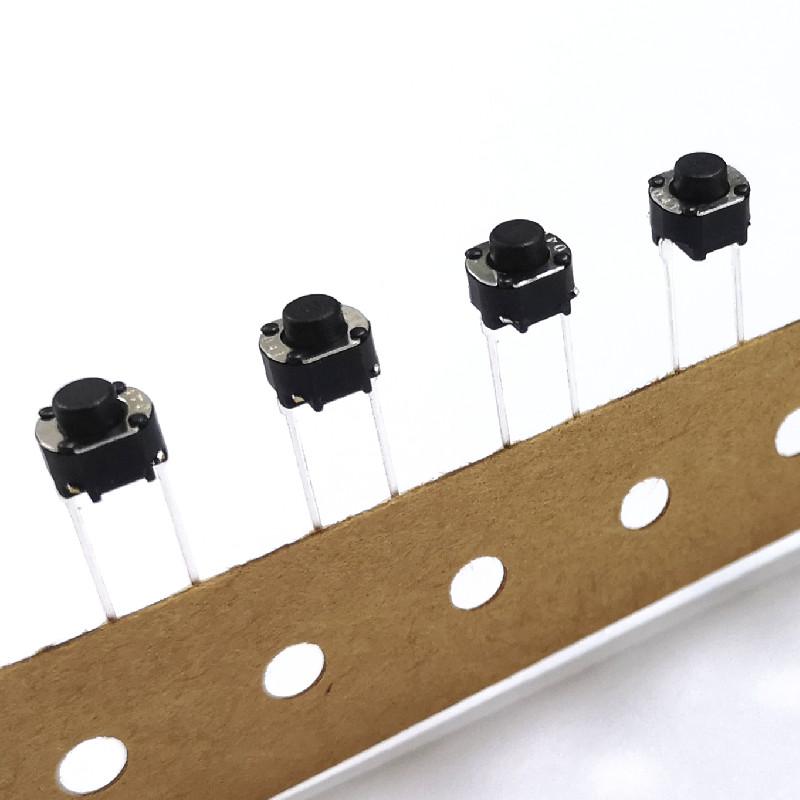

Packing

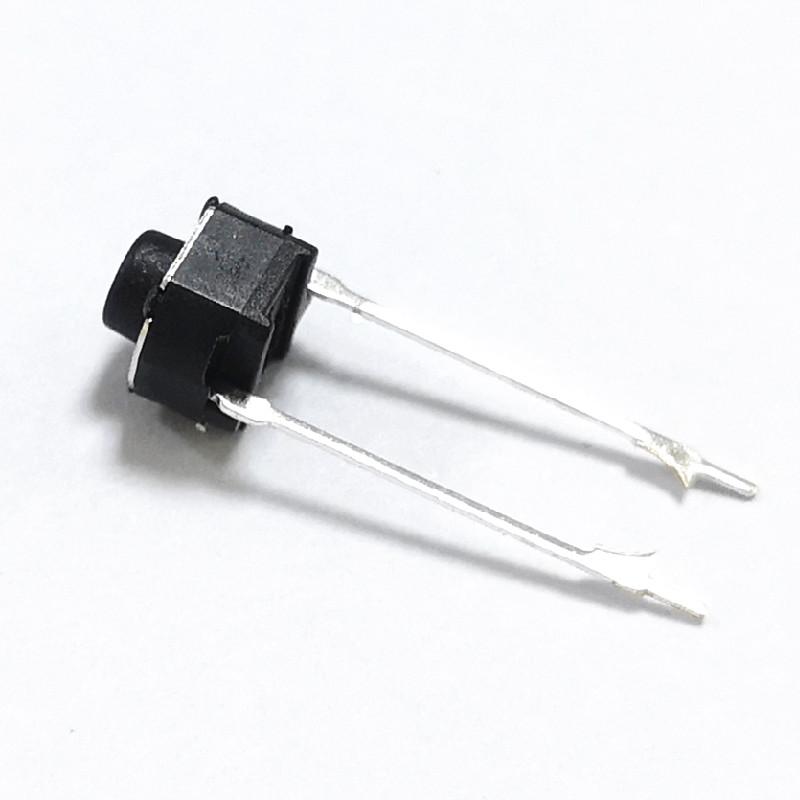

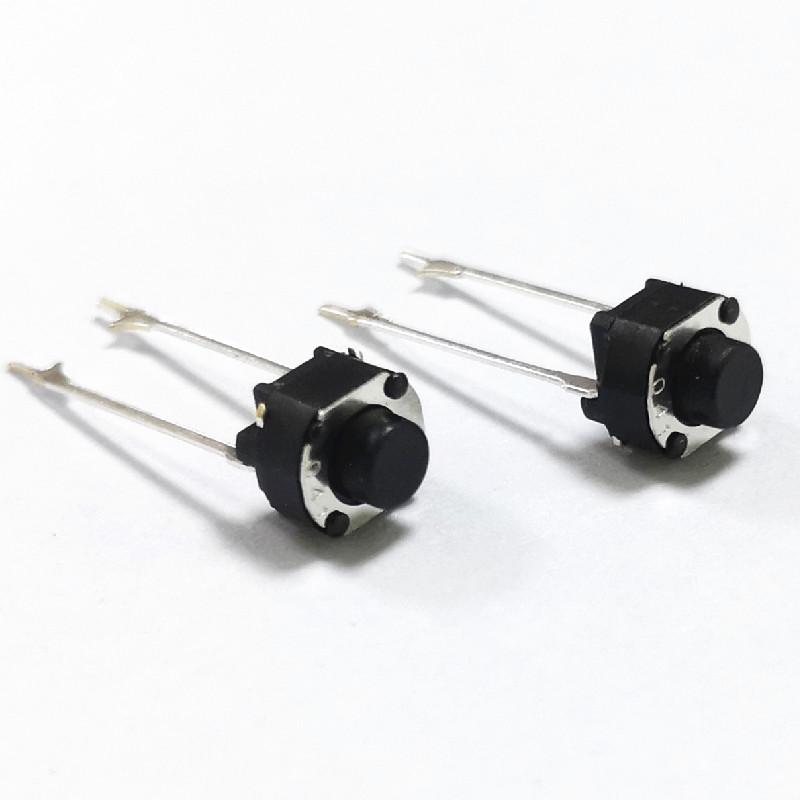

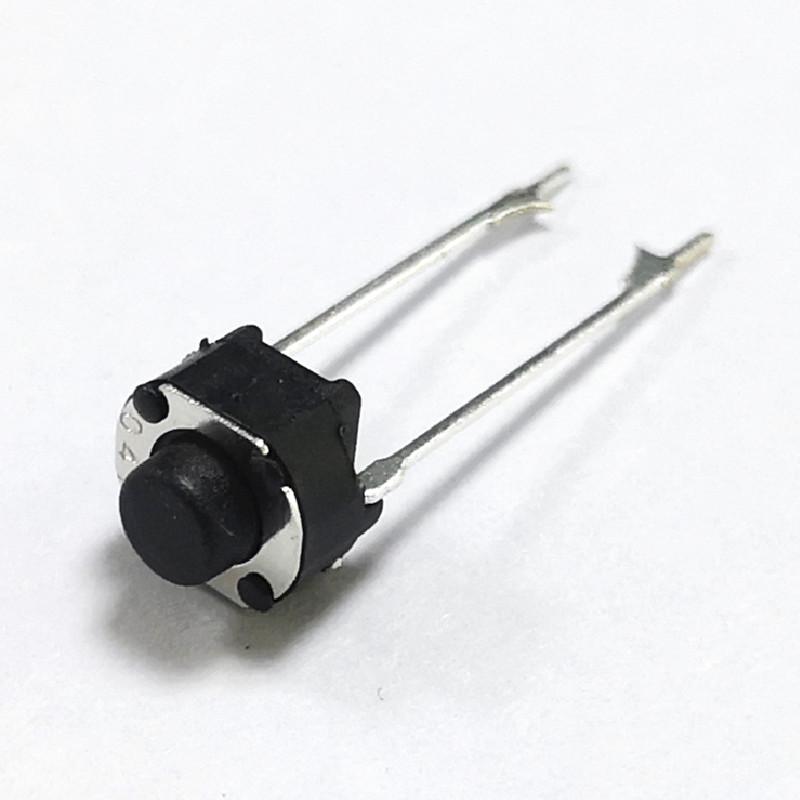

Mechanical switches 2 pin DIP push switch long pin
