Home Switch Tactile switch 06 Series tact switch ROHS IP67 Waterproof Tact Switches
Tactlie Switch

ROHS IP67 Waterproof Tact Switches

6x6 ROHS IP67 Waterproof Electronics Switches Tact Switches

  • Brand:

    Gangyuan

  • Item NO.:

    KAN0656

  • Order(MOQ):

    1000pcs

  • Payment:

    100% T/T Before Production

  • Product Origin:

    Zhejiang, China (Mainland)

  • Color:

    black

  • Shipping Port:

    Ningbo/Shenzhen

  • Lead Time：

    7 Working Days after payment

  • Outline (mm)

    6.00mm x 6.00mm

  • Mounting Type

    Through Hole

  • lllumination

    Non-llluminated

  • IP Rating

    IP67
Contact Us

  • Product Detail

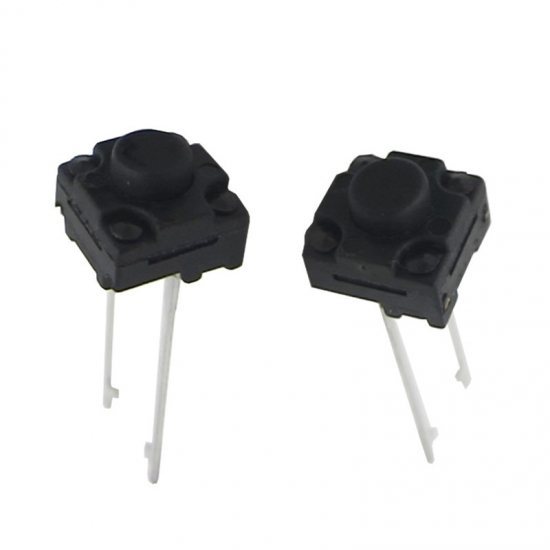

6x6 ROHS IP67 Waterproof Electronics Switches Tact Switches


KAN0656 tact switch 6x6 2 pines, height customizable range 4.3~9.5mm, applicable to the maximum current 50mA, voltage 12Vdc, waterproof function, waterproof grade up to the highest IP67 level


Basic Information

Rating DC 12VDC 50mA
size 6*6mm
Height 4.3mm-9.5mm
Operating force 160gf/260gf
Life cycle 30,000/50,000 cycles
Travel 0.25mm±0.1mm
Certification ROHS

Dimension


Toggle switch adopted the technique of integrated circuit and SMT appearance device technology and manufacture of a new generation of photoelectric switch device, time-delay, broadening, outer synchronization, resistance to interference, high reliability and stable working area and function of intelligent self-diagnosis and so on. This novel photoelectric switch is a kind of active photoelectric detection system adopts the pulse modulation type electronic switch, cold light source used by infrared light, red light, green light and blue light, such as non-contact, quickly and without damage to control all kinds of solid, liquid and transparent body, black body, soft body and smoke substances such as the status and action. Drive water-proof explosion-proof switch contact trip switch have low response speed and precision and contact tested and short life of the easy damage such as faults, and the role of the proximity switch transistor distance is short, can not directly detect non-metallic materials. But the new photoelectric switch is to overcome the above shortcomings, and small volume, and long service life, high precision, fast response speed, long detection distance and light, electricity, magnetic disturbance resistance ability. Toggle switch the introduction of varieties and mechanical performance specifications Toggle switch is through the toggle switch handle make circuit connected or disconnect, so as to achieve the aim of the switching circuit. Commonly used varieties have a unipolar toggle switch on-off, unipolar and bipolar two position and three bipolar, etc., it is generally used in low voltage circuit, with the slider move flexible, stable and reliable performance characteristics. Gangyuan electronics specializing in the production of: light touch switch, toggle switch, button switch, patch light touch switch, patch toggle switch, high temperature resistant light touch switch, high temperature resistant, toggle switch, high quality light touch switch, touch switch factory, repeated ten million times, the quality is consistent. .jpg


Tact Switch Using Attention

1．Please consult us when considering to wash tact switches

2．Please don’t immerse soldering flux into tact switches

3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4．The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
