power electrical jack socket

3 pin 0.3A 50V DC UL/ISO9001 power electrical jack socket

Brand:
Gangyuan
Item NO.:
DC-017-20
Order(MOQ):
10pcs
Payment:
100% T/T Before Production
Product Origin:
Zhejiang, China (Mainland)
Color:
black
Shipping Port:
Ningbo/Shenzhen
Lead Time：
3 working days for payment

Product Detail

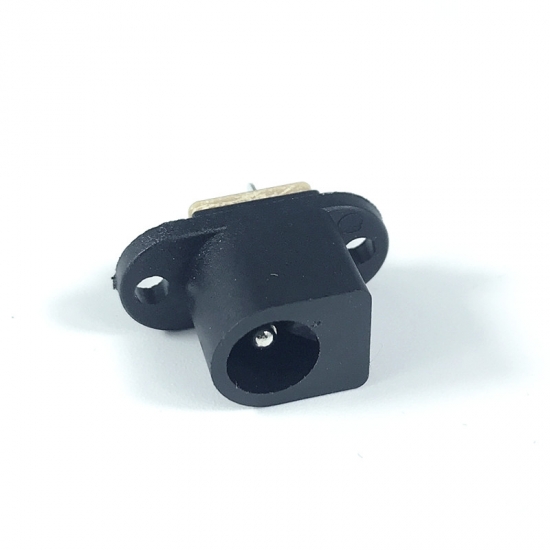

3 pin 0.3A 50V DC UL/ISO9001 power electrical jack socket

Basic Information

Item No:	DC-017-20
Rating	0.3A 50V DC
Practical Terminal Range	-16~65ºC
Connection force	3~20N
operating life	5000 cycles
Insulation resistance	≥100MΩ
Contact resistance	≤0.03Ω
Dielectric strength	AC 500V (50Hz)/min

Dimension

power connector socket.jpg

Tact Switch Using Attention

1．Please consult us when considering to wash tact switches

2．Please don’t immerse soldering flux into tact s

3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4．The second welding should be done after switches return to normal temperature

Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.

Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

act Tactile Switch
