Wenzhou Gangyuan Electronics Co.,Ltd.

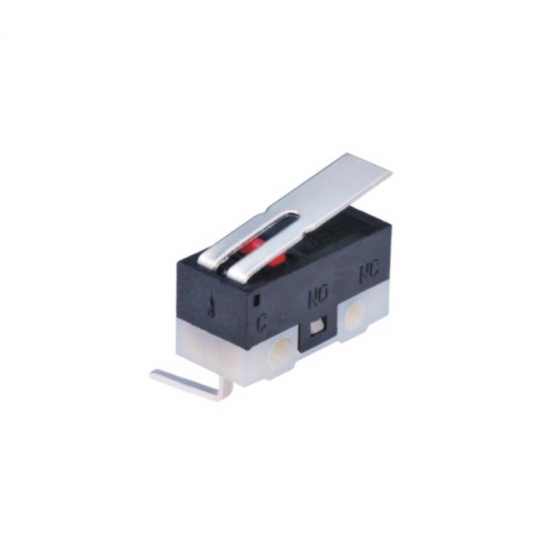

KW10-3Z-02 Bent Pin Optional Lever Micro Switch
Brand:
GangyuanItem NO.:
KW10-3Z-02Order(MOQ):
1000pcsPayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
black and whiteShipping Port:
Ningbo/ShenzhenLead Time：
7 Working Days after paymentOutline (mm)
12.80mm x 6.60mmMounting Type
Right Anglelllumination
Non-llluminatedIP Rating
IP4X
KW10-3Z-02 Bent Pin Optional Lever Micro Switch
Basic Information
| Item No. | KW10-3Z-02 |
| Dimension | 13mmx5mm |
| Contact resistance | ≤100mΩ |
| Insulation resistance | AC 500V 1Minute |
| Operating temperature | -25℃+85℃ |
| Operating force | 80±15gf |
| Life expectancy | 10,000Cycles |
| Rating |
AC 125V 1A |
Dimension
Tact Switch Using Attention
1．Please consult us when considering to wash tact switches2．Please don’t immerse soldering flux into tact switches
3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board
4．The second welding should be done after switches return to normal temperature
Our advantage
1. Excellent R&D team, clients design requests are welcome.
2. Experience of more then
two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.
Application
Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
Previous:
micro switch 6A 250VacNext:
1a 125vac micro switchIf you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
