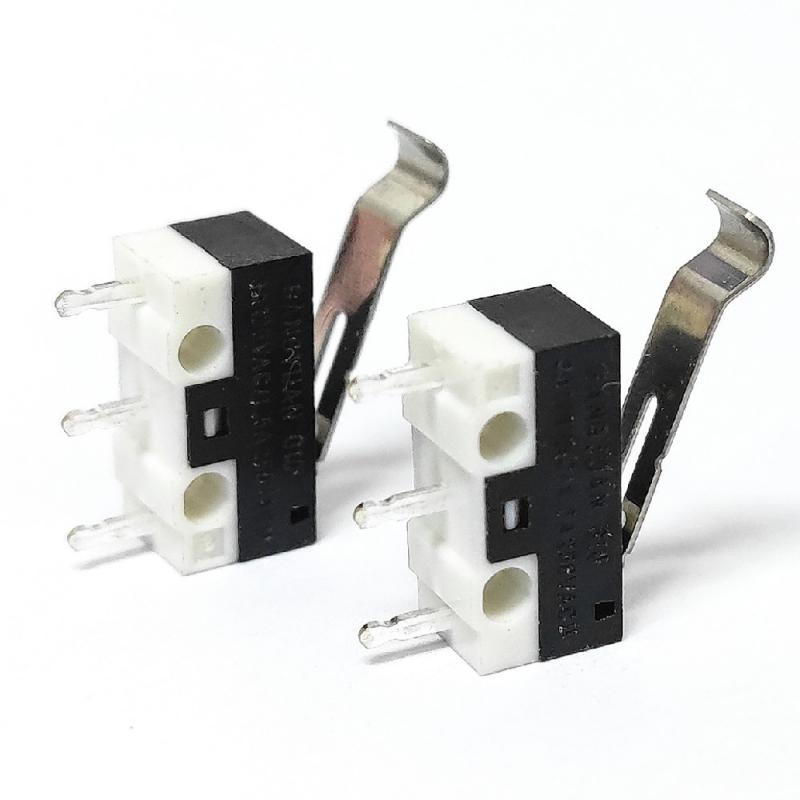

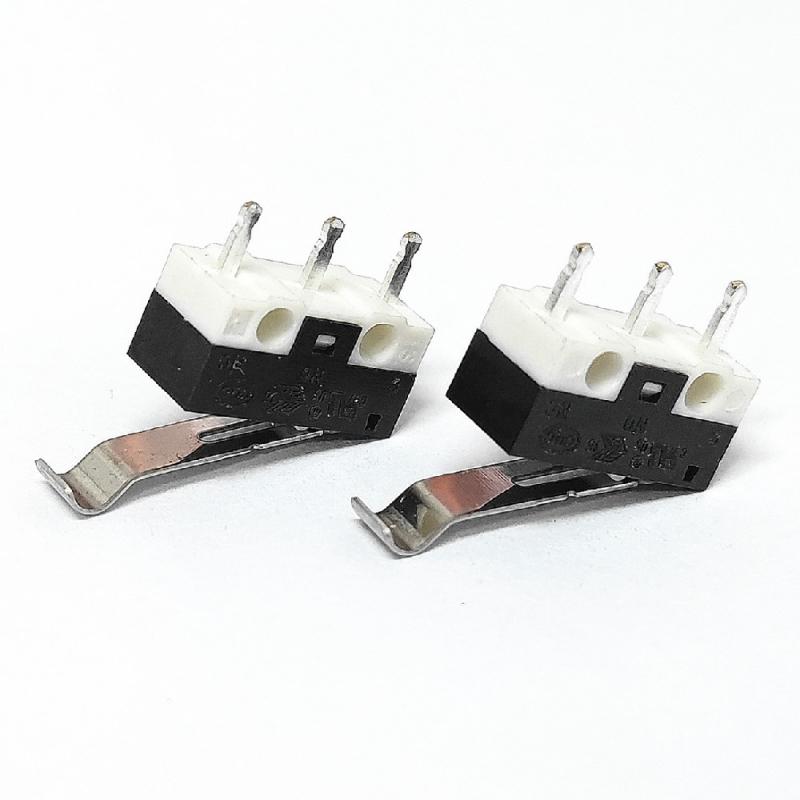

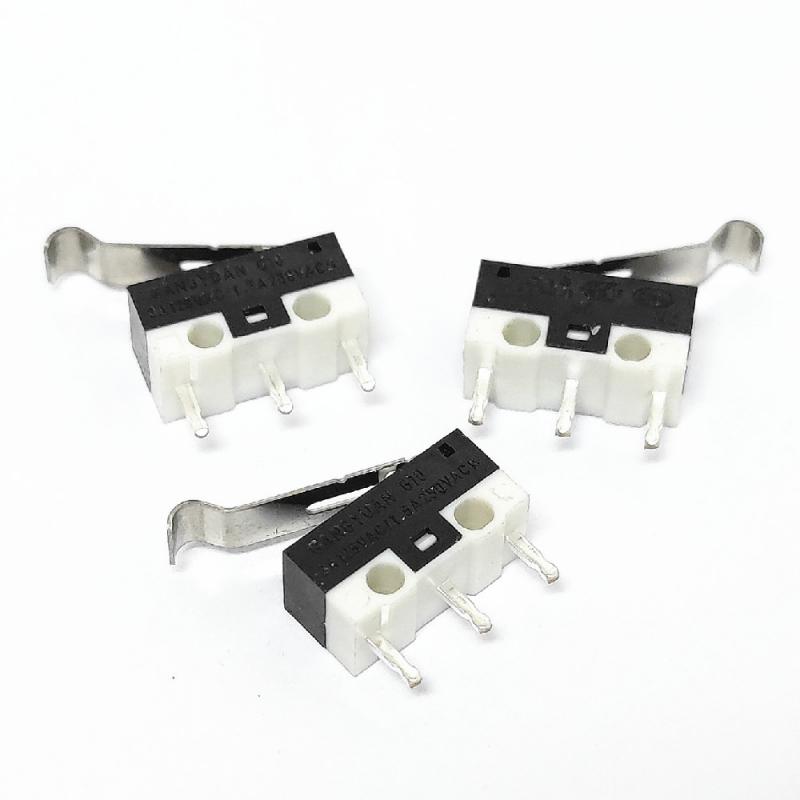

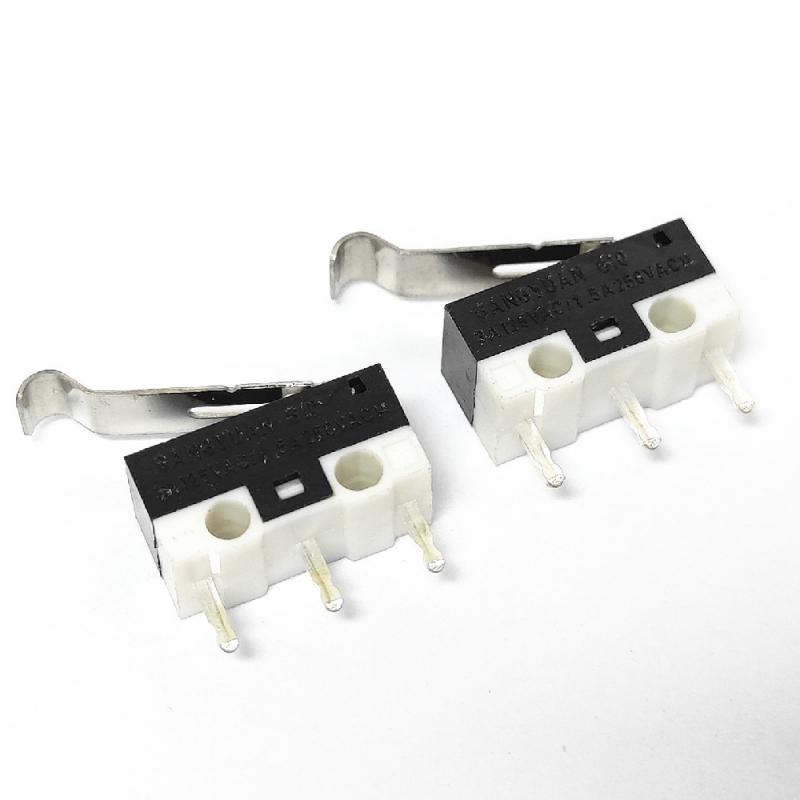

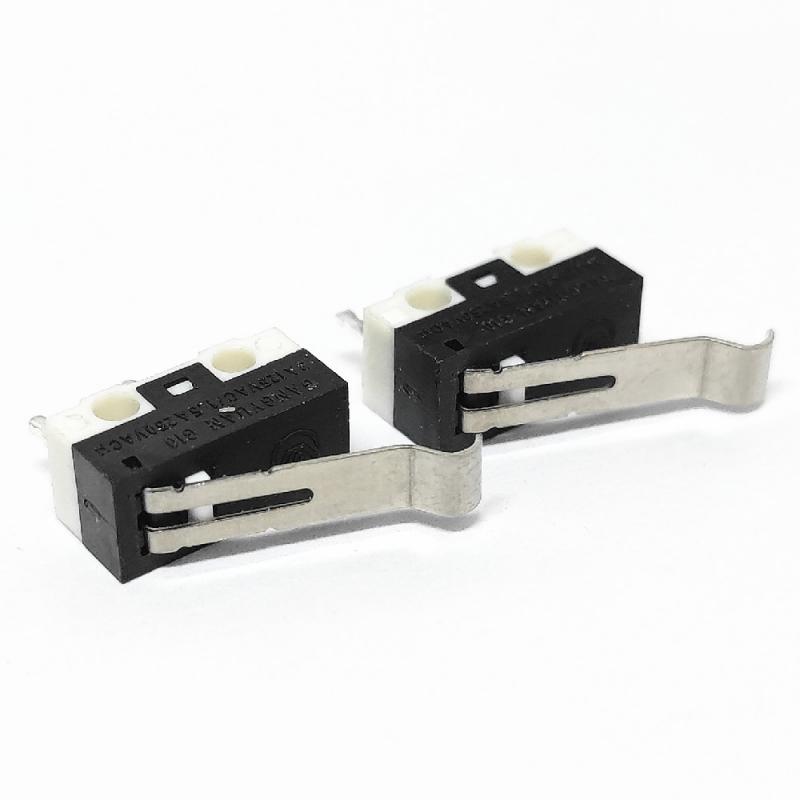

micro switch push button switch 3 pin 3A 125VAC mini light touch switch for mouse
Brand:
GangyuanItem NO.:
G10-3-11P-30-29Order(MOQ):
1000Payment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
Black and whiteShipping Port:
Ningbo/ShenzhenLead Time：
7-14 working days for paymentOutline (mm)
12.80mm x 6.60mmMounting Type
Through Holelllumination
Non-llluminatedIP Rating
IP4Xmicro limit switch momentary push button switch 3 pin long lever mouse micro switch
12.8*5.8mm dip micro switch
Feature
Operating Temperature Range: -25℃～+70℃
Voltage Rating: 125V ACCurrent Rating: 3A
Contact Resistance: ≤100mΩ
Insulation Resistance: ≥100MΩ
Soldering Temperature: 260±5℃ 5s
Operating Force: 30±15gf
Life Time(mating cycles): 10000 Cycles

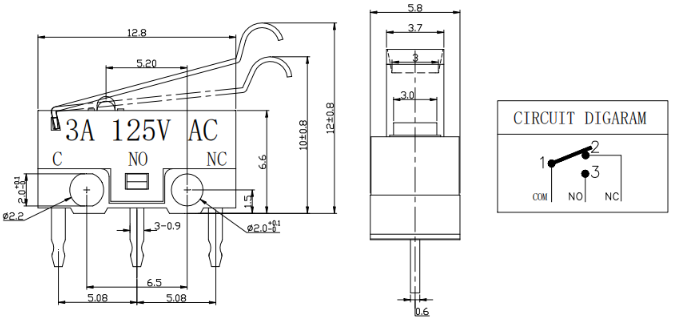

Drawing
How a micro switch works ?
Function of a micro switch have an actuator which, when depressed, lifts a lever to move the contacts into the required position.
Micro switches often make a “clicking” sound when pressed this informs the user of the actuation.
3 pin Micro switch widely used in electronic product equipment, communication equipment, military products, test instruments, gas water heaters,
small household appliances, floating ball equipment, medical equipment, power tools and general electrical and radio equipment, 24-hour timer, etc.
Micro switch types
G10 micro switch supplier/wholesale
right angle mouse micro switch long angle pin micro switch Solder terminal micro switch
with short straight arm
PCB dip micro switch micro switch with roller lever
