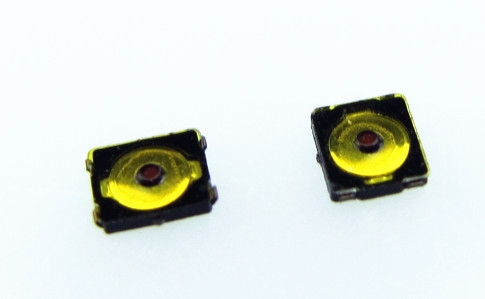

Home Switch Tactile switch 22 Series tact switch mini smd putton button tactile tact switch

mini smd putton button tactile tact switch

mini smd putton button tactile tact switch 4 pin momentary tact switch

  • Brand:

    Gangyuan
  • Item NO.:

    KAN2241-00601E0101
  • Order(MOQ):

    10pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black and yellow
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    14 working days for payment
  • Outline (mm)

    2.80mm x 2.40mm
  • Mounting Type

    Surface Mount
  • lllumination

    Non-llluminated
  • IP Rating

    IP4X
  • Product Detail


mini smd putton button tactile tact switch 4 pin momentary tact switch


Basic Information

Contact Rating

  Ratings: DC 12V  50mA(Max)

Contact Resistance

≤100mΩ

Insulation Resistance

≥100MΩ

Operating Force

    2±0.5N

Operation life

                     100,000 cycles


Dimension

tactile switch.jpg

Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact s

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

act Tactile Switch
