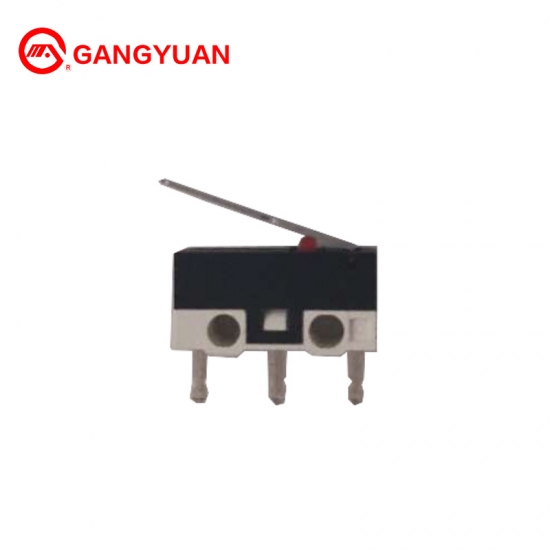

125/250vac 16a smd 3 pin push button mini micro switch for mous
Brand:
GangyuanItem NO.:
G10 seriesOrder(MOQ):
10pcsPayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
black and whiteShipping Port:
Ningbo/ShenzhenLead Time：
3 working days for paymentOutline (mm)
12.80mm x 6.60mmMounting Type
Through Holelllumination
Non-llluminatedIP Rating
IP4X
125/250vac 16a smd 3 pin push button mini micro switch for mous
Basic Information
Model Name:
G10 super mini Micro Switch
Model No.:
G10 series
Operating force:
customization, without handle 60-150gf.
Ratings:
3A 125VAC 1A 250VAC 2A 30VDC 0.1A 30VDC.
Contact resistance:
CR≤100mΩ.
Insulation resistance:
IR≥100MΩ.
Voltage resistance:
Between the non-connected terminals
AC600V 50/60Hz 1min.
Between the terminals and mental frame
AC1500V 50/60Hz 1min.
Mechanical Life:
120 cycles/min, beyond 1,000,000 cycles
Electrical Life:
30 cycles/min, beyond 10,000 cycles.
Protection Level:
IP40.
Operating Temperature:
Below 85%RH (+5℃--+35℃).
Operating humidity:
Below 85%RH (+5℃--+35℃).
Net weight of one piece:
About 0.6g without handle.
Features:
Type: Super mini, strong functions, durable using life
Certifications:
UL
Dimension
Tact Switch Using Attention
1．Please consult us when considering to wash tact switches2．Please don’t immerse soldering flux into tact s
3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board
4．The second welding should be done after switches return to normal temperature
Our advantage
1. Excellent R&D team, clients design requests are welcome.
2. Experience of more then
two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.
Application
Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
