double action dual tact switch

6.2mm rectangular side double action dual tact switch with bracket

Brand:
Gangyuan
Item NO.:
KAN6233-0601B
Order(MOQ):
50 pcs
Payment:
100% T/T Before Production
Product Origin:
Zhejiang, China (Mainland)
Color:
black and silver
Shipping Port:
Ningbo/Shenzhen
Lead Time：
3 Working Days after payment

Outline (mm)
19.00mm x 8.50mm
Mounting Type
Right Angle
lllumination
Non-llluminated
IP Rating
IP4X

Product Detail

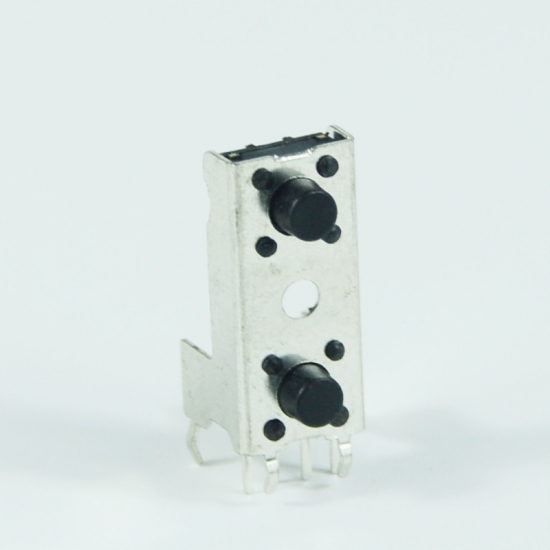

6.2mm rectangular side double action dual tact switch with bracket

Basic Information

Model Name:	DUAL tact switch
Model No.:	KAN6233-0601B
Dimension:	6.2x6.2x6mm
Operating force:	160gf±50gf
Operation Life	80000 cycles
DC rating:	12V DC, 50mA (effective value)
Full travel :	0.25±0.1mm

Dimension

dual tact switch.jpg double action tactile switch.jpg

four pole double throw 4pdt latching push button switch pcb.jpg tactile switches china.jpg

Tact Switch Using Attention

1．Please consult us when considering to wash tact switches

2．Please don’t immerse soldering flux into tact switches

3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4．The second welding should be done after switches return to normal temperature

Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.

Application

dual tact switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

act Tactile Switch
