Home Switch Micro switch micro limit switch

micro limit switch

factory hinge lever micro limit switch

  • Brand:

    Gangyuan
  • Item NO.:

    KW2-4-03N-40-2
  • Order(MOQ):

    10pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    14 working days for payment
  • Outline (mm)

    20.00mm x 10.00mm
  • Mounting Type

    Through Hole
  • lllumination

    Non-llluminated
  • IP Rating

    IP4X
  • Product Detail

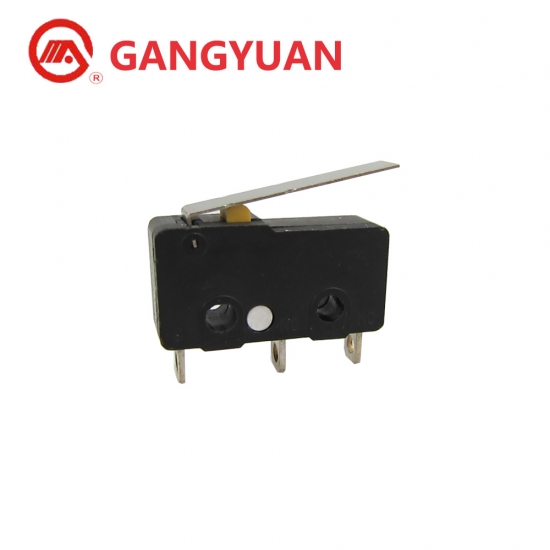

factory hinge lever micro limit switch


Basic Information

Model Name:

Micro Switch

Model No.:

KW2-4-03N-40-2

Dimension:

19.8x6mm

Operating Temperature

-25℃~85℃

Voltage Rating

125/250V AC

Operation Force

40±10gf

Life expectancy

1,000,000 cycles

Contact resistance

≤100mΩ


Dimension

micro switch company history.jpg


Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact s

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
