Wenzhou Gangyuan Electronics Co.,Ltd.

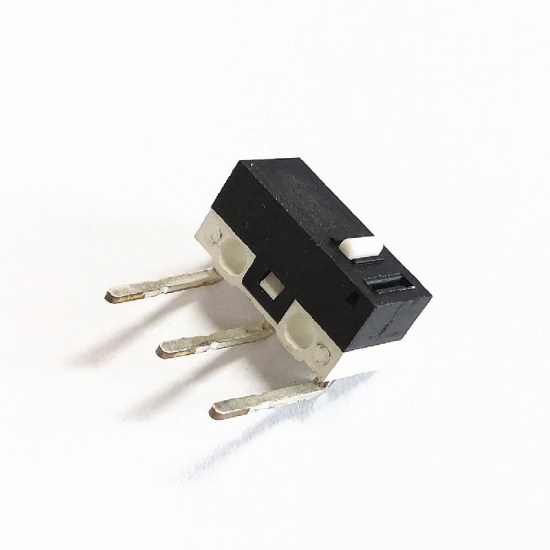

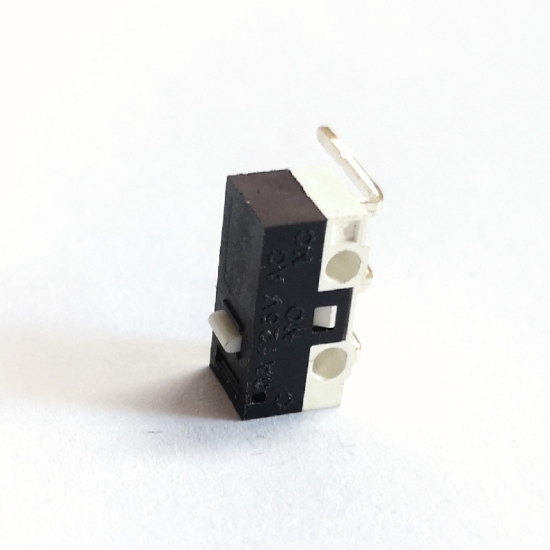

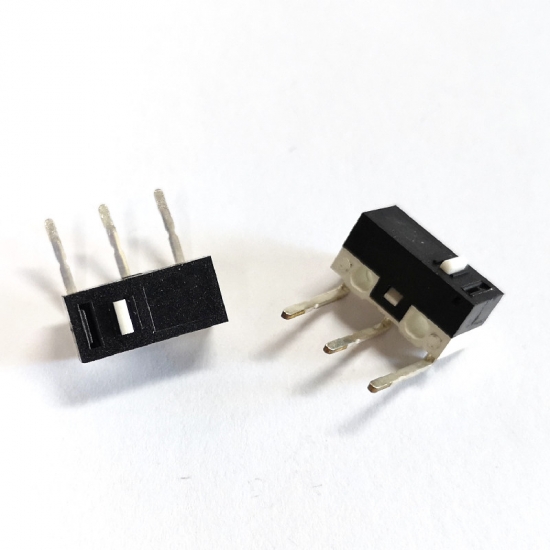

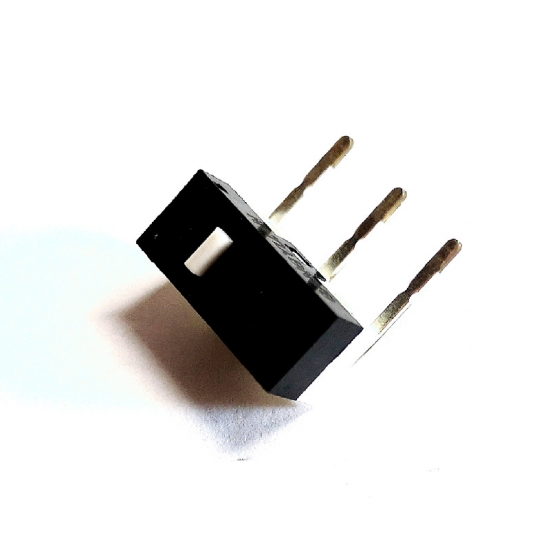

3 pin 6A 250V AC right angle miniature snap action joystick micros witch
Brand:
GangyuanItem NO.:
G10-3-00R-150-15Order(MOQ):
100pcsPayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
black and whiteShipping Port:
Ningbo/ShenzhenLead Time：
3 working days for paymentOutline (mm)
12.80mm x 6.60mmMounting Type
Right Anglelllumination
Non-llluminatedIP Rating
IP4X3 pin 3A 250V AC right angle miniature snap action joystick micros witch
Basic Information
Product name
Micro Switch
Rating
AC125V 3A
Contact resistance
≤100mΩ
Operating force
30±15gf
Life
10000 Cycles
Operating temperature
-25°C~+70°C
Insulation resistance
≥100MΩ

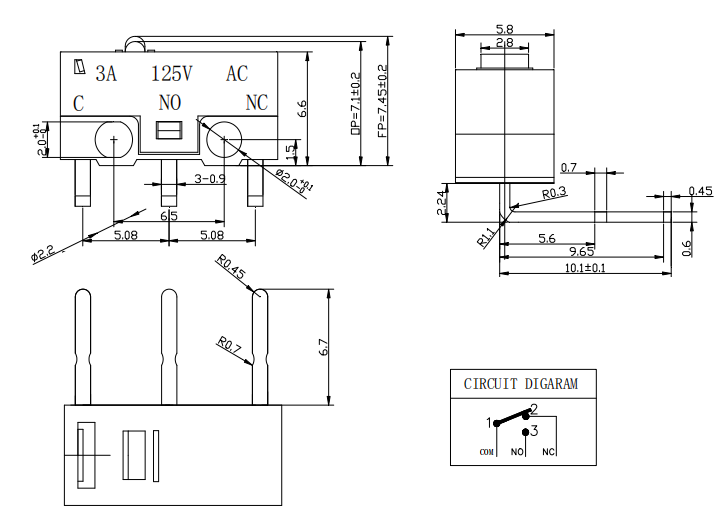

Dimension
Product features
1. Type: Right angle Micro switch
2. Circuit Code: SPDT
3. Lever Type: No lever
4. Electrical Rating: AC 125V 3A
Our advantage
1. The factory has more than 20 years of experience in the field of switch manufacturing.
2. Variety of categories. More than 2000 models.
3. Good quality. Using raw materials imported from Japan and South Korea.
More than 85% of product automated manufacturing coverage.
4. Excellent R&D team, clients design requests are welcome.
5. Two thousands invention patents and 47 utility model patents.
6. Assembly process in 100,000 grade dust-free workshop.
7. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.
8. After-sales service team. Global radiation multiple service outlets.
Application
Micro switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
FAQ
1. Q: Are you manufacture/ factory? Location?
A: Yes, three palnts located in Shenzhen , Zhejiang, Hubei province.
2. Q: Can I get free sample before placing an order ? MOQ?
A: Yes, free samples will get ready within 3~5 days. MOQ1,000pcs.
3. Q: What about the delivery time?
A: Stable delivery. 7-15 working days.
4. Q: What about terms of payment ?
A: T/T, L/C, Paypal, Cash etc.
5. Q: Can you customize products according to the design drawing?
A: We have independent R&D center in Shezhen, ODM/OME project is welcome.
6.Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
