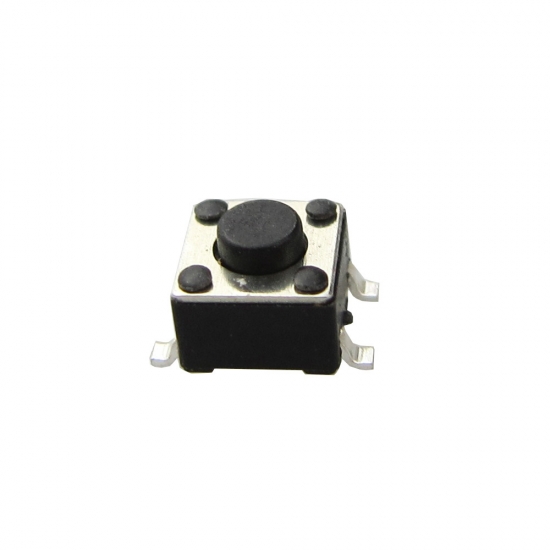

Gangyuan High quality 6x6 SMD Tact Switch

KAN0649: DC12v 50mA, 6x6mm, normally closed pcb tact switch.

Brand:
Gangyuan
Item NO.:
KAN0649
Order(MOQ):
1000
Payment:
T/T before shipment
Product Origin:
ZheJiang China
Color:
Black
Shipping Port:
Ningbo, Shenzhen
Lead Time：
5-7 working days depends on actual quan

Product Detail

Gangyuan High quality for all Eletronics 6x6 SMD Tact Switch

Basic Information

Temperature	-20℃to+70℃
Rating	50mA.12V DC
Insulation resistance	100mΩ min.100V DC
Insulation resistance	250V AC for 1 min
Contact resistance	100mΩ max
Travel	0.25±0.1m
Height	4.3/4.5/5.5/6.5/7/7.5/8/8.5/9/9.5/10/10.5/11/11.5/12/ 12.5/13/13.5/14/14.5/15/15.5/16/16.5/17/18/19/20/21mm
Operating Force	100gf/160gf/260gf

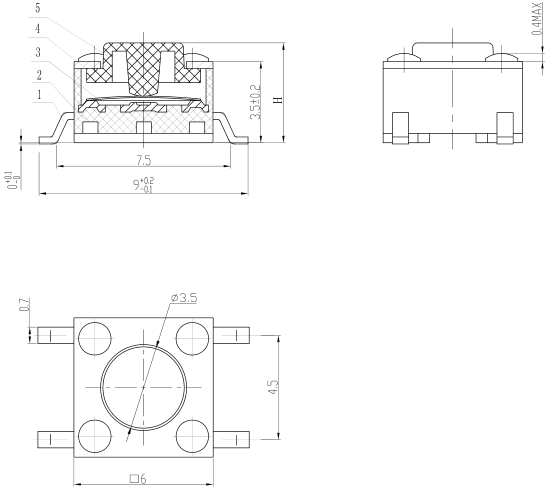

Dimension

Tact Switch Using Attention

1. Please be cautions not to give excessive static load or shock to switches.
2. Please be careful not to pile up P.W.B. after switches were soldered. Preservation under high temperature and high humidity or corrosive gas should be avoided Especially. When you need to preserve for a long period, do not open the carton.

Our advantage
1. Excellent R&D team, clients design requests are welcome.
2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.

Application

Our switches are widely used in the fields of small household products, communication equipment, energy generator, electric tools, table lamp, electric motor, electric motor car, electric toy, UPS, medical facilities, socket, etc.
