Gangyuan operation force 60-150gf G10 12v micro switches
Brand:
GangyuanItem NO.:
G10-3-08P-40-18Order(MOQ):
1000pcsPayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
black and whiteShipping Port:
Ningbo/ShenzhenLead Time：
7 Working Days after paymentOutline (mm)
12.80mm x 6.60mmMounting Type
Through Holelllumination
Non-llluminatedIP Rating
IP4XGangyuan operation force 60-150gf G10 12v micro switches
Basic Information
≥100MΩ
Product name
Micro Switch
Rating
3A 125V
Contact resistance
≤100mΩ
Operating force
40±20gf
Life
10000 cycles
Insulation Resistance
Soldering Temperature
260±5℃ 5s

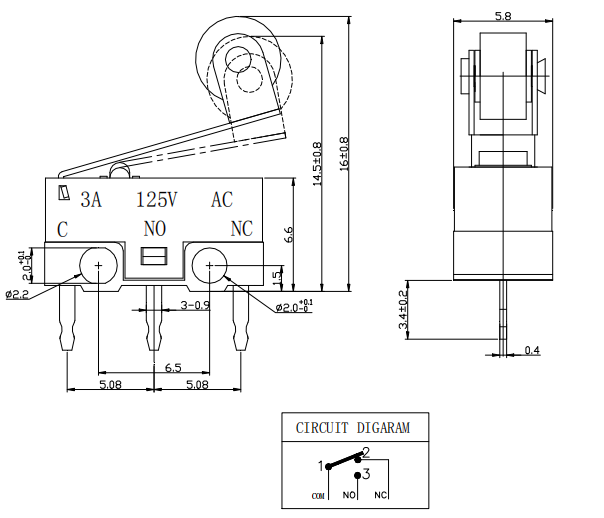

Dimension
Product features
1. Type: Super Micro switch
2. Circuit Code: SPDT
3. Lever Type: Roller lever
4. Electrical Rating: AC 125V 3A
5. Other rating: 1A 250VAC 2A 30VDC 0.1A 30VDC
Our advantage
1. The factory has more than 20 years of experience in the field of switch manufacturing.
2. Variety of categories. More than 2000 models.
3. Good quality. Using raw materials imported from Japan and South Korea.
More than 85% of product automated manufacturing coverage.
4. Excellent R&D team, clients design requests are welcome.
5. Two thousands invention patents and 47 utility model patents.
6. Assembly process in 100,000 grade dust-free workshop.
7. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.
8. After-sales service team. Global radiation multiple service outlets.
Application
Micro switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
FAQ
1. Q: Are you manufacture/ factory? Location?
A: Yes, three palnts located in Shenzhen , Zhejiang, Hubei province.
2. Q: Can I get free sample before placing an order ? MOQ?
A: Yes, free samples will get ready within 3~5 days. MOQ1,000pcs.
3. Q: What about the delivery time?
A: Stable delivery. 7-15 working days.
4. Q: What about terms of payment ?
A: T/T, L/C, Paypal, Cash etc.
5. Q: Can you customize products according to the design drawing?
A: We have independent R&D center in Shezhen, ODM/OME project is welcome.
6.Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
