Dc Power Jack Socket Connector

A DC power jack is responsible for receiving power and is usually mounted on the PCB or chassis of an electronic device. DC power receptacles are also intended to receive power but are instead found on the end of a power cord.

Brand:
Gangyuan
Item NO.:
DC-005-1-2.0
Order(MOQ):
500pcs
Payment:
100% T/T Before Production
Product Origin:
Zhejiang, China (Mainland)
Color:
Black
Shipping Port:
Ningbo/Shenzhen
Lead Time：
7-14 working days for payment

Outline (mm)
13.50mm x 9.00mm
Mounting Type
Through Hole
lllumination
Non-llluminated
IP Rating
No IP Rating

Product Detail

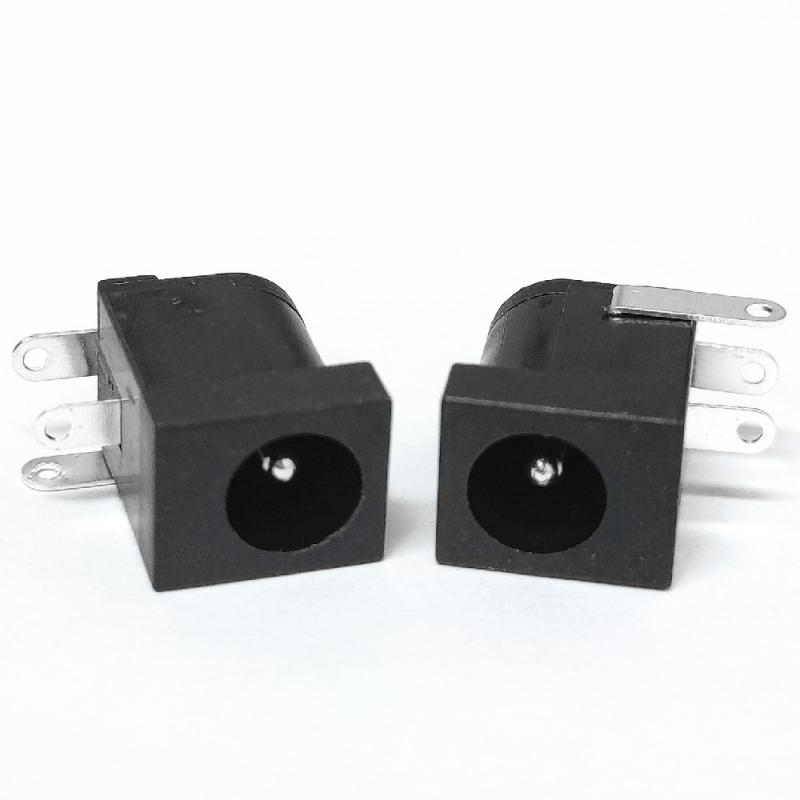

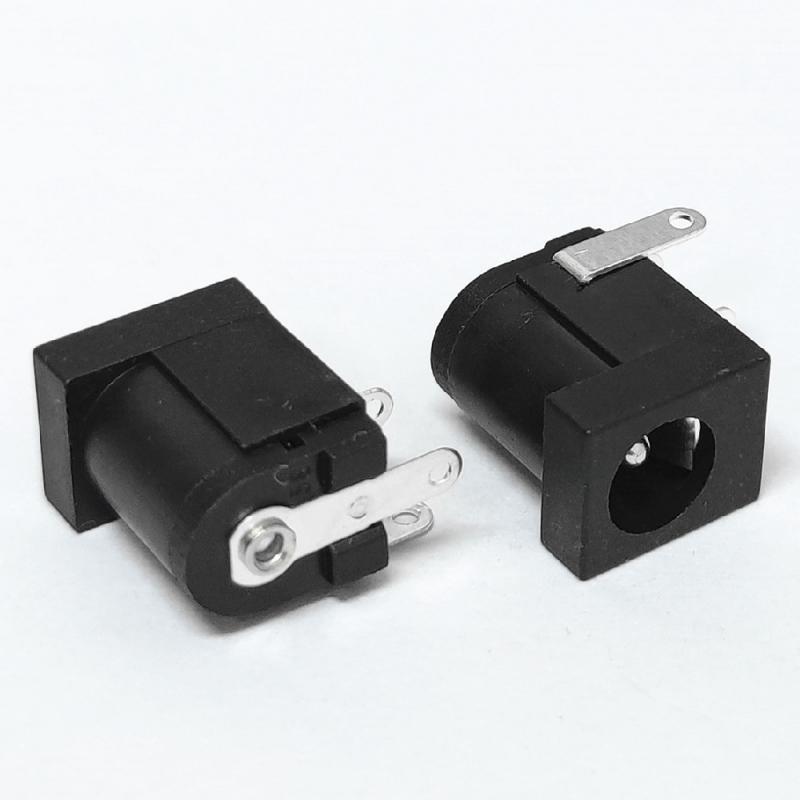

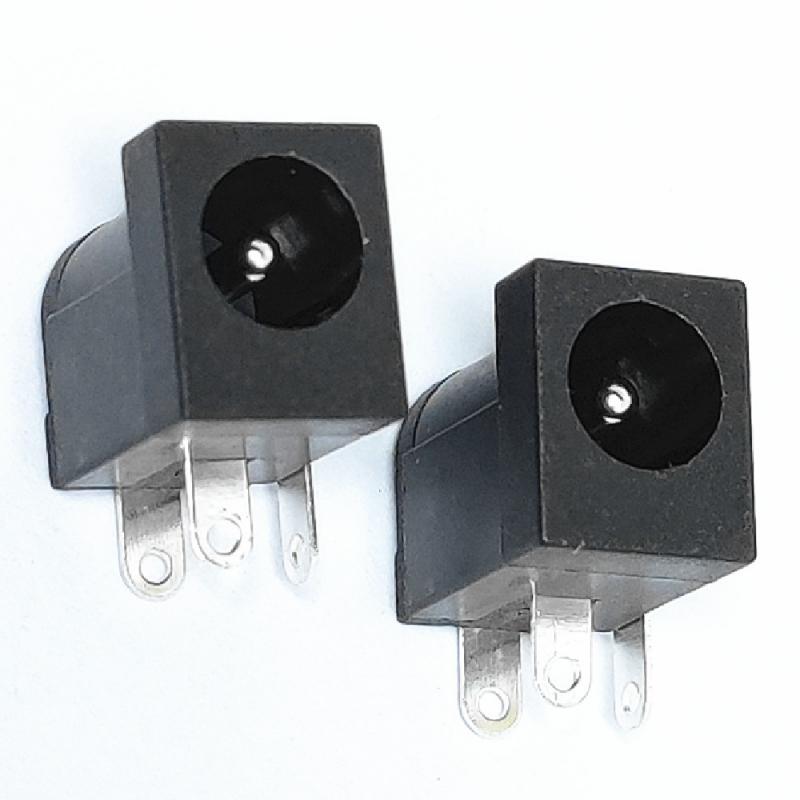

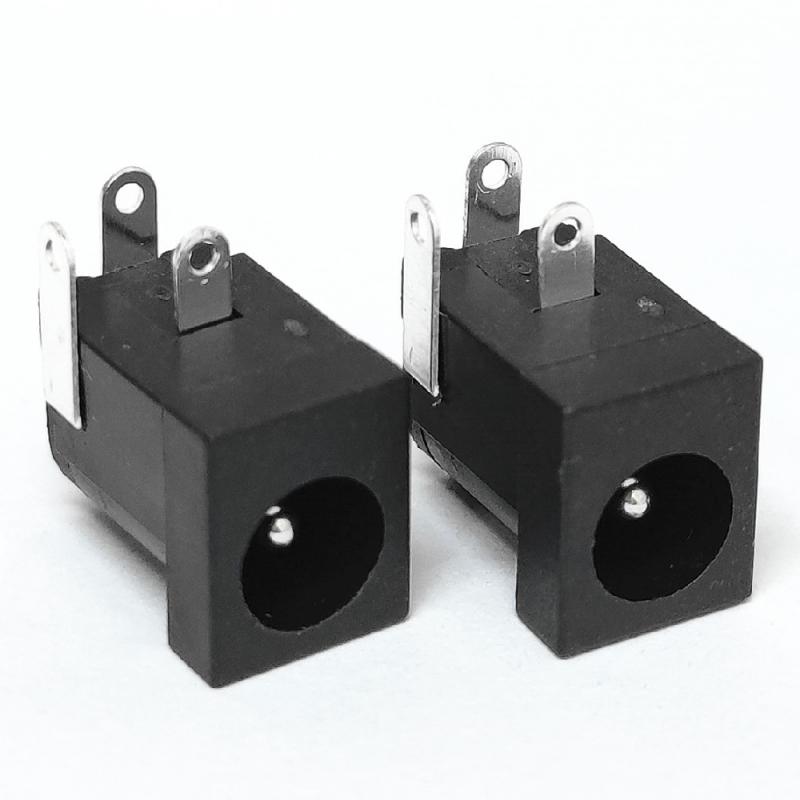

DC-005 2.1*5.5 2.1*5.5mm 3 terminal mini female DC Power Jack Connector

Specification

Type:Through Hole female dc power jack connector

Ratings:DC 30V 0.5A

Contact Resistance: ≤100mΩ

Insulation Resistance: ≥100MΩ

Insertion and extraction force: 3~20N

Operation Life: 5,000 cycles

Orientation: Horizontal

Inner Diameter: 2mm

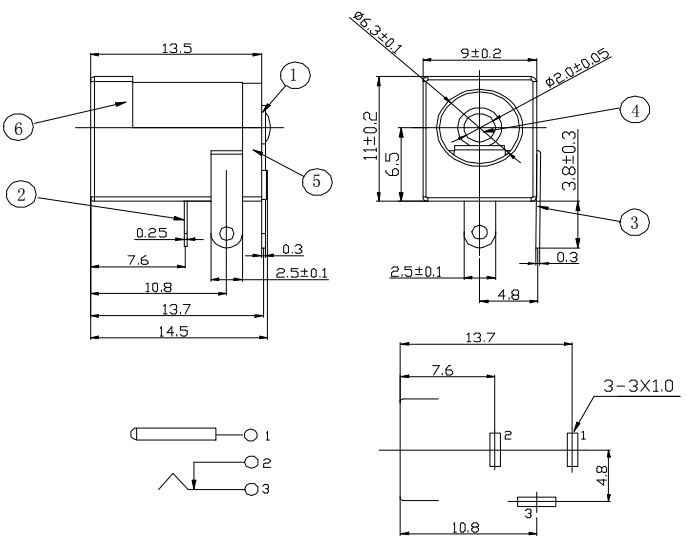

Dc power jack sizes

What are the different types of DC power ports ?

Common examples of DC connectors include barrel connectors, coaxial power connectors, audio connectors, power jacks, and USB connectors.

The development of DC connectors is closely tied to the development of electrical and electronic systems.

What is the difference between a DC plug and a DC jack ?
Jacks, Plugs, and Receptacles in Dc Power Applications

The jack typically receives power and is mounted in the appliance, either on a PCB or in the chassis.

The plug is most often located on the electrical cord and supplies power from the power supply.

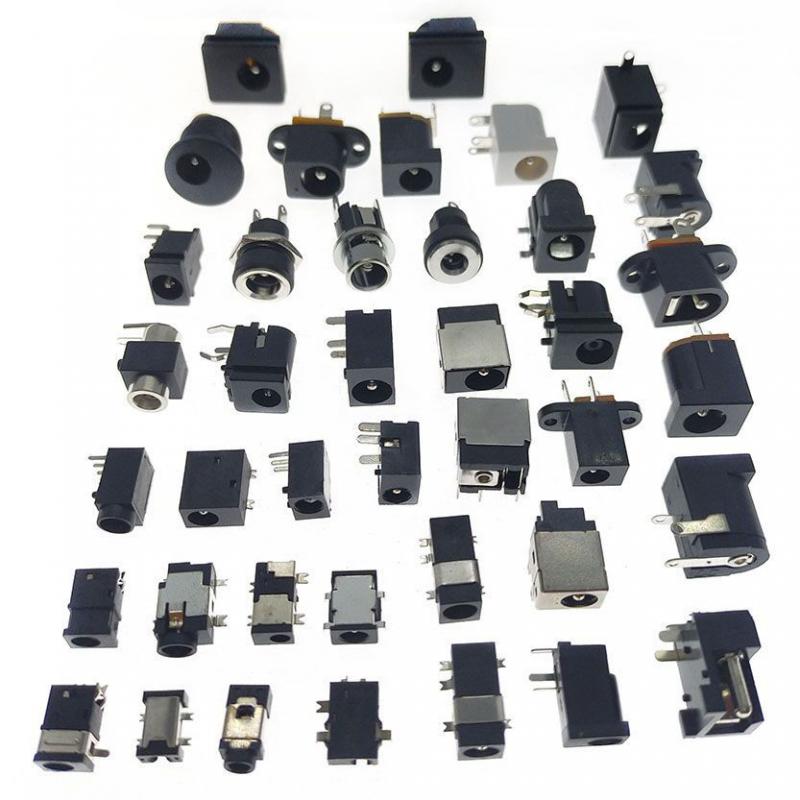

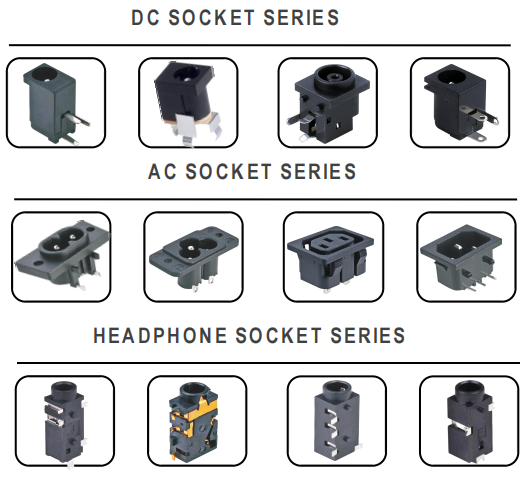

Types of DC Power Jack

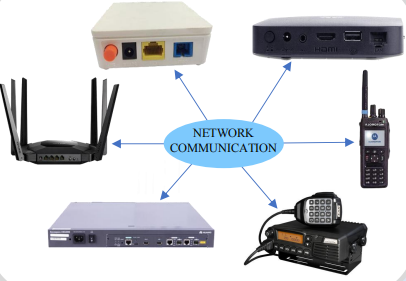

Dc power jack Application
