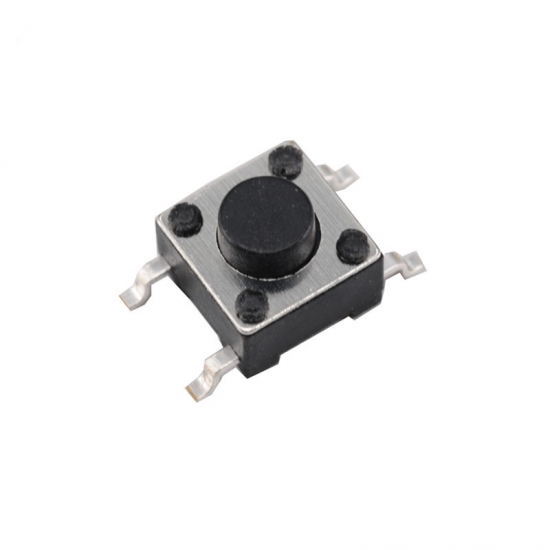

6x6 smd tact switch auto combination switch for all car entertainment navigation panel
Brand:
GangyuanItem NO.:
KAN0641Order(MOQ):
1000pcsPayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
silverShipping Port:
Ningbo/ShenzhenLead Time：
7 Working Days after paymentOutline (mm)
6.00mm x 6.00mmMounting Type
Surface Mountlllumination
Non-llluminatedIP Rating
IP4X
6x6 smd tact switch auto combination switch for all car entertainment navigation panel
use for wheel,Car entertainment / navigation,Window locking switch, Headlight control,size 7.2x7.2x4.3mm, more high quality automotive switches for car reading lamp, car entertainment, navigation, air conditioner controller, window locking switch, wheel, headlight control,Seat switch, contact us please.
Basic Information
|
Model Name: |
6x6 smd tact switch auto combination switch |
|
Model No.: |
KAN0641 |
|
Dimension: |
6x6xH (4.3-10)MM |
|
Operating force: |
100gf/160gf/260gf |
|
Life cycles: |
60,000/80,000/100.000 cycles |
| Return force: | 0.2N/0.4N/0.6N min |
|
Working tempreture: |
-20℃to+70℃ |
|
DC rating: |
50mA.12V DC |
|
Insulation resistance: |
100MΩ min.100V DC |
|
Dielectric strength: |
250V AC for 1 min |
|
Contact resistance: |
100m Ω max. |
|
Full travel : |
0.25±0.1mm |
Dimension
Tact Switch Using Attention
1．Please consult us when considering to wash tact switches2．Please don’t immerse soldering flux into tact switches
3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board
4．The second welding should be done after switches return to normal temperature
Our advantage
1. Excellent R&D team, clients design requests are welcome.
2. Experience of more then
two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.
Application
Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
