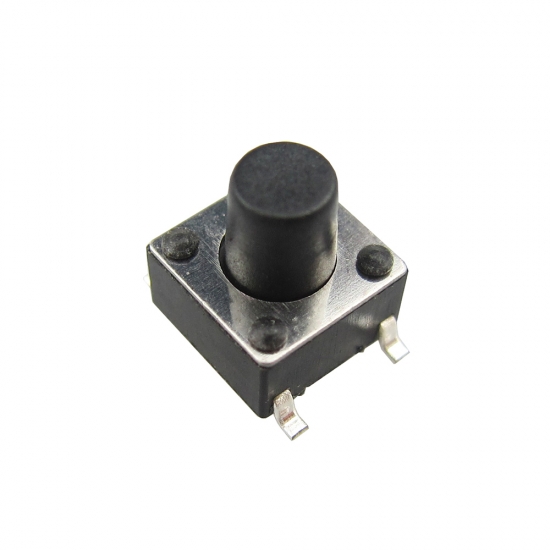

High Quality ROHS Approved 6x6 SMD Tact Switch 7mm High
Brand:
GangyuanItem NO.:
KAN0642-0701B0101-B4Order(MOQ):
1000pcsPayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
black and silverShipping Port:
Ningbo/ShenzhenLead Time：
7 Working Days after paymentOutline (mm)
6.00mm x 6.00mmMounting Type
Surface Mountlllumination
Non-llluminatedIP Rating
IP4XHigh Quality ROHS Approved 6x6 SMD Tact Switch 7mm High
micro tact switch smd 6x6mm ,The operating force of KAN00642 is 100gf/16gf/260gf±50gf, and the rated power is 12V 50mA. Different life cycles can be selected according to different requirements.
Basic Information
Brand
GANGYUAN (GYE)
Item NO.
KAN0642
Operating force
100gf/160gf/260gf±50gf
Rating
12V DC 50mA
Life cycles
60,000/80,000/100,000/1,000,000cycles
Travel
0.25mm±0.1mm
Contact resistance
50mΩ max
Insulation resistance
100mΩ min
Dielectric strength
250V AC for 1 min
Dimension
Tact Switch Using Attention
1．Please consult us when considering to wash tact switches2．Please don’t immerse soldering flux into tact switches
3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board
4．The second welding should be done after switches return to normal temperature
Our advantage
1. Excellent R&D team, clients design requests are welcome.
2. Experience of more then
two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.
Application
Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
