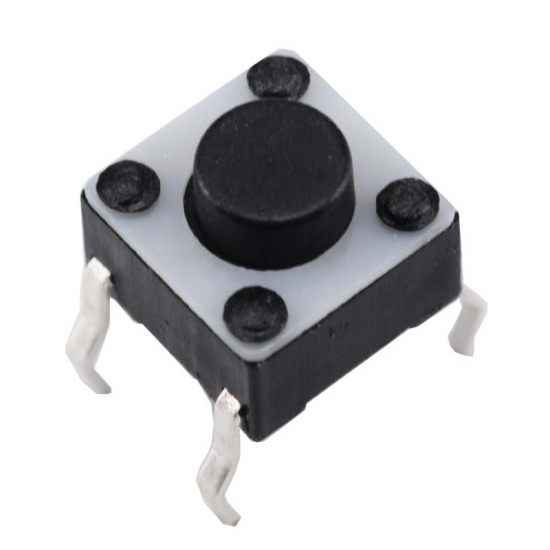

Manufacturer direct sale IP67 waterproof 6x6mm 4Pin tactile switch 12V
Brand:
GangyuanItem NO.:
KAN0611Order(MOQ):
50 pcsPayment:
T/TProduct Origin:
zhejiang/shenzhenColor:
blackShipping Port:
ningbo or shenzhenLead Time：
3 Working Days after paymentOutline (mm)
6.00mm x 6.00mmMounting Type
Through Holelllumination
Non-llluminatedIP Rating
IP4X
Manufacturer direct sale IP67 waterproof 6x6mm 4Pin tactile switch 12V
Basic Information
|
Model Name: |
4pin 6x6 tactile switch |
|
Model No.: |
KAN0611 series |
|
Dimension: |
6x6xH (4.3-18)mm |
|
Operating force: |
100gf/160gf/260gf |
|
Life cycles: |
100,000/200,000 Cycles |
|
Waterproof: |
IP67 grade |
|
Working tempreture: |
-20℃to+70℃ |
|
DC rating: |
0.05A.12V DC |
|
Insulation resistance: |
100MΩ min.100V DC |
|
Dielectric strength: |
250V AC for 1 min |
|
Contact resistance: |
100m Ω max. |
|
Full travel : |
0.25±0.1mm |
|
Passed test: |
Salt Mist/Solderability/Resistance to low temperature/Heat resistance/Change of temperature /Moisture resistance /Sulfuration Resistance etc |
| Certifications: | CE,ROHS, REACH, ENEC, |
| Features: |
High quality, durable using life |
Dimension
Tact Switch Using Attention
1．Please consult us when considering to wash tact switches2．Please don’t immerse soldering flux into tact switches
3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board
4．The second welding should be done after switches return to normal temperature
Our advantage
1. Excellent R&D team, clients design requests are welcome.
2. Experience of more then
two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.
Application
Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
