Wenzhou Gangyuan Electronics Co.,Ltd.
4pin smd 6x6 Tact switch with lock，for Audio and video products, Router, set-top boxes, communications products, white home appliances, black home appliances, small household appliances, security products: toys, office equipment, etc.
Brand:
GangyuanItem NO.:
KAN0611-1302BOrder(MOQ):
1000pcsPayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
Black and redShipping Port:
Ningbo/ShenzhenLead Time：

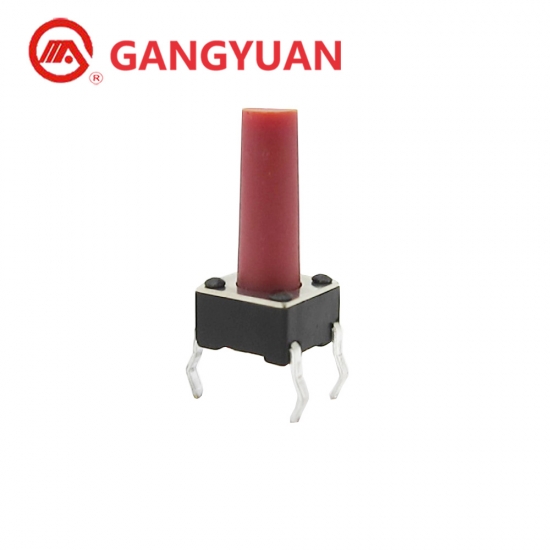

7 Working Days after payment4pin smd 6x6 Tact switch with lock
Product Description
|
Model Name: |
4pin 6x6 tact switch with lock |
|
Model No.: |
KAN0611-1302B |
|
Dimension: |
6x6xH 13mm (4.3-18)mm |
|
Operating force: |
100gf/160gf/260gf |
|
Life cycles: |
100,000/200,000 Cycles |
|
Waterproof: |
IP67 grade |
|
Working tempreture: |
-20℃to+70℃ |
|
DC rating: |
0.05A.12V DC |
|
Insulation resistance: |
100MΩ min.100V DC |
|
Dielectric strength: |
250V AC for 1 min |
|
Contact resistance: |
100m Ω max. |
|
Full travel : |
0.25±0.1mm |
|
Passed test: |
Salt Mist/Solderability/Resistance to low temperature/Heat resistance/Change of temperature /Moisture resistance /Sulfuration Resistance etc |
| Certifications: | CE,ROHS, REACH, ENEC, |
| Features: | High quality, durable using life |
  |
Previous:
12v DC Normally Closed push button Tact SwitchNext:
6x6 illuminated switch 5pin tact switch with led smd 12VIf you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
Categories
KAN0656: DC 12v 50mA, smd, water resistance type tact switch.
KAN0616: Dip switch, water resistance IP67, 6*6mm mini tact switch.
KAN0611: DC 12v 50mA, 6*6mm, 4 pins tact switch.
6x5.3mm Small 2 Pin Tactile Button Switch long terminal Tact Switch.
12V IP67 waterproof switch push button tact switch china, 4pin dip tact switch, 100,000/200,000 cycles for optional,use for Kitchen appliances, smart toilet covers. Small appliances, white electricity, black electricity require a variety of operational switches for waterproof construction.
This kind of switch is silent, often used in car industry.
Item: KAN0641 Size: 6*6*H (4.3-18mm) Rating: 12VDC 50mA Operating life: 60,000/ 80,000/ 100,000 cycles Operating force: 100gf, 160gf, 260gf MOQ: 1000
KAN0673: 6×6mm, side horizontal type tact switch.
