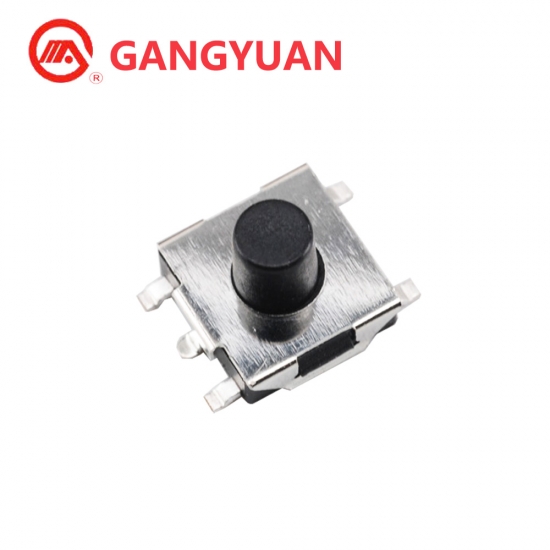

Good quality 6*6mm silicone button switch 4Pin smd tact switch
Brand:
GangyuanItem NO.:
KAN0644Order(MOQ):
50 pcsPayment:
T/TProduct Origin:
zhejiang/shenzhenColor:
black and silverShipping Port:
ningbo or shenzhenLead Time：
3 Working Days after paymentOutline (mm)
6.00mm x 6.00mmMounting Type
Surface Mountlllumination
Non-llluminatedIP Rating
IP4X
Good quality 6*6mm silicone button switch 4Pin smd tact switch
Basic Information
Attention:
1.Please be cautions not to give excessive static load or shock to switches.
2.Please be careful not to pile up P.W.B.after switch were soldered.
3.Preservation under high temperature and high humidity or corrosive gas should be avoided.
Especically,when you need to preserve for a long period,do not open the caerton.
4.Panasert RH ans RH6 Shall be used as the standard insert machine(use N type clinch)
5.Control hazardours substance:The switch should be meet SONY-SS-00259 specification.
Dimension
Tact Switch Using Attention
1．Please consult us when considering to wash tact switches2．Please don’t immerse soldering flux into tact switches
3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board
4．The second welding should be done after switches return to normal temperature
Our advantage
1. Excellent R&D team, clients design requests are welcome.
2. Experience of more then
two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.
Application
Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
