These small sized switches are placed on PCBs and are used to close an electrical circuit when the button is pressed by a person. When the button is pressed, the switches turn ON and when the button is released, the switches turn OFF.
Brand:
GangyuanItem NO.:
KAN0542-0301F1001Order(MOQ):
100PCSPayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
yellowShipping Port:
Ningbo/ShenzhenLead Time：
7-14 working days for paymentOutline (mm)
5.20mm x 5.20mmMounting Type
Surface Mountlllumination
Non-llluminatedIP Rating
IP4Xfactory 6x6 yellow button smd momentary tact switches
Basic Information
Product type
Tact switch
Rating
DC12V 50mA
Contact resistance
100mΩ Max
Insulation resistance
100MΩ Min
Operating force
70gf
Life
500000 cycles
Operating temperature range
-30℃~+80℃

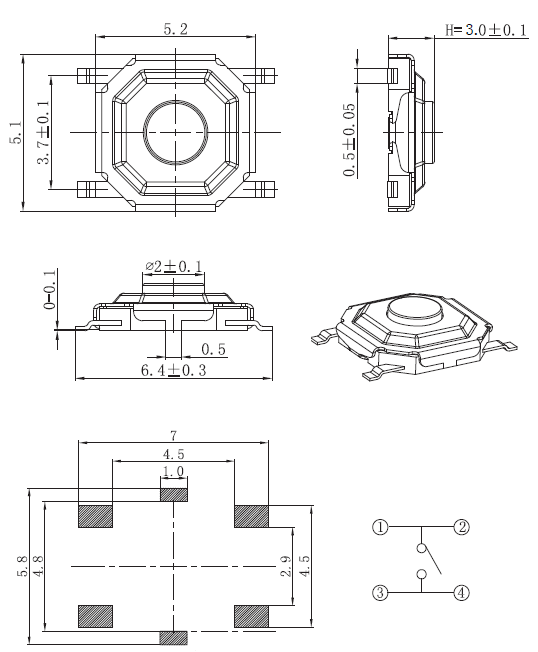

Dimension
Tact Switch Using Attention
2．Please don’t immerse soldering flux into tact switch
3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board
4．The second welding should be done after switches return to normal temperature
Our advantage
1. The factory has more than 20 years of experience in the field of switch manufacturing.
2. Variety of categories. More than 2000 models.
3. Good quality. Using raw materials imported from Japan and South Korea.
More than 85% of product automated manufacturing coverage.
4. Excellent R&D team, clients design requests are welcome.
5. Two thousands invention patents and 47 utility model patents.
6. Assembly process in 100,000 grade dust-free workshop.
7. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.
8. After-sales service team. Global radiation multiple service outlets.
Application
Tact switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
FAQ
1. Q: Are you manufacture/ factory? Location?
A: Yes, three palnts located in Shenzhen , Zhejiang, Hubei province.
2. Q: Can I get free sample before placing an order ? MOQ?
A: Yes, free samples will get ready within 3~5 days. About tact switch, MOQ is 1,000pcs.
3. Q: What about the delivery time?
A: Stable delivery. 7-15 working days.
4. Q: What about terms of payment ?
A: T/T, L/C, Paypal, Cash etc.
5. Q: Can you customize products according to the design drawing?
A: We have independent R&D center in Shezhen, ODM/OME project is welcome.
6.Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
