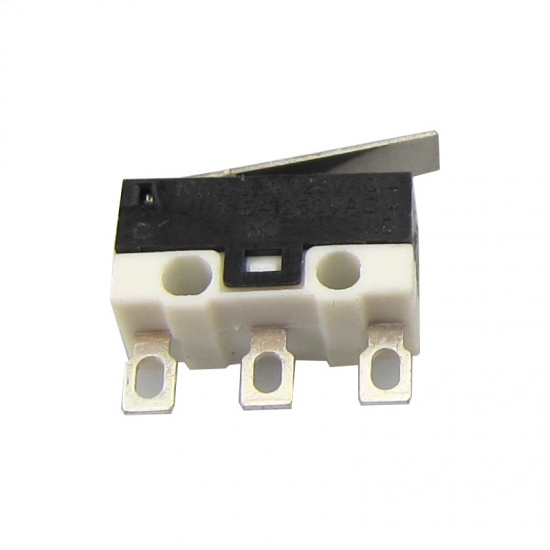

KW3-02P-30 SPDT 3A 125V Renew Micro Switch With 3 Pins
Brand:
GangyuanItem NO.:
KW3-02P-30Order(MOQ):
1000pcsPayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
black and whiteShipping Port:
Ningbo/ShenzhenLead Time：
7 Working Days after paymentOutline (mm)
12.80mm x 6.60mmMounting Type
Through Holelllumination
Non-llluminatedIP Rating
IP4X
KW3-02P-30 SPDT 3A 125V Renew Micro Switch With 3 Pins
Electricity equipment & supplise SPDT micro switch a saldare 3 pin, highest voltage 125V, highest current 3A, operating force 30±15gf, under temperature -25℃~+85℃ good operation, this product by the real manufacturers research and development production, quality assurance, stable delivery, hot sales in Europe, the United States, South Africa.
Basic Information
|
Racting
|
3A 125VAC |
Voltage |
DC 12V-14V |
|
Contact Resistance |
≤500mΩ |
Insulation Resistance |
≥100MΩ |
|
Dielectric Withstanding Voltage |
500V AC 1Min |
Soldering Temperature |
235±5cc 5s |
|
Operating Force |
30±15gf |
Life Time |
10000 Cycles |
Dimension
Tact Switch Using Attention
1．Please consult us when considering to wash tact switches2．Please don’t immerse soldering flux into tact switches
3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board
4．The second welding should be done after switches return to normal temperature
Our advantage
1. Excellent R&D team, clients design requests are welcome.
2. Experience of more then
two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.
Application
Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
