Wenzhou Gangyuan Electronics Co.,Ltd.

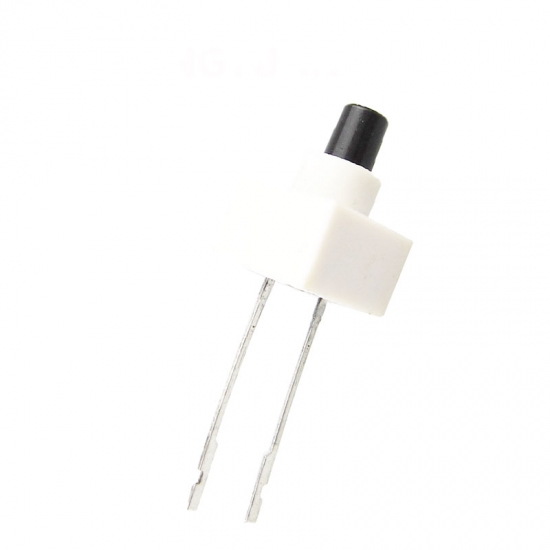

6x6mm 2 pin small light tact switch waterproof 12v
Brand:
GangyuanItem NO.:
KAN0651F2Order(MOQ):
1000pcsPayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
black and whiteShipping Port:
Ningbo/ShenzhenLead Time：
7 Working Days after payment
Product Description:
|
Model Name: |

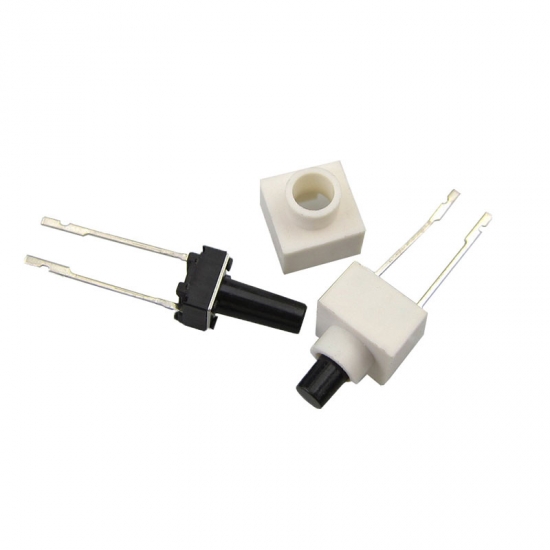

6x6mm 2pin tact switch with shell |
|
Model No.: |
KAN0651F2 |
|
Dimension: |
6x6xH |
|
Operating force: |
100±30gf /160±50gf /260±50gf |
|
Life cycles: |
100,000/80000/60000 Cycles |
|
Working tempreture: |
-20℃to+70℃ |
|
DC rating: |
10mA 5VDC |
|
Insulation resistance: |
100MΩ min.100V DC |
|
Dielectric strength: |
250V AC for 1 min |
|
Contact resistance: |
100m Ω max. |
|
Full travel : |
0.25±0.1mm |
|
Passed test: |
Salt Mist/Solderability/Resistance to low temperature/Heat resistance/Change of temperature /Moisture resistance /Sulfuration Resistance etc |
|
Certifications: |
CE,ROHS, REACH, ENEC, |
|
Features: |
High quality, durable using life,with protective shell |
Dimension:
Previous:
latching on/off tact switch 12VNext:
6x6mm automotive tact switchIf you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
