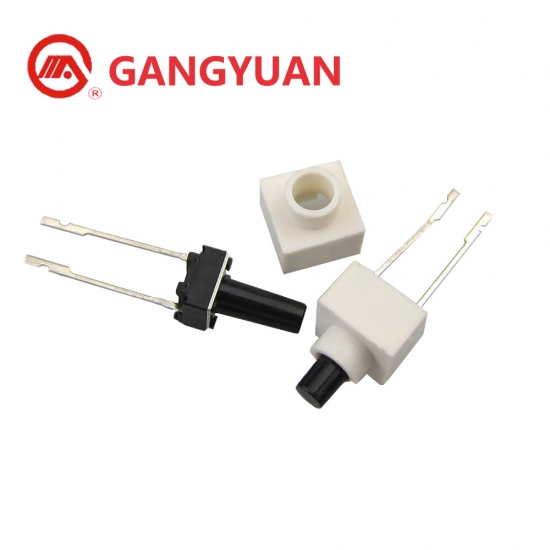

Protective Shell 2 Long pins durable using life tact switch
Brand:
GangyuanItem NO.:
KAN0651F2Order(MOQ):
10pcsPayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
black and whiteShipping Port:
Ningbo/ShenzhenLead Time：
3 working days for paymentOutline (mm)
6.00mm x 6.00mmMounting Type
Through Holelllumination
Non-llluminatedIP Rating
IP4X
Protective Shell 2 Long pins durable using life tact switch
Basic Information
|
Model Name: |
6x6mm 2pin tact switch with shell |
|
Model No.: |
KAN0651F2 |
|
Dimension: |
6x6xH |
|
Operating force: |
100±30gf /160±50gf /260±50gf |
|
Life cycles: |
100,000/80000/60000 Cycles |
|
Working tempreture: |
-20℃to+70℃ |
|
DC rating: |
10mA 5VDC |
|
Insulation resistance: |
100MΩ min.100V DC |
|
Dielectric strength: |
250V AC for 1 min |
|
Contact resistance: |
100m Ω max. |
|
Full travel : |
0.25±0.1mm |
|
Passed test: |
Salt Mist/Solderability/Resistance to low temperature/Heat resistance/Change of temperature /Moisture resistance /Sulfuration Resistance etc |
|
Certifications: |
CE,ROHS, REACH, ENEC, |
|
Features: |
High quality, durable using life,with protective shell |
Dimension
Tact Switch Using Attention
1．Please consult us when considering to wash tact switches2．Please don’t immerse soldering flux into tact switches
3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board
4．The second welding should be done after switches return to normal temperature
Our advantage
1. Excellent R&D team, clients design requests are welcome.
2. Experience of more then
two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.
Application
Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
