Wenzhou Gangyuan Electronics Co.,Ltd.
5a 250vac push button micro switch12V
Brand:
GangyuanItem NO.:
DM1-04PW-30-3Order(MOQ):
1000pcsPayment:
T/T before shipmentProduct Origin:
ChinaColor:
black and whiteShipping Port:
Ningbo/ShenzhenLead Time：
7Working Days after paymentOutline (mm)
12.80mm x 6.60mmMounting Type
Through Holelllumination
Non-llluminatedIP Rating
IP4X12.8*5.8 Mini micro limit switch micro switch
Product Description:
|
Model Name: |
Micro Switch |
|
Model No.: |
DMI-04pw-30-3 |
|
Dimension: |
12.8mm*5.8mm |
|
Operating force: |
80±15gf -180±15gf |
|
Operating temperature: |
-25°C+85°C |
|
Mechanical life: |
500,000 Cycles |
|
Rated load: |
AC 125V 1A |
|
Insulation resistance: |
AC 500V 1Minute |
|
Withstand voltage: |
250V AC / 1 min |
|
Contact resistance: |
≤100mΩ |
|
Features: |
Type: Small fretting Features: curved handle Customized selection: AC 125V 3A |

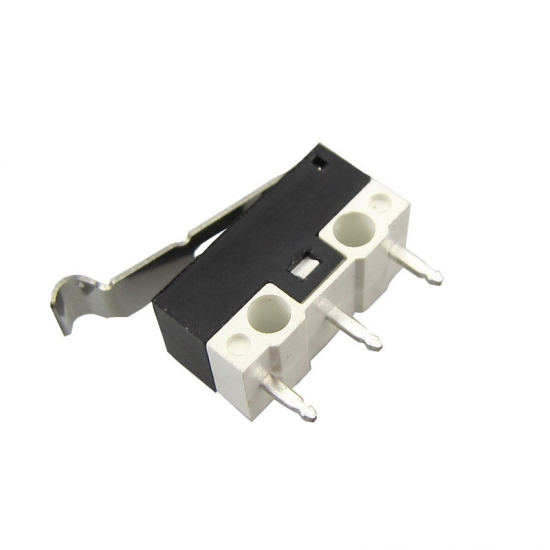

Products Photos:
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
Categories
It is widely used in electronic products,instrument measuring appliance and domestic electric appliances and so on.
12.8mm*5.8mm left and right terminal connect Micro switch.
12.8mm*5.8mm long terminal connect Micro switch micro switch.
Product model: DMI-02CWL-30-3 Specification: 12.8mm*5.8mm Operating force: 80±15gf -180±15gf Features: left and right feet MOQ: 1000
DMI-02PWL8.5--3: 1A 125VAC, 80±150gf, 5e4 mini micro switch.
G10-3-01S: 125/250V AC 4A, 200±15gf, 50,000cycles mini micro switch.
DM1-02CWL-30-3: 3 Pin Long Roller Action Micro Switch.
12.8mm*5.8mm Long Terminal Connect 3 pin Micro Switch
