There are other dimension and various types micro switch for customer choice.
Brand:
GangyuanItem NO.:
G15-10DN01-40-1209Payment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
BlackShipping Port:
Ningbo/ShenzhenLead Time：
7-14 Working Days For PaymentOutline (mm)
20.00mm x 10.00mmMounting Type
Through Holelllumination
Non-llluminatedIP Rating

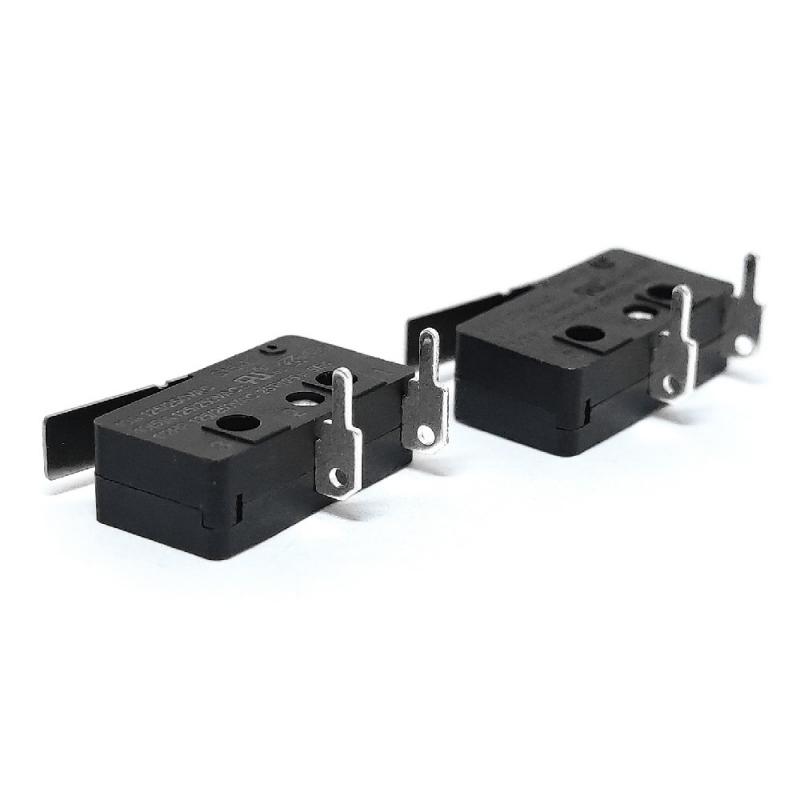

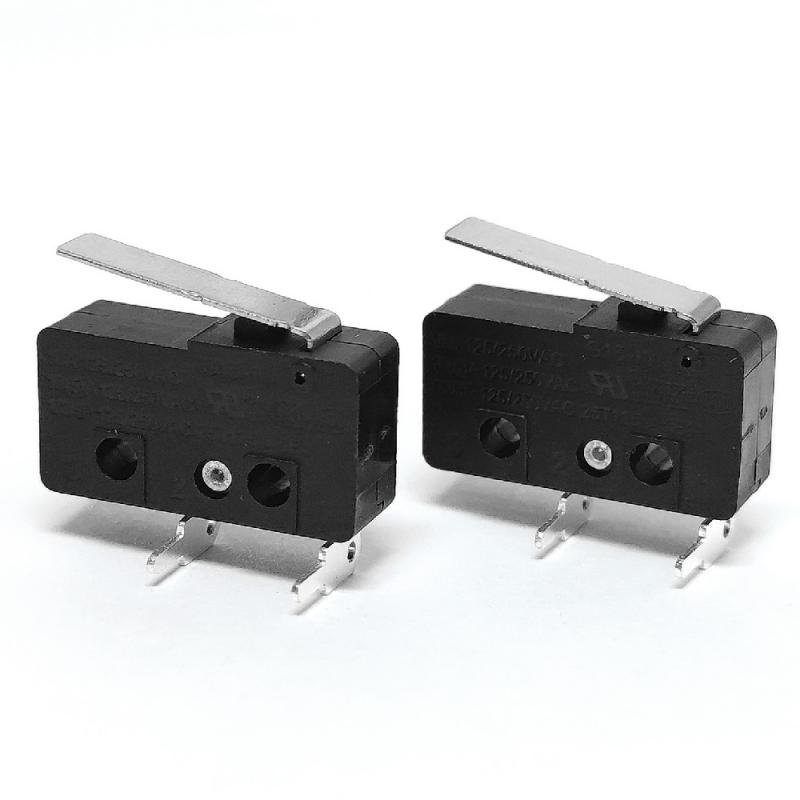

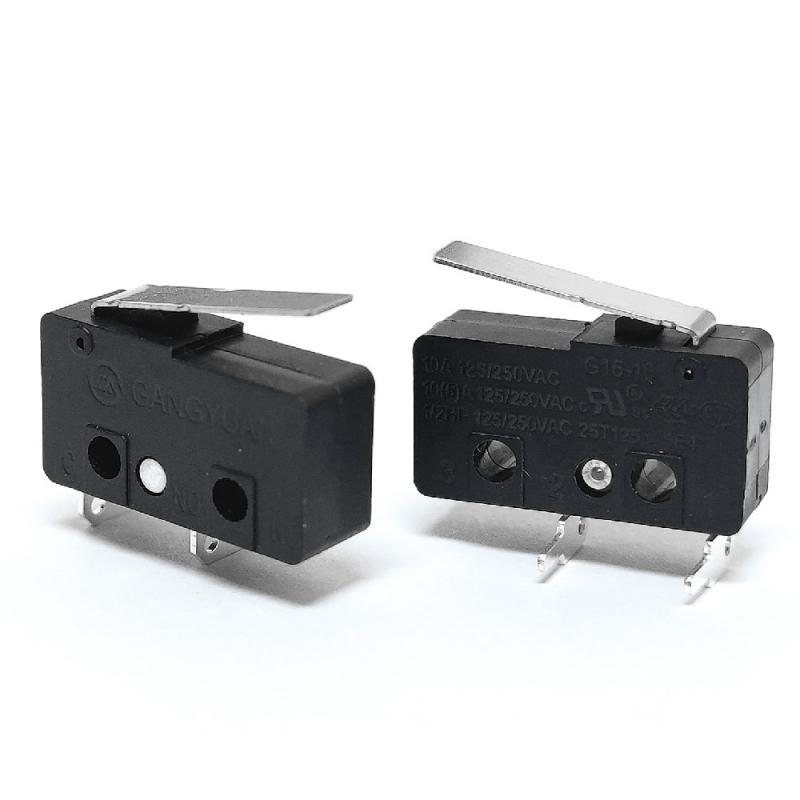

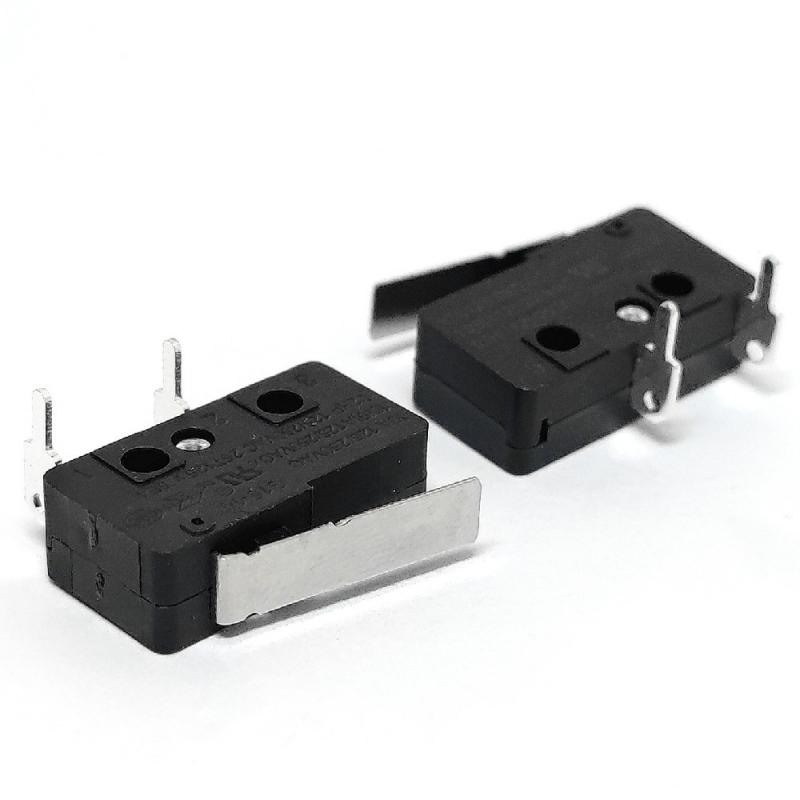

IP4X19.8*10.7*6.5 SPST-NO electronic micro switch
Push buttom micro switch lever micro siwtch
Parameter
Micro switch Company
Contact Resistance: 100mΩ Max
Insulation Resistance: 100MΩ Min
Operating Force: 40±20gf
Return Force: 10gf Min
Operation Position: 12.2±1.0mm
Pre Travels: 3.2mm Max
Mechanical Life: 100,000 cycles
Electronics Life: 10,000 cycles

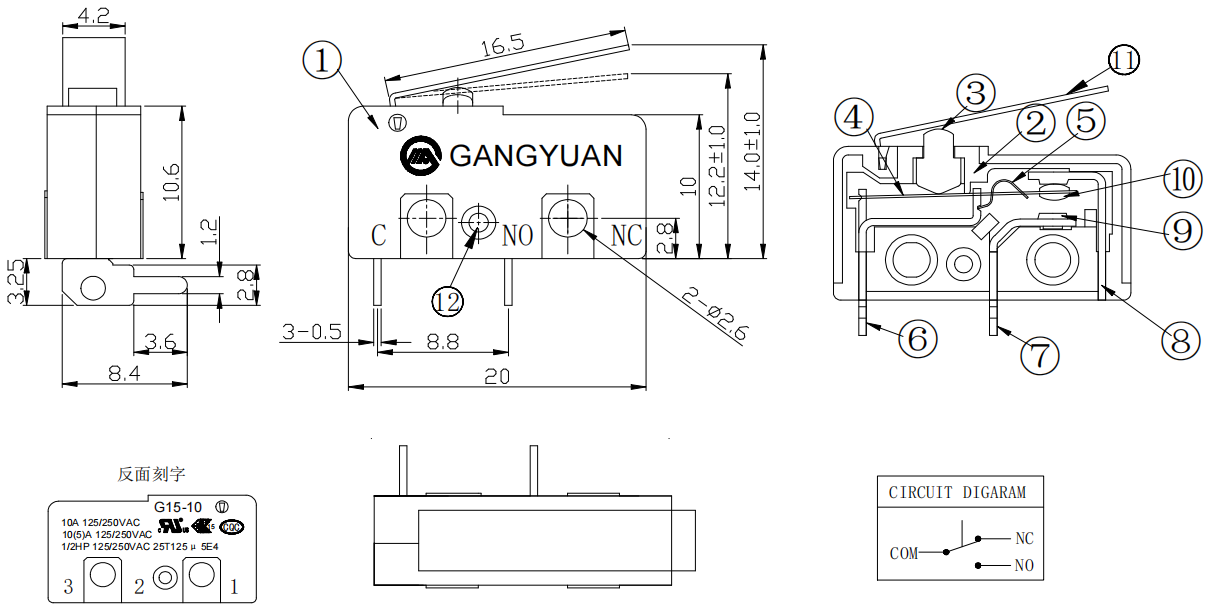

Drawing
Construction of a micro switch
Previous:
5e4t125 micro switch factoryNext:
10A micro switch push buttonIf you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
