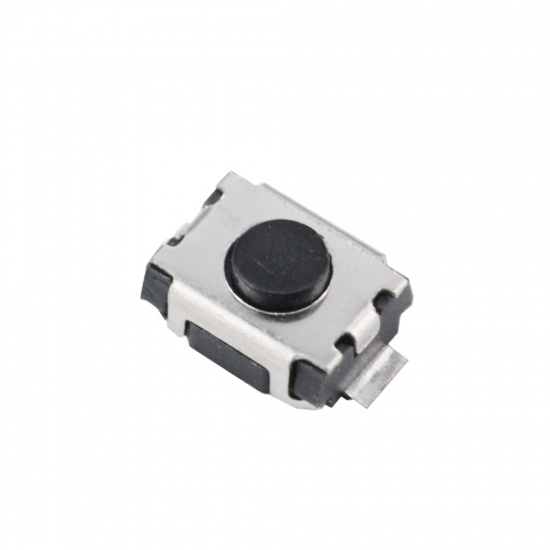

wholesale push button smd tactile switch

KAN0444: DC 12v 50mA, 4*4mm, smd tactile switch.

Brand:
Gangyuan
Item NO.:
KAN0444
Order(MOQ):
1000
Payment:
T/T, Paypal
Product Origin:
China
Color:
Black
Shipping Port:
Ningbo/ Shenzhen port
Lead Time：
5-7 working days

Outline (mm)
3.90mm x 2.90mm
Mounting Type
Surface Mount
lllumination
Non-llluminated
IP Rating
IP4X

Product Detail

wholesale push button smd tactile switch

Basic Information

P/N	KAN0444
Dimension	3*4mm
Rating current	12VDC 50mA
Operating force	100gf/160gf/260gf
Life cycles	100,000cycles
Travel	0.25±0.1mm

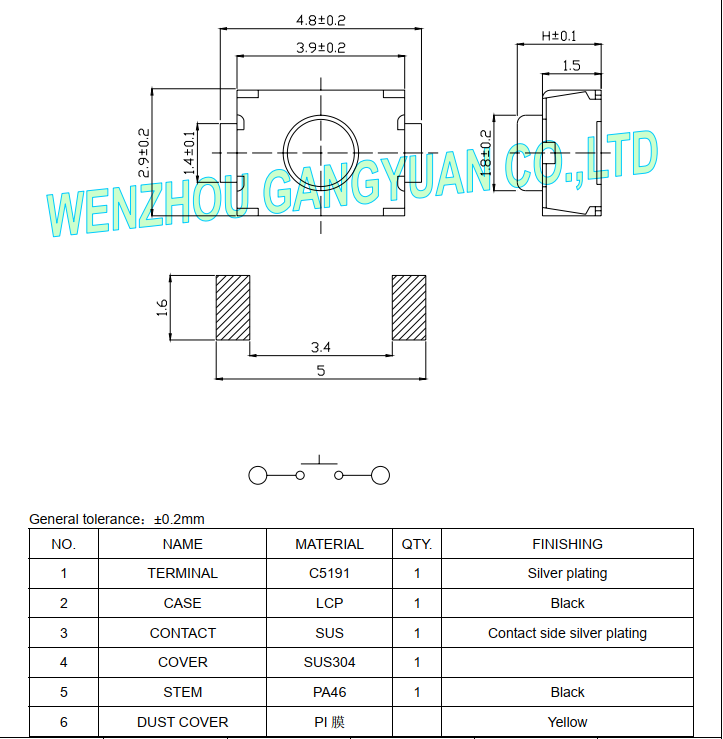

Dimension

Tact Switch Using Attention

1．Please consult us when considering to wash tact switches
2．Please don’t immerse soldering flux into tact switches
3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board
4．The second welding should be done after switches return to normal temperature

Our advantage
1. Excellent R&D team, clients design requests are welcome.
2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.

Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
