tact switch with metal bracket

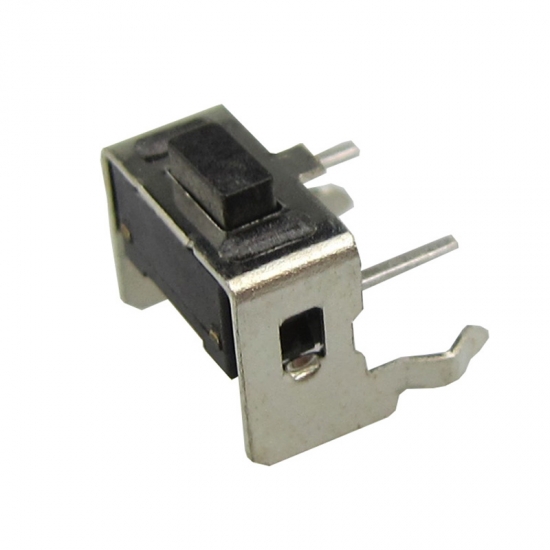

6x3.5mm right angle 2 pin push button tact switch with metal bracket

Brand:
Gangyuan
Item NO.:
KAN3531
Order(MOQ):
50 pcs
Payment:
T/T
Product Origin:
zhejiang/shenzhen
Color:
black
Shipping Port:
ningbo or shenzhen
Lead Time：
3 Working Days after payment

Outline (mm)
7.40mm x 3.50mm
Mounting Type
Right Angle
lllumination
Non-llluminated
IP Rating
IP4X

Product Detail

6x3.5mm right angle 2 pin push button tact switch with metal bracket

Basic Information

Product name	Tact Switch
Operation force	100gf/160gf/260gf
Full travel	0.25±0.1mm
Return force	≥0.6N
Heat resistance	80±2℃
Sulfuration resistance	72h,40±2℃
Salt Mist	8h±1h,35℃±2℃
Operation life	30,000 circles

Dimension

pcb tactile switch spst datasheetpcb tactile switch spst datasheet.jpg

Tact Switch Using Attention

1．Please consult us when considering to wash tact switches

2．Please don’t immerse soldering flux into tact switches

3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4．The second welding should be done after switches return to normal temperature

Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.

Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

act Tactile Switch
