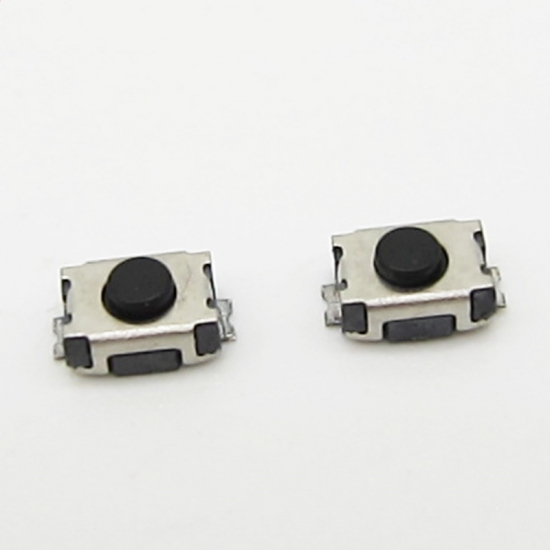

Tact Switch SMD Switch for Automotive

2019 Hot Sale 4*3mm Momentary Tact Switch SMD Switch for Automotive

Brand:
Gangyuan
Item NO.:
KAN0444
Order(MOQ):
1000pcs
Payment:
100% T/T Before Production
Product Origin:
Zhejiang, China (Mainland)
Color:
silver
Shipping Port:
Ningbo/Shenzhen
Lead Time：
7 Working Days after payment

Outline (mm)
3.90mm x 2.90mm
Mounting Type
Surface Mount
lllumination
Non-llluminated
IP Rating
IP4X

Product Detail

2019 Hot Sale 4*3mm Momentary Tact Switch SMD Switch for Automotive

Basic Information

Product name	SMD Tactile Switch
Operation force	1.6N
Full travel	0.25±0.1mm
Return force	0.4N MIN
low resistance	-30±2℃,96h
Heat resistance	80±2℃,96h
Sulfuration resistance	72h,40±2℃
Salt Mist	8h±1h,35℃±2℃
Operation life	100,000 cycles

Dimension

4mm Tact Switch.jpg

2 pin tact switches.jpg

Tact Switch Using Attention

1．Please consult us when considering to wash tact switches

2．Please don’t immerse soldering flux into tact switches

3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4．The second welding should be done after switches return to normal temperature

Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.

Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

act Tactile Switch
