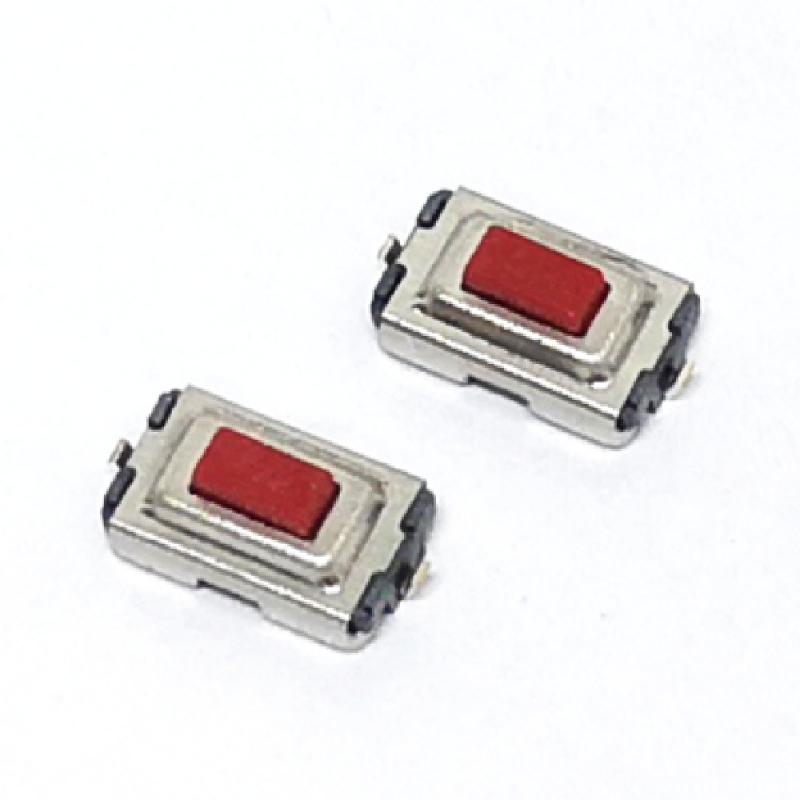

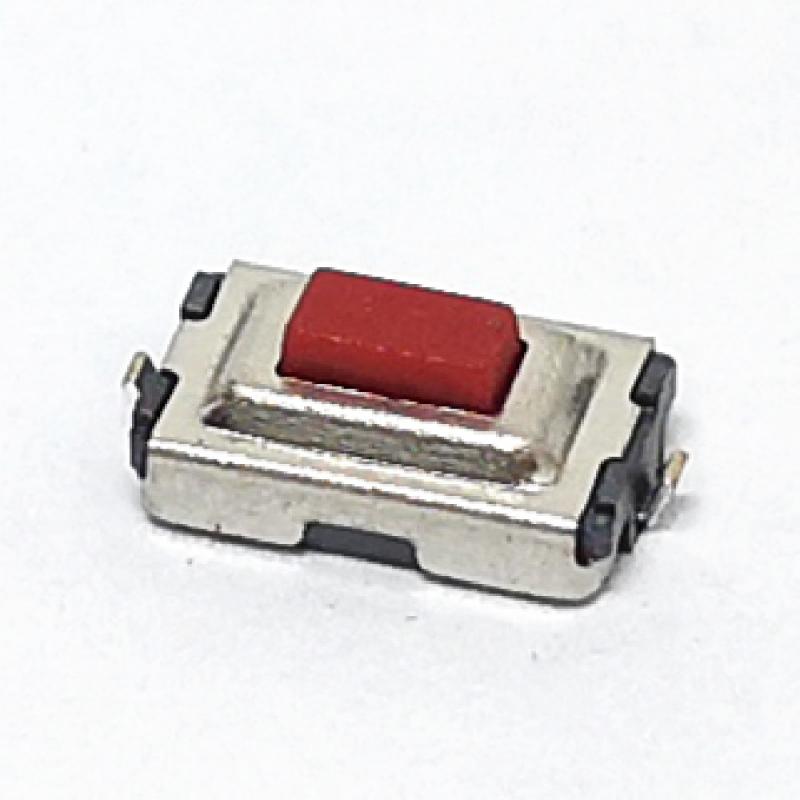

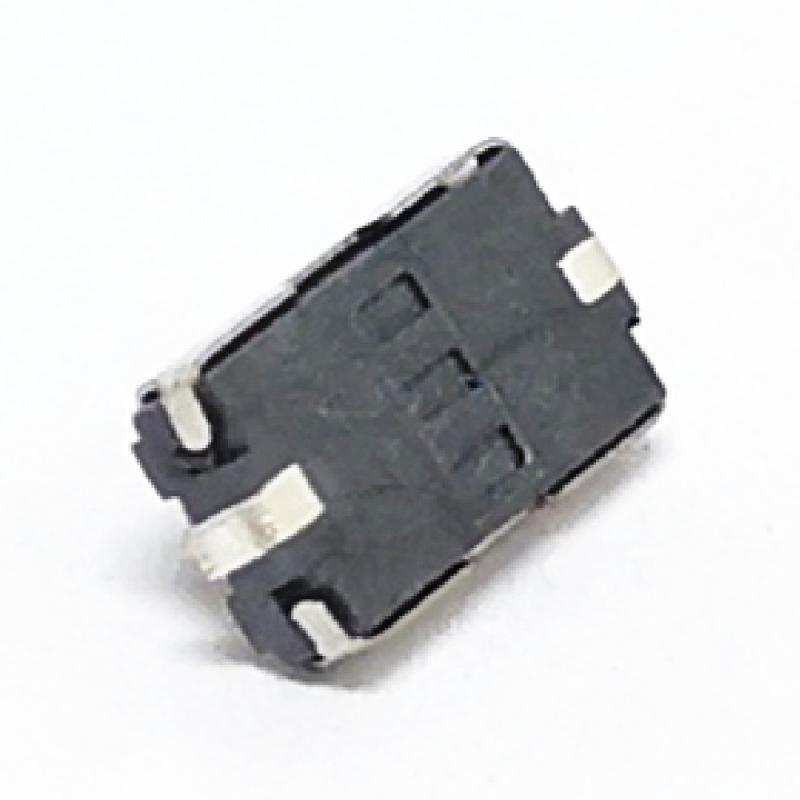

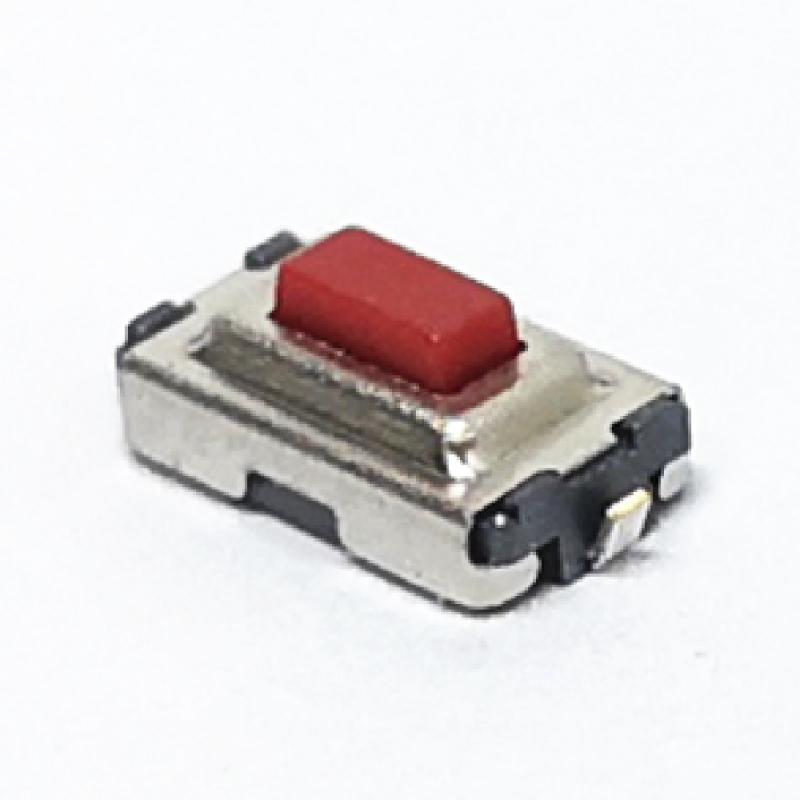

tact switch 3x6mm without ground terminal

The 04 series is a small 6.8 x 3.7 form factor in SMT version, ideal for general usage applications. It also included ground pin options on 2.5 mm height version.

Brand:
Gangyuan
Item NO.:
KAN0441U-0252B1-14
Order(MOQ):
3000
Payment:
100% T/T Before Production
Product Origin:
Zhejiang, China (Mainland)
Color:
Red push button
Shipping Port:
Ningbo/Shenzhen
Lead Time：
7-14 working days for payment

Outline (mm)
6.00mm x 3.75mm
Mounting Type
Surface Mount
lllumination
Non-llluminated
IP Rating
IP4X

Product Detail

SMT J leads 2.5mm height 2 pin smt tact switch for automotive

FUNCTION: Momentary action tact switch

Tact switch datasheet

Name: 6.8*3.7mm footprint tact switch

Number: KAN0441U-0252B1-14

Height: 2.5mm

Operating force:160±50 gf

Rating: 12VDC,50mA

Contact resistance:≤100mΩ

Insulation resistance: ≥100MΩ

Life: 40000 cycles

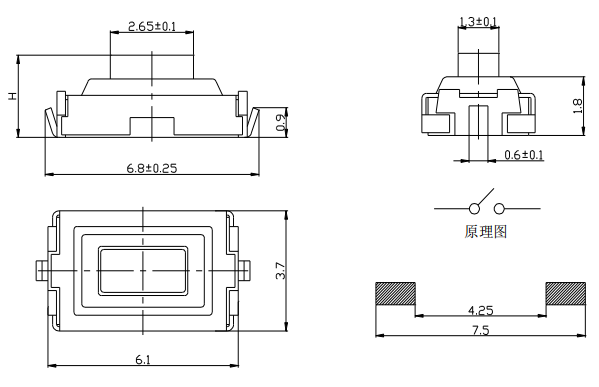

Circuit

Are tactile switches quiet ?

1. The pad size of the printed substrate is shown in the product diagram.

2. In the case of using soldering iron, soldering conditions shall be 350℃ max and 3 sec.max.

3. Prevent flux penetration from the top of the switch

4. After switches were soldered,please be careful not to clean switches with solvent or other similar products.

5. Right after switches were soldered;please be careful not to load to on the knobs of switches.

6. Please be cautions not to give excessive static load or shock to switches.

7. Please be careful not to pile up P.W.B.after switches were soldered

Packing

SMD micro top actuated small and thin tact switch

3000pcs/reel

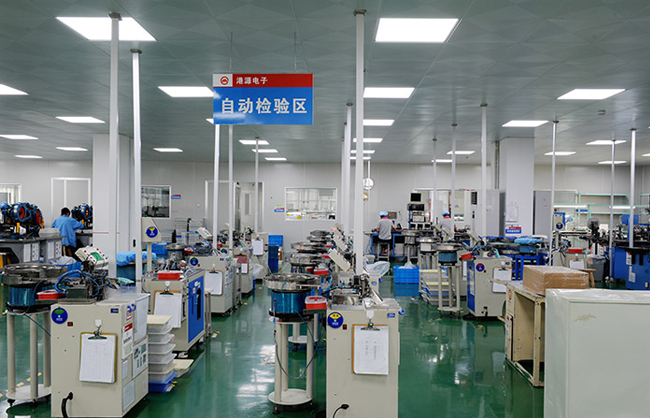

Product inspection process (a total of 36 inspection equipment)

IQC incoming inspection → configuration group → IPQC inspection → equipment automatic inspection →

QA warehousing random inspection → OQC shipment inspection
