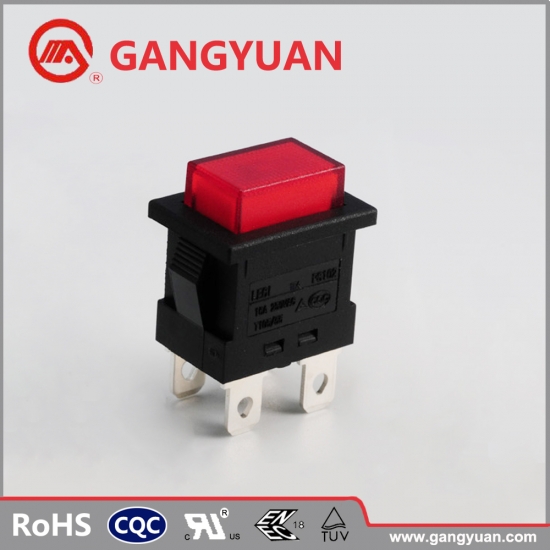

Red button 4 pin push on off square rocker switch 16A
Brand:
GangyuanItem NO.:
PS102-201N001R1B(S)Order(MOQ):
1Payment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
black and redShipping Port:
Ningbo/ShenzhenLead Time：
3 working days for payment
Red button 4 pin push on off squar rocker switch 16A
Basic Information
|
Product Name: |
rocker switch |
|
Product No.: |
PS102-201N001R1B(S) |
|
Dimension: |
21.1X15.1 |
|
Maximum Rating: |
16A,250V |
|
Contact Resistance: |
≤50mΩ |
|
Insulation Resistance: |
≥100mΩ |
|
Dielectric Strength: |
≥1500 V AC |
|
Soldering ability |
230±10℃/ 3±1s |
|
Electrical Life: |
>10000 Cycles |
|
Certifications: |
TUV UL CQC VDE |
Dimension
Tact Switch Using Attention
1．Please consult us when considering to wash tact switches2．Please don’t immerse soldering flux into tact s
3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board
4．The second welding should be done after switches return to normal temperature
Our advantage
1. Excellent R&D team, clients design requests are welcome.
2. Experience of more then
two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.
Application
Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
