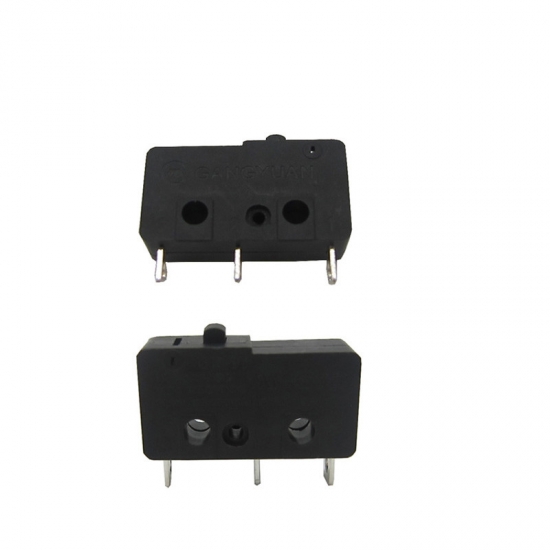

SPDT microswitch Mini t125 push button micro switch
Brand:
GangyuanItem NO.:
G15-06PM-150-06Order(MOQ):
100pcsPayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
blackShipping Port:
Ningbo/ShenzhenLead Time：
7-14 working days for paymentOutline (mm)
20.00mm x 10.00mmMounting Type
Through Holelllumination
Non-llluminatedIP Rating
IP4XSPDT microswitch Mini t125 push button micro switch
Basic Information
| Name | Micro switch |
| Part.No | G15-06PM-150-06 |
| Operating force | 150±50gf |
| Life Time | 10000 cycles |
| Current Rating | 6A |
| Contact resistance | 100mΩ Max. |
| Insulation Resistance | 100MΩ Min |
| Voltafe Rating |
125/250V AC |
Dimension
Product features
1. Type: G15 Micro switch
2. Circuit Code: SPDT - Pcb
3. Lever Type: No lever
4. Electrical Rating: 6A 125/250vac
5. OP ( Operating position）: 11.4±0.4mm
6. FP ( Free position ): 11.9±0.4mm
Our advantage
1. The factory has more than 20 years of experience in the field of switch manufacturing.
2. Variety of categories. More than 2000 models.
3. Good quality. Using raw materials imported from Japan and South Korea.
More than 85% of product automated manufacturing coverage.
4. Excellent R&D team, clients design requests are welcome.
5. Two thousands invention patents and 47 utility model patents.
6. Assembly process in 100,000 grade dust-free workshop.
7. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.
8. After-sales service team. Global radiation multiple service outlets.
Application
Micro switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
FAQ
1. Q: Are you manufacture/ factory? Location?
A: Yes, three palnts located in Shenzhen , Zhejiang, Hubei province.
2. Q: Can I get free sample before placing an order ? MOQ?
A: Yes, free samples will get ready within 3~5 days. About micro switch, MOQ is 1,000pcs.
3. Q: What about the delivery time?
A: Stable delivery. 7-15 working days.
4. Q: What about terms of payment ?
A: T/T, L/C, Paypal, Cash etc.
5. Q: Can you customize products according to the design drawing?
A: We have independent R&D center in Shezhen, ODM/OME project is welcome.
6.Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
