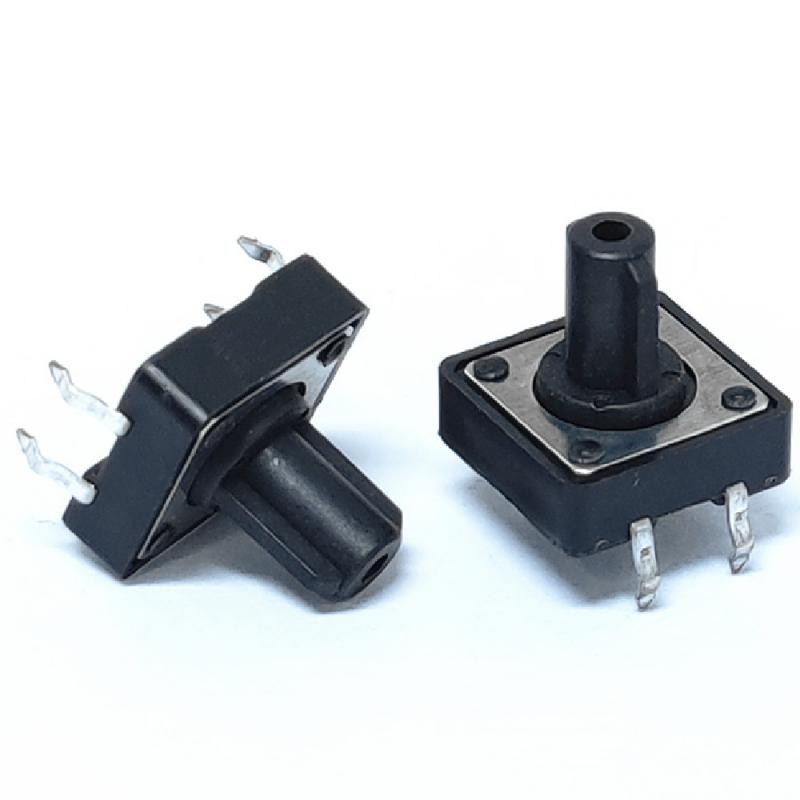

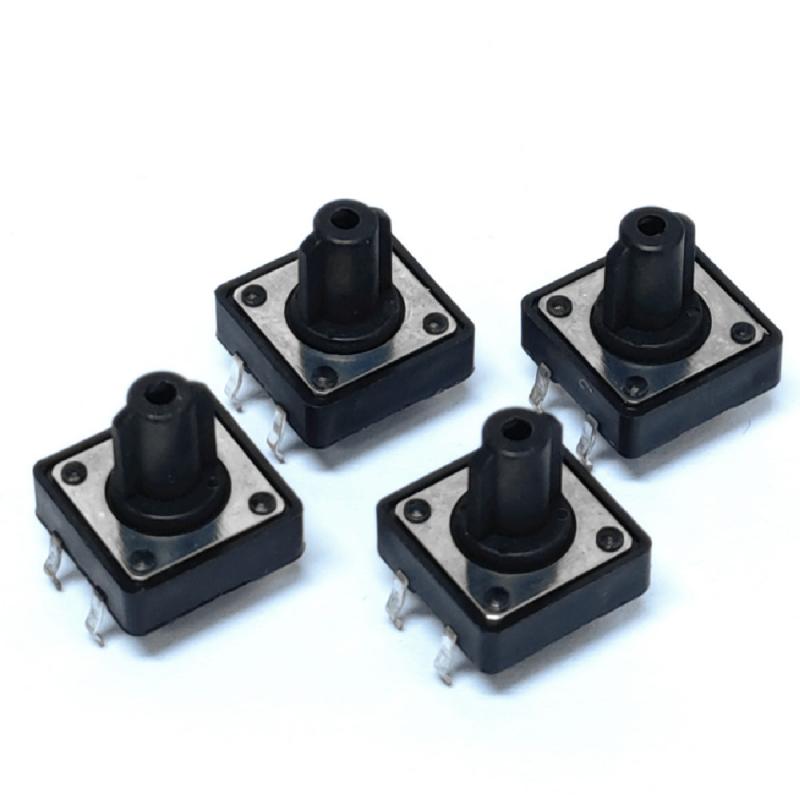

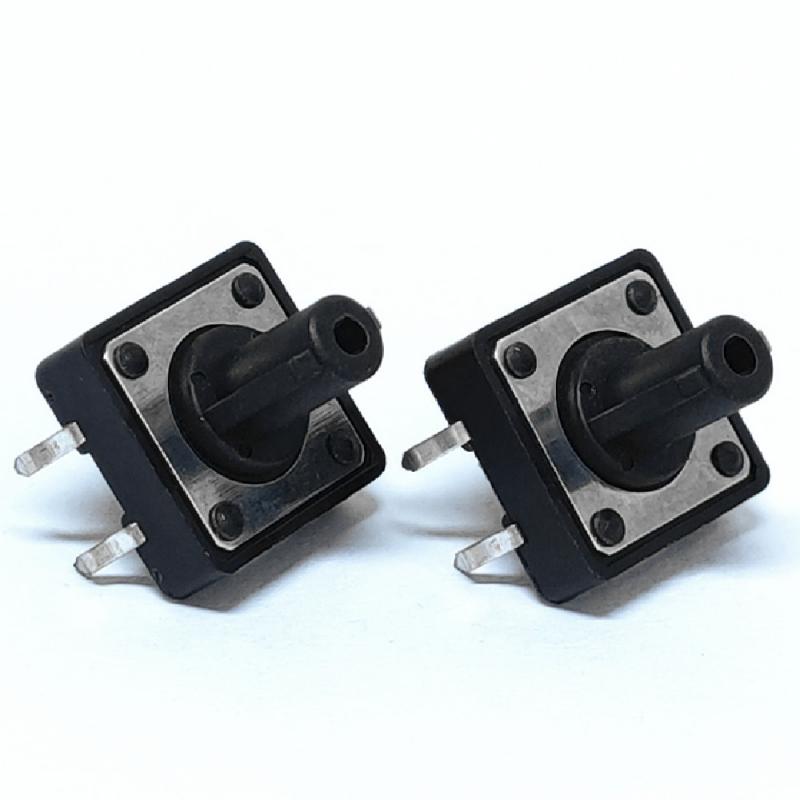

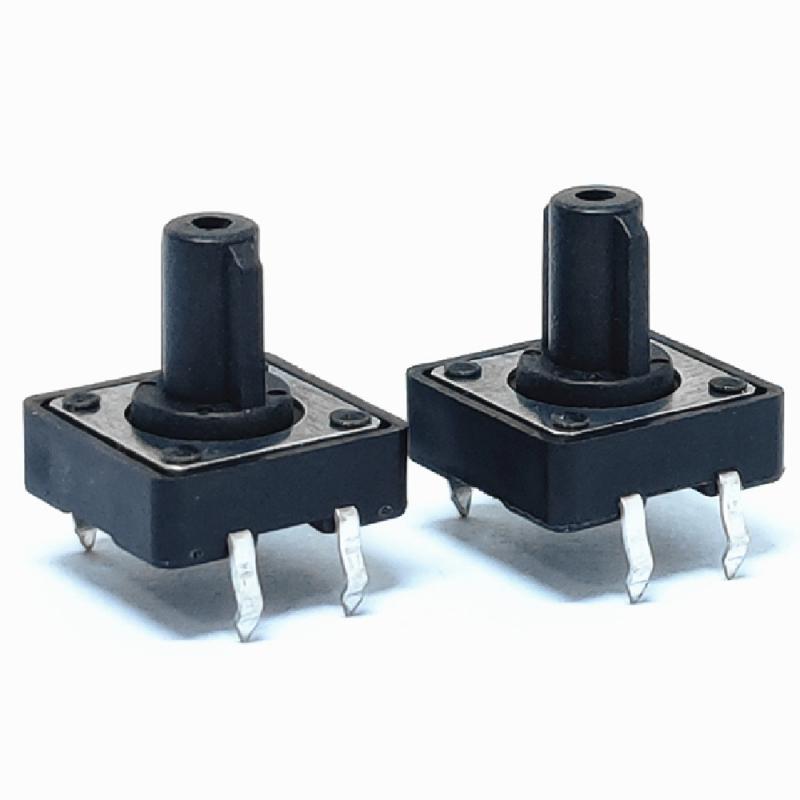

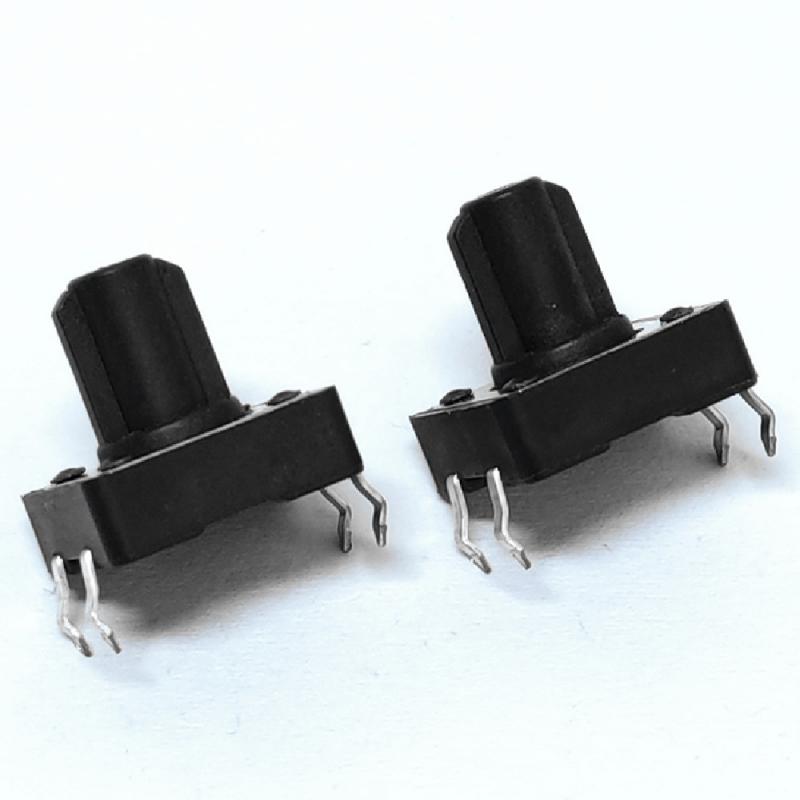

Snap in type 12×12 tact switch

This product is different from the regular handle shape and used for consumer electronics.

Brand:
Gangyuan
Item NO.:
KAN1211A-1201B
Payment:
100% T/T Before Production
Product Origin:
Zhejiang, China (Mainland)
Color:
Black
Shipping Port:
Ningbo/Shenzhen
Lead Time：
7-14 Working Days For Payment

Outline (mm)
12.00mm x 12.00mm
Mounting Type
Through Hole
lllumination
Non-llluminated
IP Rating
IP4X

Product Detail

Single pole single throw high button micro tactile switch

tact switch 4 pin

Parameter

tact switch 12x12

Contact Resistance:≤100mΩ

Insulation Resistance:≥100MΩ

Operating Force:160±50 gf

Full Travel:0.35±0.1mm

Operation life:80,000 cycles

Height: 12mm

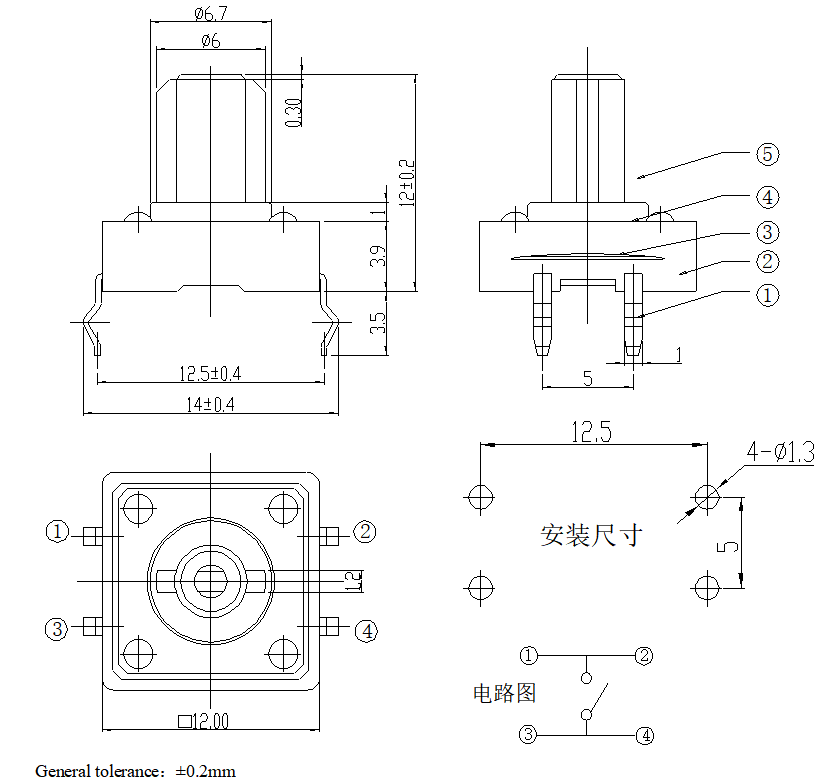

Drawing

Our Advantages

Tact switches are versatile and can be used in almost any user interface application.
Tact switches are designed in a variety of shapes, sizes, terminals, heights and operating forces, providing the opportunity to select the perfect switch for the application.
Each switch is carefully designed for low contact resistance, low bounce noise, high contact reliability and a sharp tactile feel.

How to wire a tact switch

Tactile switches typically contain 4 pins. These pins are internally connected in 2 groups. The purpose of using 4 pins is to provide stability when mounting the device on the board. When wiring, you technically only need to use 2 leads, but it's a best practice to use as many pins as possible, while being aware that the pairs are connected internally.Tactile switches are also available with just 2 pins.
