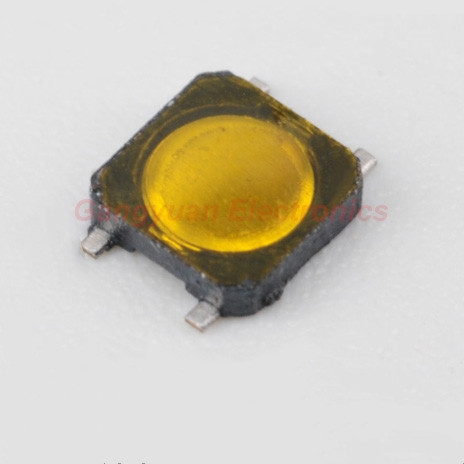

SMD Waterproof tactile switch

Patch touch switch slightly mini SMD Waterproof push button tactile switch

Brand:
Gangyuan
Item NO.:
KAN0342
Order(MOQ):
50 pcs
Payment:
T/T
Product Origin:
zhejiang/shenzhen
Color:
yellow
Shipping Port:
ningbo or shenzhen
Lead Time：
3 Working Days after payment

Outline (mm)
3.00mm x 3.00mm
Mounting Type
Surface Mount
lllumination
Non-llluminated
IP Rating
IP4X

Product Detail

Patch touch switch slightly mini SMD Waterproof push button tactile switch

Basic Information

Model Name:	SMD tact switch
Model No.:	KAN0342 series
Dimension:	3×3×0.65mm
Operating force:	160±50gf
Life cycles:	200,000 times
DC rating:	50mA.12V DC
Insulation resistance:	100MΩ min.250V DC
Dielectric strength:	250V AC for 1 min
Contact resistance:	100mΩ max.
Full travel :	0.25±0.1mm

Dimension

tact switch for pilots.jpg

Tact Switch Using Attention

1．Please consult us when considering to wash tact switches

2．Please don’t immerse soldering flux into tact switches

3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4．The second welding should be done after switches return to normal temperature

Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.

Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

act Tactile Switch
