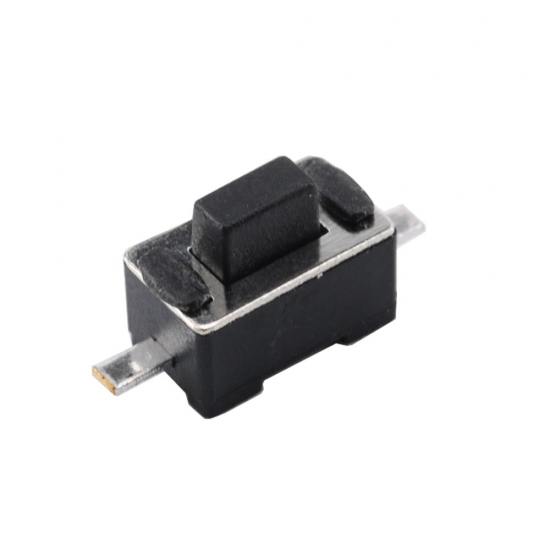

Dip Tact switch supplier 6*3.5mm smd silent tact switch 12V
Brand:
GangyuanItem NO.:
KAN3542COrder(MOQ):
50 pcsPayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
black and greendShipping Port:
Ningbo/ShenzhenLead Time：
3 Working Days after paymentOutline (mm)
6.00mm x 3.50mmMounting Type
Surface Mountlllumination
Non-llluminatedIP Rating
IP4X
Dip Tact switch supplier 6*3.5mm smd silent tact switch 12V
Basic Information
| P/N | KAN3542C |
| Type | SMD tact switch |
| Dimension | 6x3.5xH(H=4.3/5mm) |
| Operating force | 160gf/260gf±50gf |
| Life cycles | 30,000/50,000cycles |
| Travel |
0.25mm±0.1mm |
Dimension
|
Contact resistance
|
≤50mΩ
|
Heat resistance
|
80±2℃, 96h
|
|
Insulation Resistance
|
≥100MΩ
|
Moisture resistance
|
60±2℃, 96h
|
|
Dielectric voltage proof
|
250V AC(50Hz/60Hz)/1min
|
Sulfuration resistance
|
40±2℃, 72h
|
|
Resistance to low temperature
|
-30±2℃, 96h
|
Salt Mist
|
35±2℃, 8h±1h
|
Tact Switch Using Attention
1．Please consult us when considering to wash tact switches2．Please don’t immerse soldering flux into tact switches
3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board
4．The second welding should be done after switches return to normal temperature
Our advantage
1. Excellent R&D team, clients design requests are welcome.
2. Experience of more then
two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.
Application
Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
Categories
KAN3511B: 160gf/ 260gf, 6*3.5*H, 50,000cycles mini smd tact switch.
KAN3531: 3.5*6.*H, Mini SMD type tactile switch
KAN3542: SMD 6*3.5*H, small size tact switch.
KAN3543: Mini SMD type tactile switch with 2 pins.
12vDC 50mA, 2 Pin smd type tactile switch
KAN3542B: White Stem, mini SMD tactlie switch.
KAN3542C: 5/100 thousand cycles, small size SMD tactlie switch
KAN354: SMD mini size tactlie switch
For inquiries about our products or pricelist, please leave to us and we will be in touch within 24 hours.
