SMD momentary tactile switch for infrared temperature gun

Silicone cap SMD smt momentary tact switch for infrared temperature gun

Brand:
Gangyuan
Item NO.:
KAN0441F-0251J
Order(MOQ):
10pcs
Payment:
100% T/T Before Production
Product Origin:
Zhejiang, China (Mainland)
Color:
blue and silver
Shipping Port:
Ningbo/Shenzhen
Lead Time：
3 working days for payment

Outline (mm)
6.00mm x 4.00mm
Mounting Type
Surface Mount
lllumination
Non-llluminated
IP Rating
IP67

Product Detail

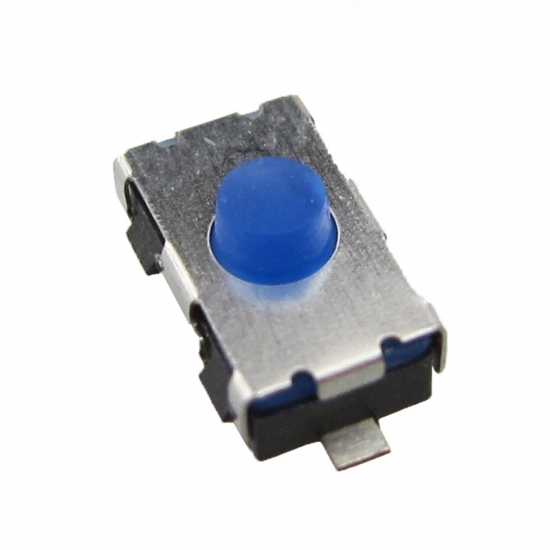

Silicone cap SMD smt momentary tact switch for infrared temperature gun

Basic Information

P/N	KAN0441F-0251J1
Rating	DC12V 50mA
Type	SMD tact switch
Dimension	6x3x2.5mm
Operating force	3.0±0.5N
Contact resistance	100mΩ Max
Insulation resistance	100MΩ Min

Dimension

tss11 tact switch side smd.jpg

push button tactile switch.jpg

Tact Switch Using Attention

1．Please consult us when considering to wash tact switches

2．Please don’t immerse soldering flux into tact s

3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4．The second welding should be done after switches return to normal temperature

Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.

Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

act Tactile Switch
