SMD micro mini slide switch

Subminiature SMD Slide Switch: SPST (Single Pole Single Throw) SPDT (Single Pole Double Throw) DPDT (Double Pole Double Throw) DPST (Double Pole Single Throw)

Brand:
Gangyuan
Item NO.:
MSS23F10-TG2
Order(MOQ):
1000
Payment:
100% before production
Product Origin:
Wenzhou
Color:
Black
Shipping Port:
Ningbo or Shenzhen
Lead Time：
7-15 working days

Outline (mm)
9.90mm x 3.50mm
Mounting Type
Surface Mount
lllumination
Non-llluminated
IP Rating
No IP Rating

Product Detail

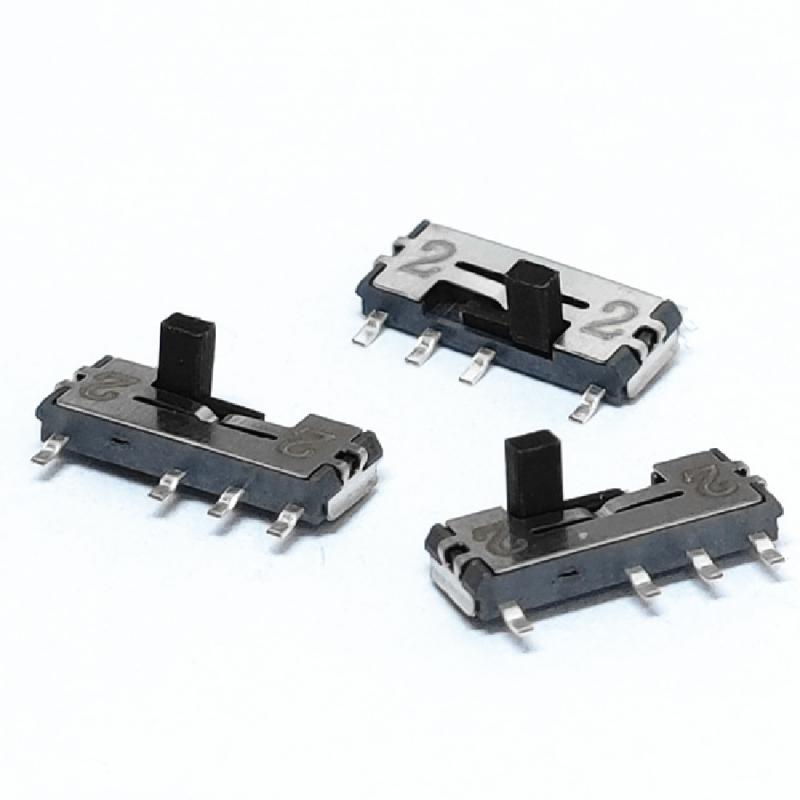

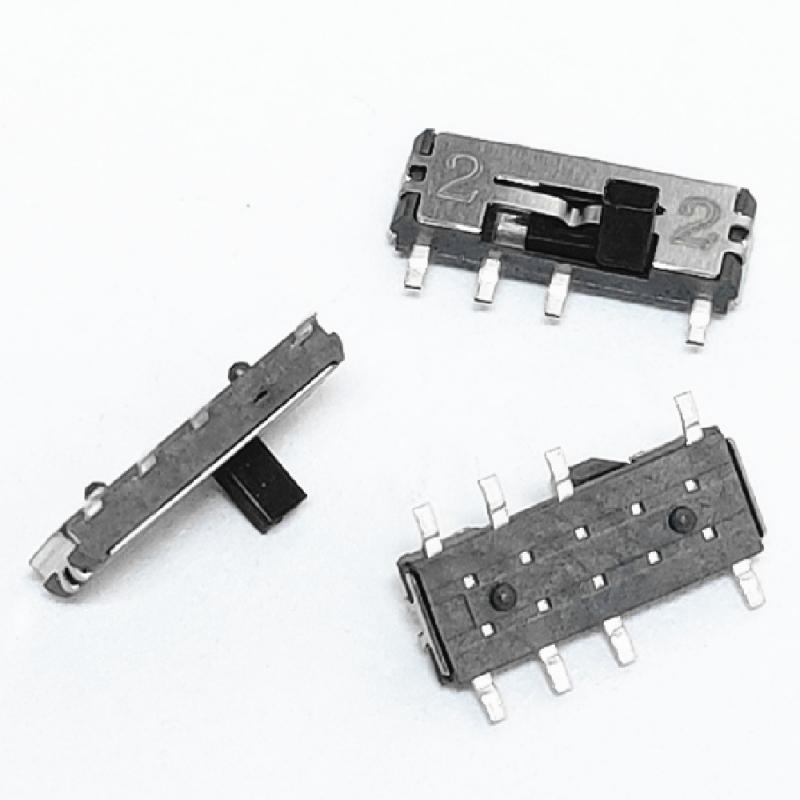

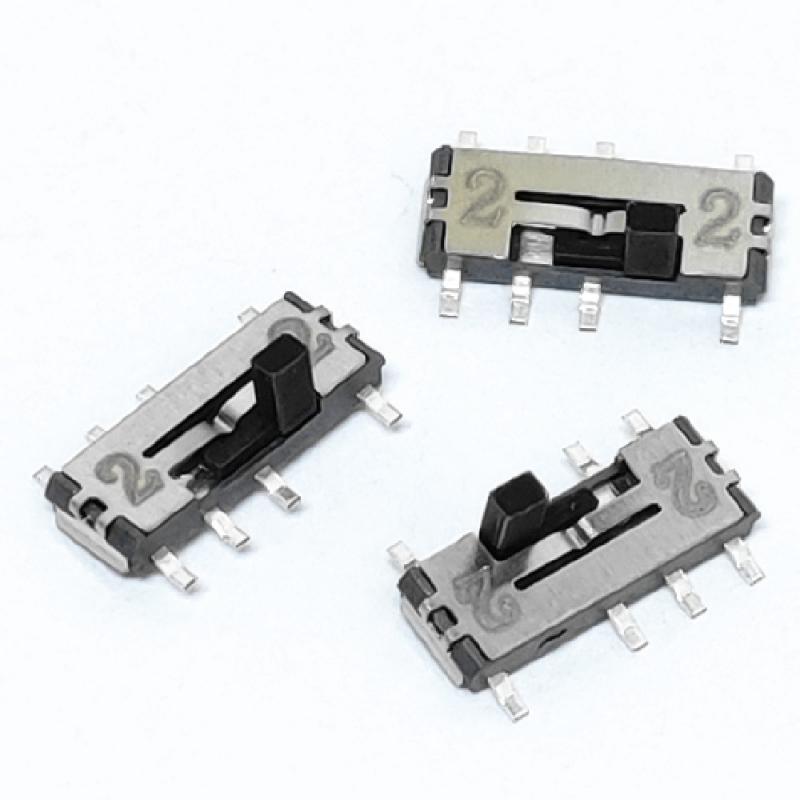

Miniature slide switches smd 8 pin 2 pole 3 position slide switch

Product Attributes

Function: SMT 2P3T Slide switch

Ratings: DC 12V 100mA

Operating Force: 160±50gf

Full Travel: 3±0.3mm

Operation life: 10,000 cycles

Operating Temperature Range: -10℃～50℃

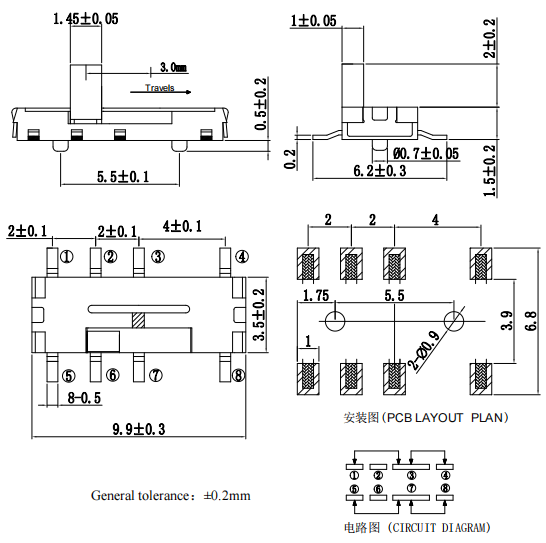

Slide switch schematic

Features/Benefits

Mini slide switch smt

Low profile

Single & double pole models

Double & triple throw models

RoHS compatible

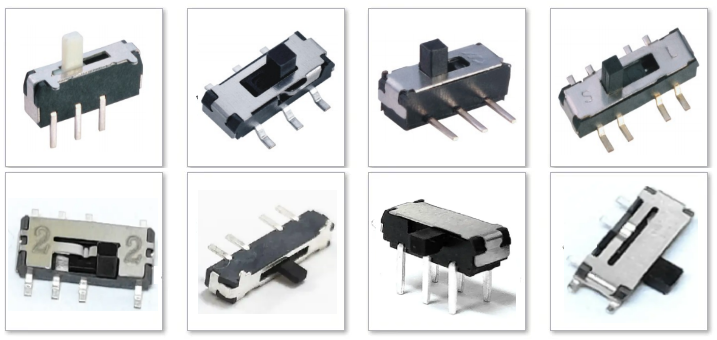

More choose

single pole double throw slide switch / 2 positions slide switch / side button slide switch / spdt on-on slide switch

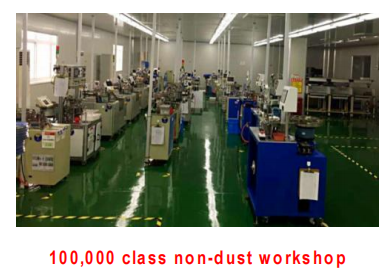

Gangyuan Advantage

Long-term partnership with leading customers in multi-segment industries.

Focus on profession-alism, long-termism.

4 categories including over 20 subcategories

Localized response
