A slide switch is a mechanical device that is commonly used for controlling an electrical circuit. It utilizes a simple sliding action to move the switch from an open position to a closed one, or vice-versa. As maintained-contact switches, slide switches remain in one state until manually actuated into another state.
Brand:
GangyuanItem NO.:
MSS22C07-TG2-MB1Order(MOQ):
1000Payment:
100% before productionProduct Origin:
WenzhouColor:
BlackShipping Port:
Ningbo or ShenzhenLead Time：
7-15 working daysOutline (mm)
7.00mm x 3.50mmMounting Type
Surface Mountlllumination
Non-llluminatedIP Rating

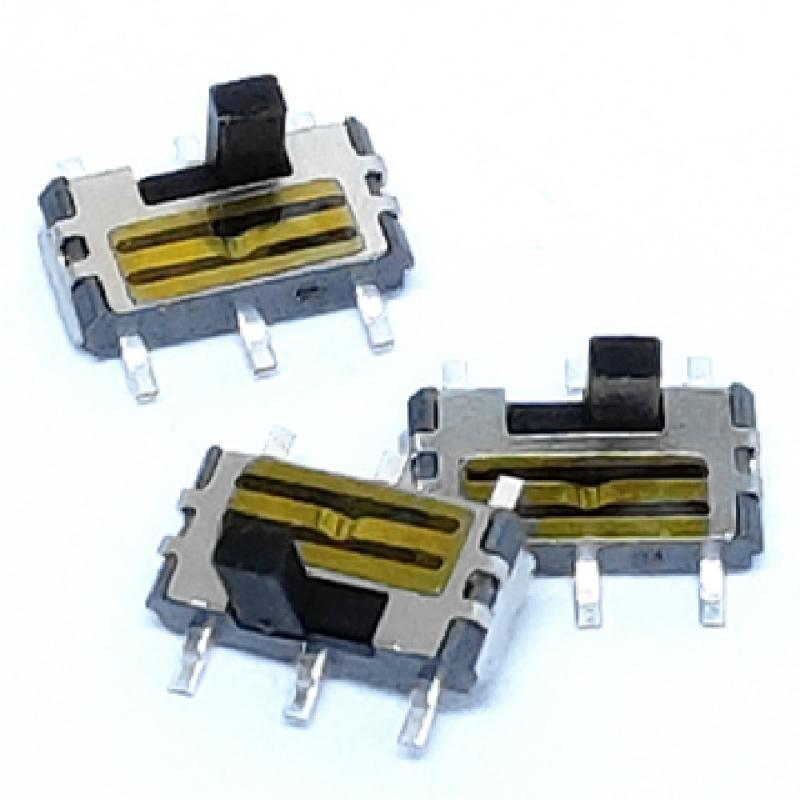

No IP RatingDC 12V 100mA slide switch smd 2p2t 6 pins slide switches
two way slide switch
Product Attributes
Operating Force: 200±70gf
Full Travel: 1.5±0.2mm
Operating Temperature Range: -20℃～70℃

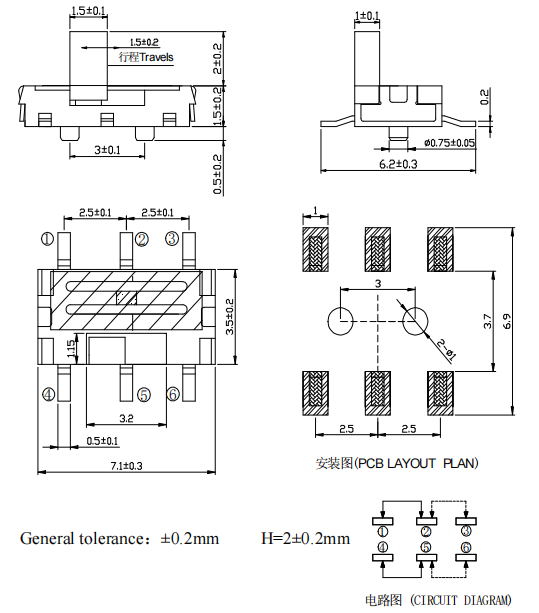

Slide switch schematic
Where are slide switches used ?
They're used in a variety of electronic devices for different purposes. Some common examples include: Flashlights:
Slide switches are often used to turn flashlights on and off. Remote controls: Many remote controls for electronic
devices use these switches to control power or select different functions.
More choose
1P2T Slide switch / 2 positions slide switch / side button slide switch / 6 pin slide switch

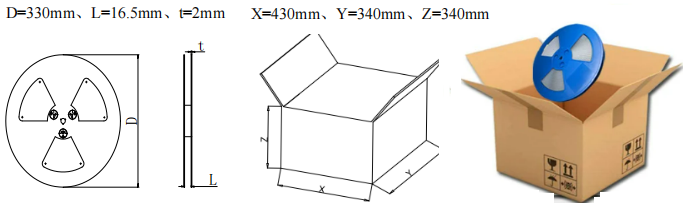

Packing
