small smd slide switch

A slide switch is a bistable two-position switch and is used to control the current flow in a circuit. It can be closed or interrupted by moving the switch. ... Slide switches are used, for example, in smaller circuits, such as main switches in battery-powered electrical devices.

Brand:
Gangyuan
Item NO.:
SK22C05
Order(MOQ):
1000
Payment:
100% T/T Before Production
Product Origin:
Zhejiang, China (Mainland)
Color:
black
Shipping Port:
Ningbo/Shenzhen
Lead Time：
7-14 working days for payment

Outline (mm)
9.10mm x 3.50mm
Mounting Type
Surface Mount
lllumination
Non-llluminated
IP Rating
No IP Rating

Product Detail

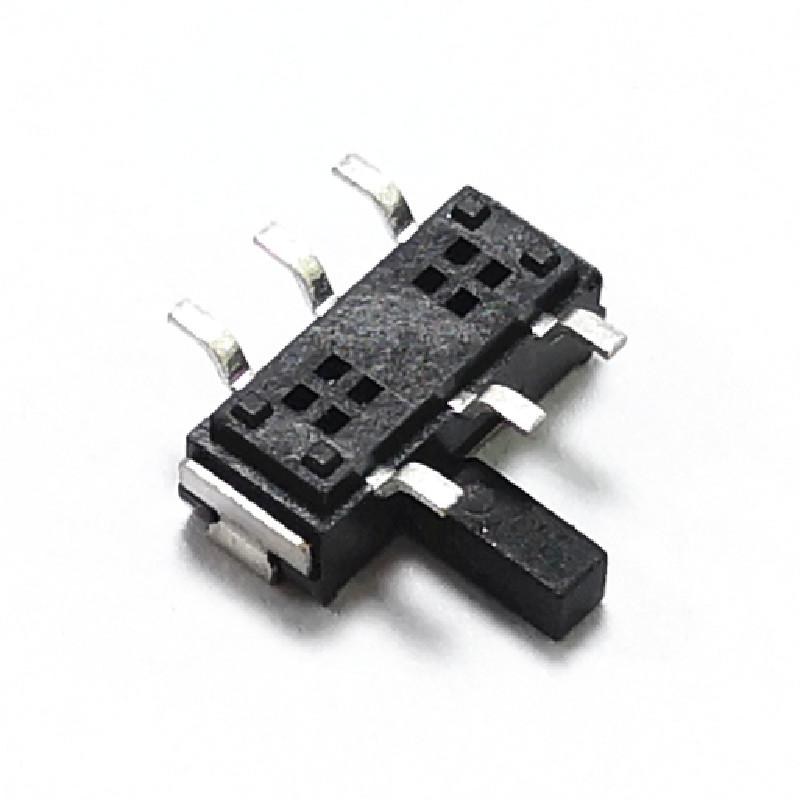

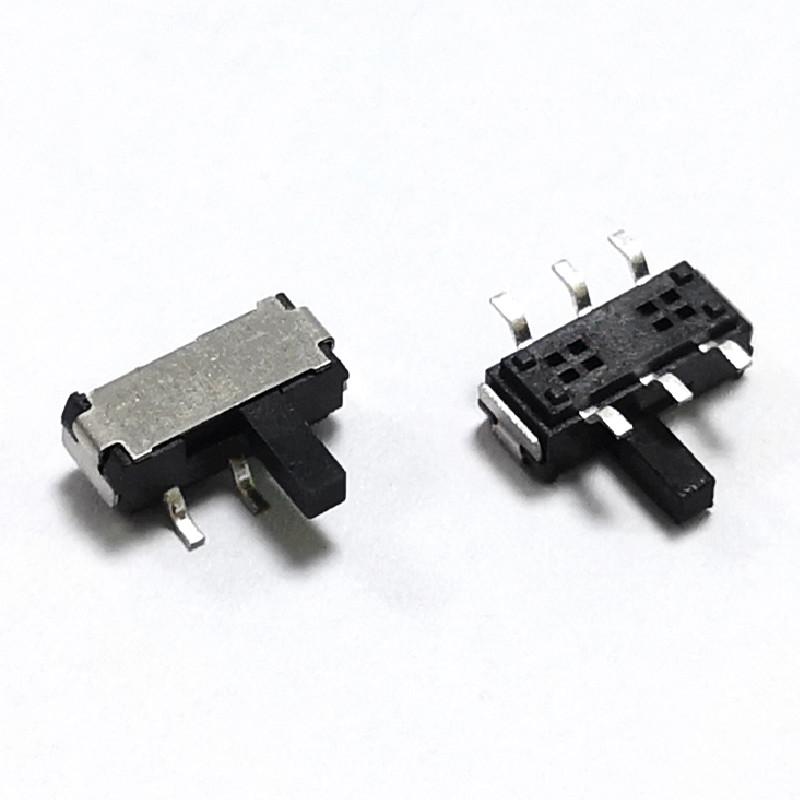

side push 6 pin mini DPDT smd type slide switch

Slide switch datasheet

Type: Side 2 position slide switch

Max. Current: 100mA

Max. Voltage: DC12V

Mechanical Life:10000 cycles

Contact resistance: ≤100mΩ

Insulation resistance: ≥50MΩ

Operating force: 200gf±50gf

Life: 10000 cycles

Handle height: 2mm/3mm/4mm

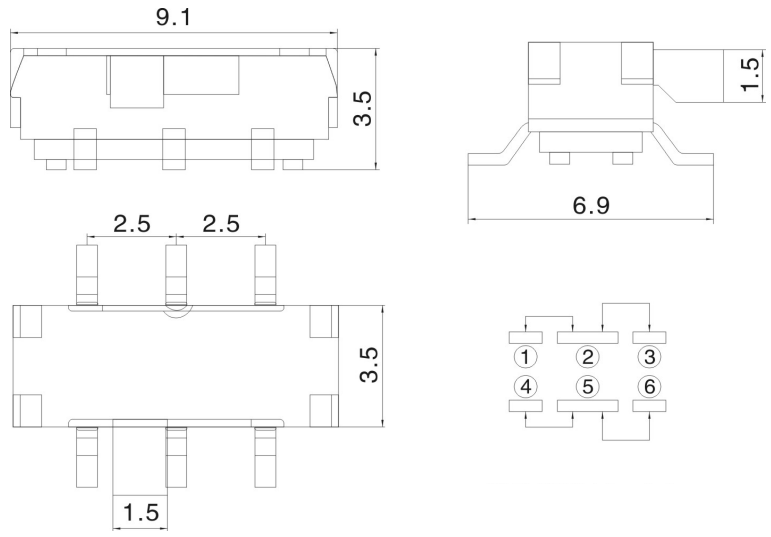

Slide switch diagram

Application

computers, peripherals and network devices (laptops, network hubs, routers, gaming controllers)
telecommunications equipment (telephone and cable modems, audio-visual devices, microphones)
consumer electronics (handheld games, remote controls, headphones, headsets, earbuds, channel selector on set-top boxes)
test and measurement equipment
appliances (small and large, both indoor and outdoor)
small equipment (handheld devices, portable tools, office equipment)
automotive and medical applications
thermostat select switch
lighting devices

What is a slide switch made of ?

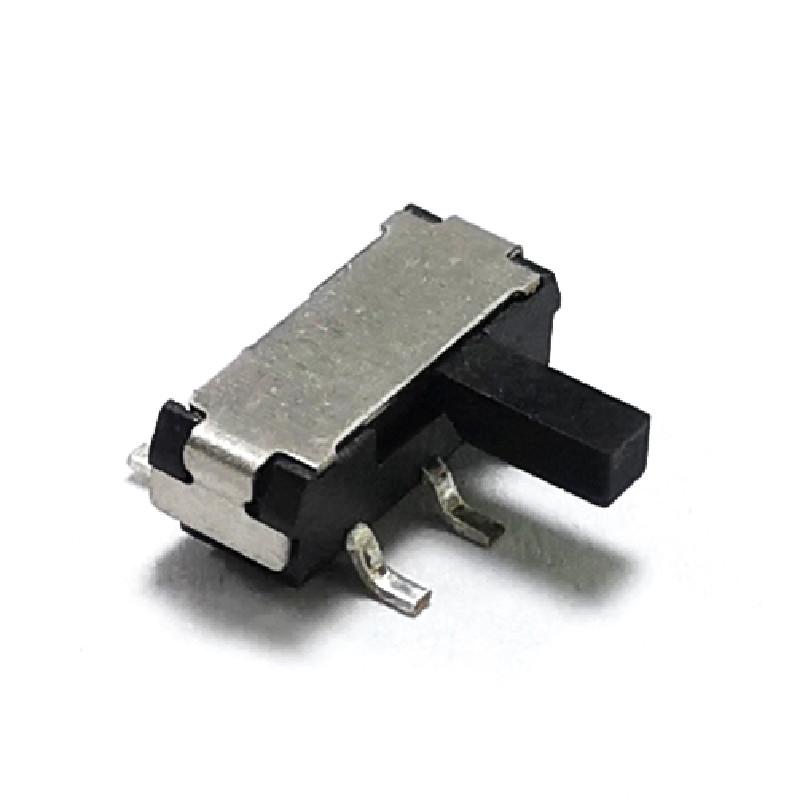

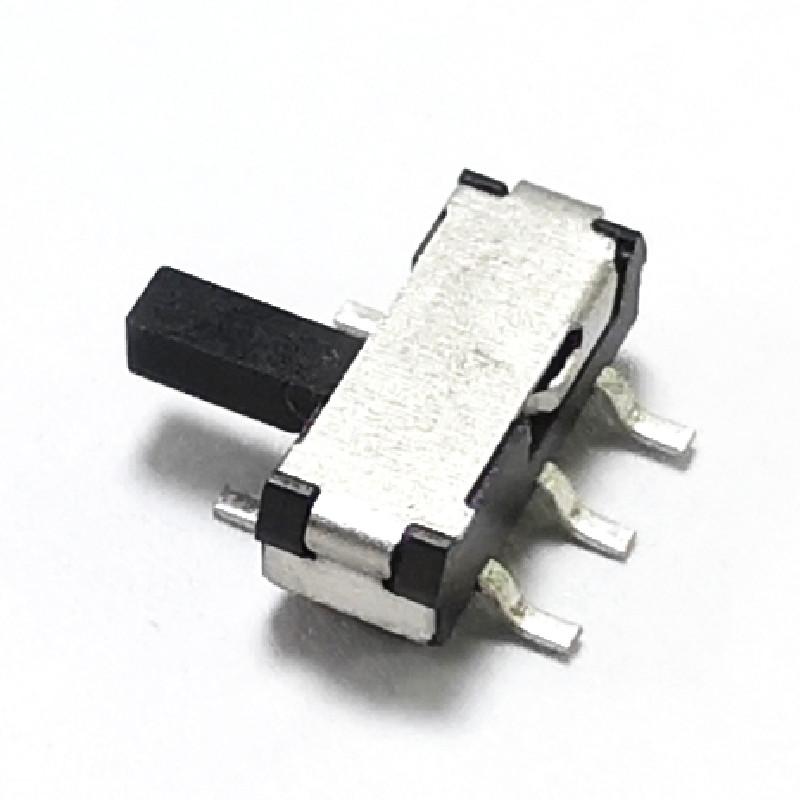

The rear part of the smt slide switch has the connecting terminals. As shown in the image above, the terminals can be easily soldered to the wires of the circuitry.

To fulfill this purpose, they are made of copper that has nickel-copper plating over them.

Related Tags :

slide switch suppliers DC 12V 100mA slide switch 2P2T slide switch

Previous:
Right angle miniature toy slide switch
Next:
Double position 10pin electronic slide switch
