Self-lock switch normally means switch with built-in mechanical lock function. Press down the switch and then release, it will not fully bounce up because it is locked. You have to press it again, then it will be unlocked and fully bounce up. This is the so-called Self-lock Switch.
Brand:
GangyuanItem NO.:
PB22M06511-0107Order(MOQ):
500pcsPayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
BlackShipping Port:
Ningbo/ShenzhenLead Time：
7-14 working days for paymentOutline (mm)
5.80mm x 5.80mmMounting Type
Surface Mountlllumination
Non-llluminatedIP Rating

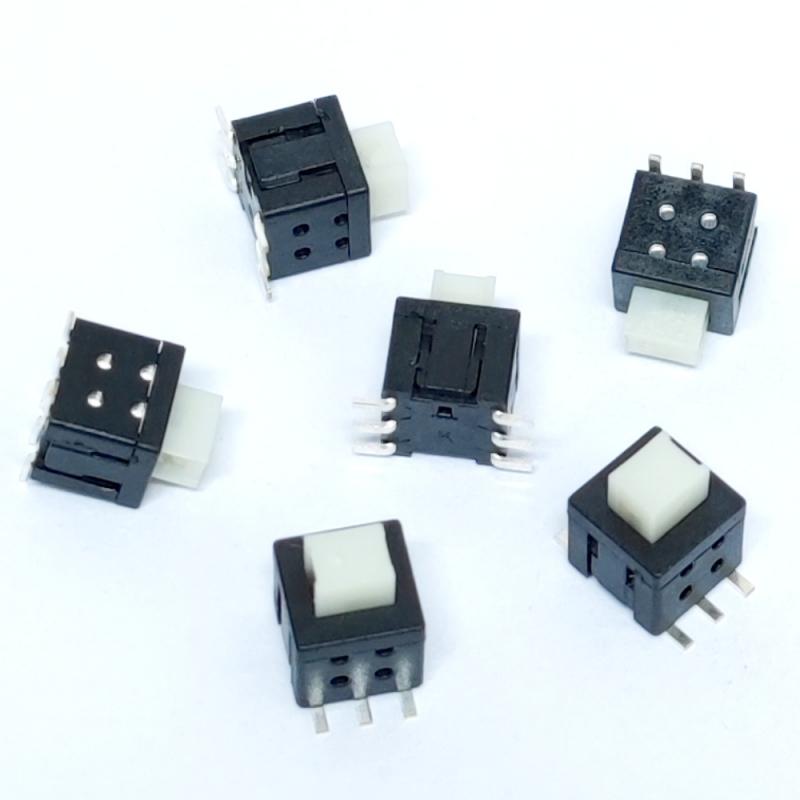

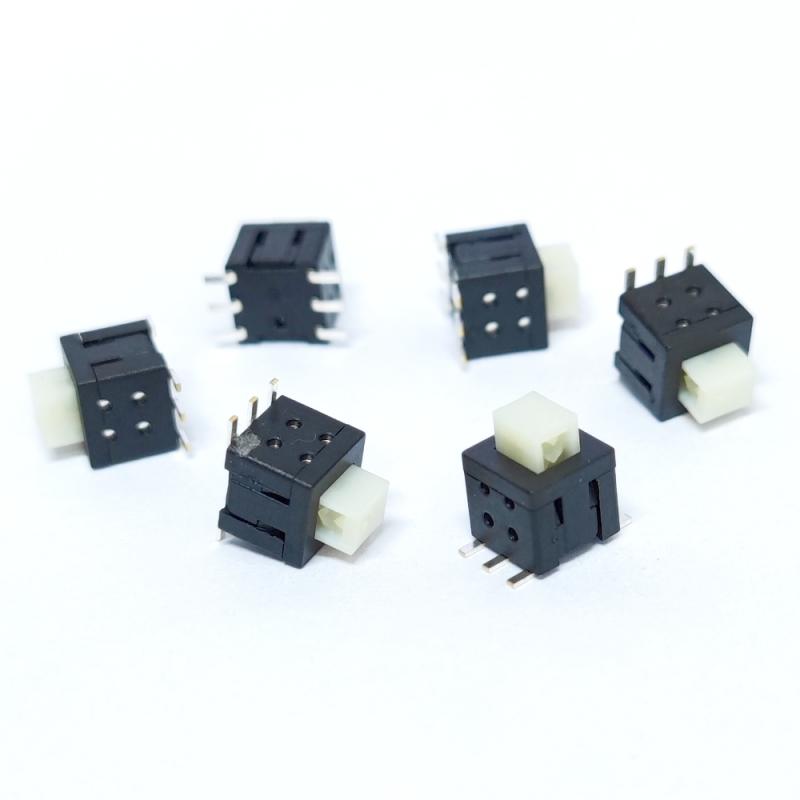

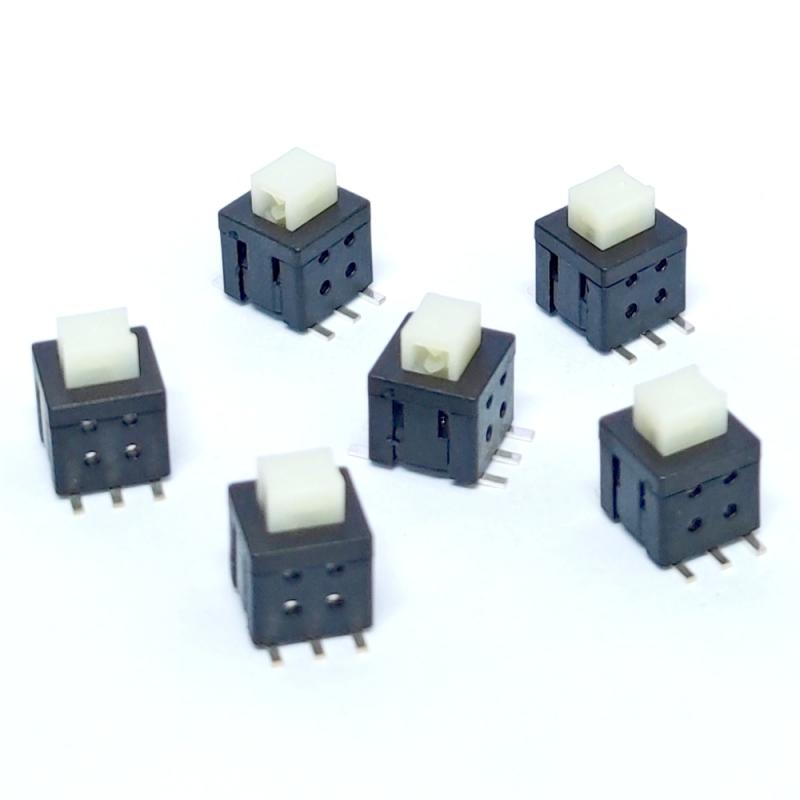

No IP RatingPushbutton Switch DPDT Standard 5.8x5.8mm smd latching push button switch
Specification
Type:Flat push button switch
Ratings:DC 30V 0.1A
Contact Resistance: ≤100mΩ
Insulation Resistance: ≥100MΩ
Operating force: Operating force
Operation Life: Operating force
Full Travel: Full Travel

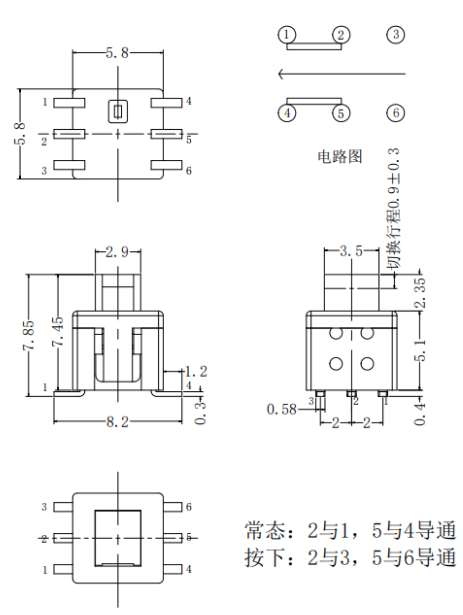

Schematic
What is the difference between momentary and locking switches?
Momentary switches are best for short-duration tasks such as in keyboards or medical alerts, functioning only when pressed.
In contrast, latching switches are suitable for applications requiring a persistent state, like room lighting or security systems,
maintaining their position until pressed again.
Similar Options
8.5mm Latching push button switch / Long actuator push button switch / 7x7mm vertical push button switch / self-locking push button switch
Flat actuator push button switch / Side mount push button switch / 5.8mm PCB mount push button switch / SMD DPDT non lock push button switch
Applications
Telecommunications / Networking
Computers/servers / Performance audio
Instrumentation / Low power on/off designs
External hard drives and modems
AUTOMATIC EOUIPMENT

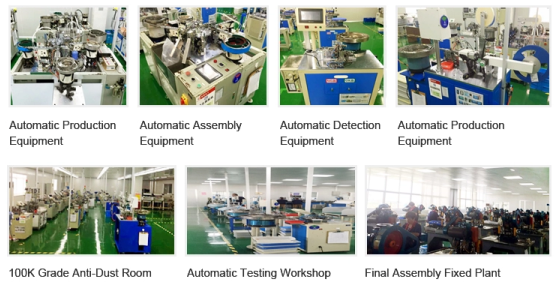

It has independent R&D centers and experimental factories in ShenzhenGuangdong,
and two manufacturing plants in Wenzhou, Zhejiang andGuangshui, Hubei.
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.

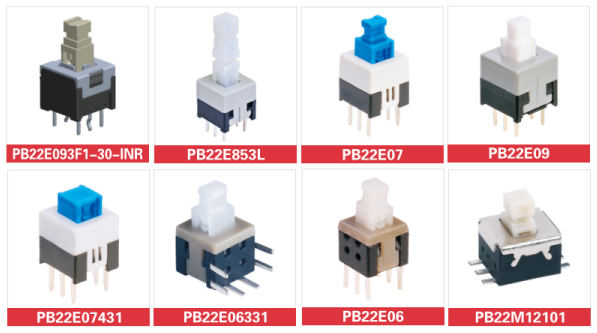

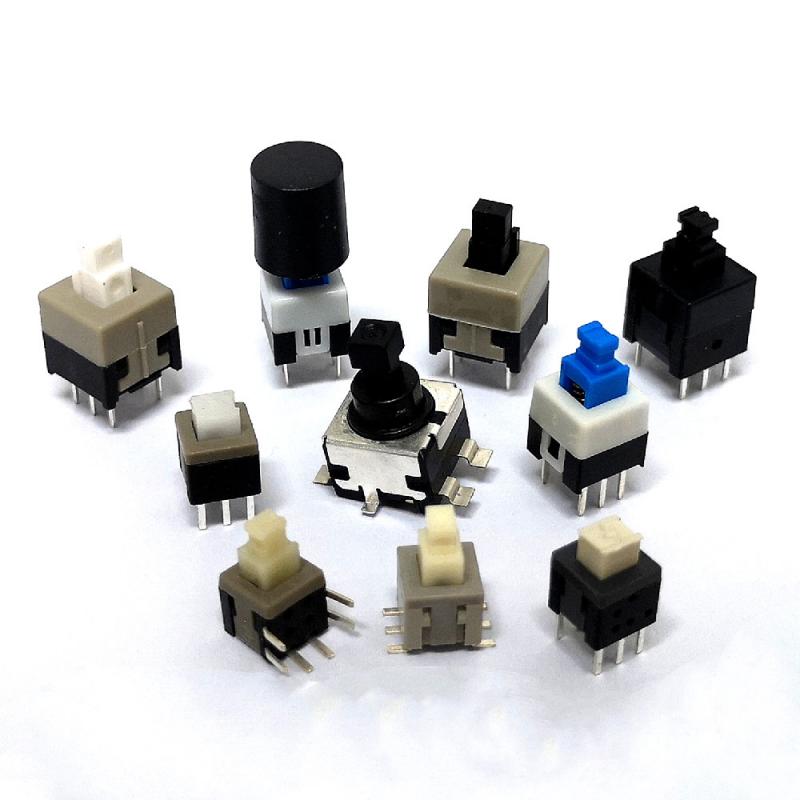

Categories
