Home Switch Rocker switch Round 2 pin rocker switch

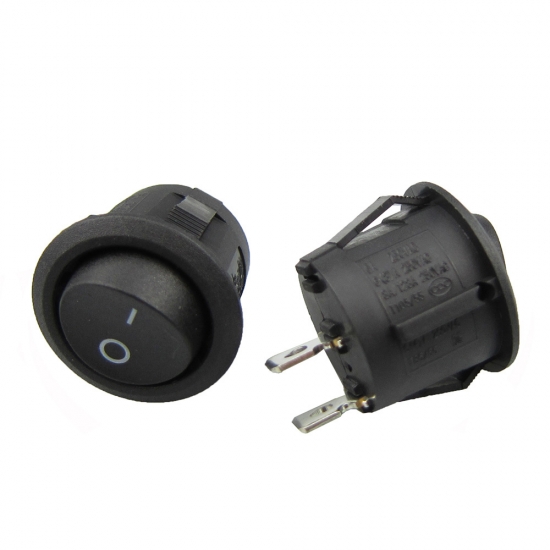

Round 2 pin rocker switch


2pin 23mm Diameter on off  Rocker Switch t105 250V


  • Brand:

    Gangyuan
  • Item NO.:

    RS601C-1010011BB
  • Order(MOQ):

    1
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black and white
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    3 working days for payment
  • Product Detail



2pin 23mm Diameter on off  Rocker Switch t105 250V



Basic Information

Model Name:

Rocker switch

Model No.:

RS601B-1030041BB

Dimension:

21x15mm

Rating:

6A, 3-220V

Contact Resistance:

35mΩ max

Insulation Resistance:

500VDC 100MΩ min

Dielectric Strength:

1500VAC,1Minute

Operating Temperature:

-25℃~+85℃

Electrical Life:

>10000 Cycles

Certifications:

CE,CQC,ROHS,VDE


Dimension

 rocker switch push button.jpg

rocker switch 16a 250vac.jpgHTB1Vqvq6z6bVXat.jpg




Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact s

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
