Wenzhou Gangyuan Electronics Co.,Ltd.

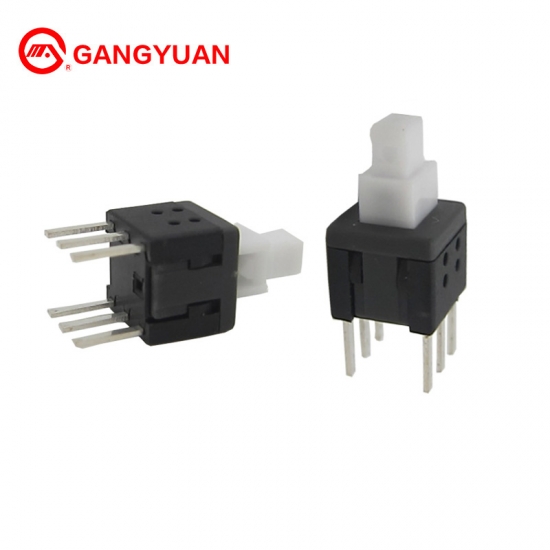

High quality small smart waterproof push button latching switch
Brand:
GangyuanItem NO.:
PB22E06Order(MOQ):
50 pcsPayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
black and whiteShipping Port:
Ningbo/ShenzhenLead Time：
3 working days after payment
High quality small smart waterproof push button latching switch
Basic Information
| Model No.: | PB22E06 |
| Current | 0.1A |
| Voltage | 30V DC |
| Operation life | 10000 cycles |
| Operating Force | 2.0±0.5N |
| Full Travel | 2.0±0.2mm 1.2±0.2mm |
| Contact Resistance: | ≤100mΩ |
| Insulation Resistance: | ≥100MΩ 100V DC |
| Withstand voltage: |
250V AC / 1 min |
Dimension
Tact Switch Using Attention
1．Please consult us when considering to wash tact switches2．Please don’t immerse soldering flux into tact switches
3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board
4．The second welding should be done after switches return to normal temperature
Our advantage
1. Excellent R&D team, clients design requests are welcome.
2. Experience of more then
two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.
Application
Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
Previous:
momentary push button switchNext:
self-locking push button switchIf you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
