On-off 2 pin KCD1 rocker switch

Also called Seesaw switches for their toggling characteristic, Rocker switches are commonly used to start or stop and On or Off the flow of current in the circuit with every push on either side. Rocker switches are often contradicted with a general toggle or trip switches

Brand:
Gangyuan
Item NO.:
KCD1-101-AR
Order(MOQ):
500pcs
Payment:
100% T/T Before Production
Product Origin:
Zhejiang, China (Mainland)
Color:
Black
Shipping Port:
Ningbo/Shenzhen
Lead Time：
7-14 working days for payment

lllumination
No
Length
Width
IP Rating
No IP Rating
Series
KCD1
Mounting Type
Through hole
Actuator Height:

Product Detail

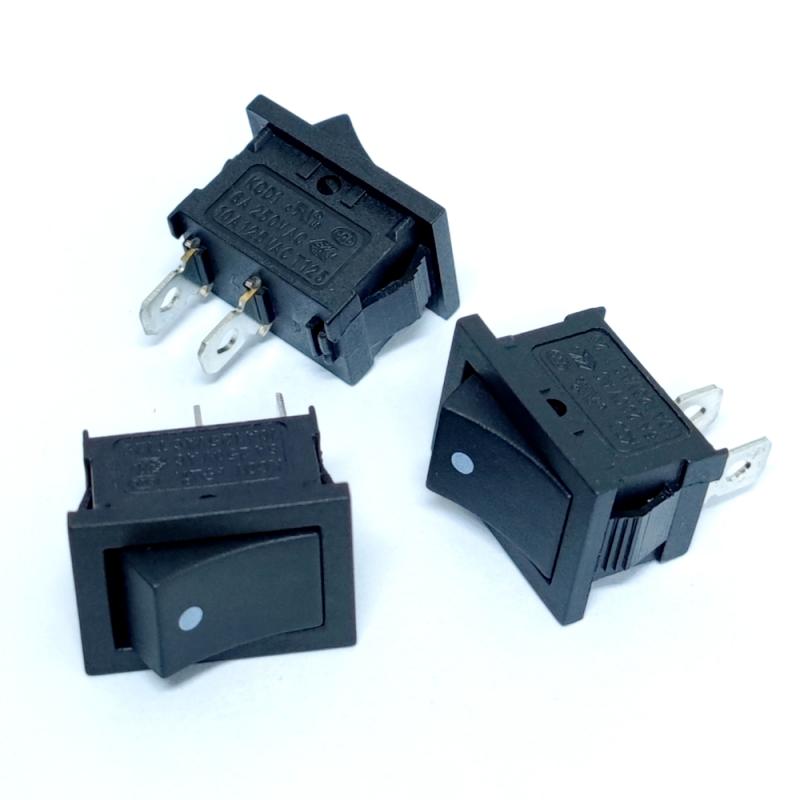

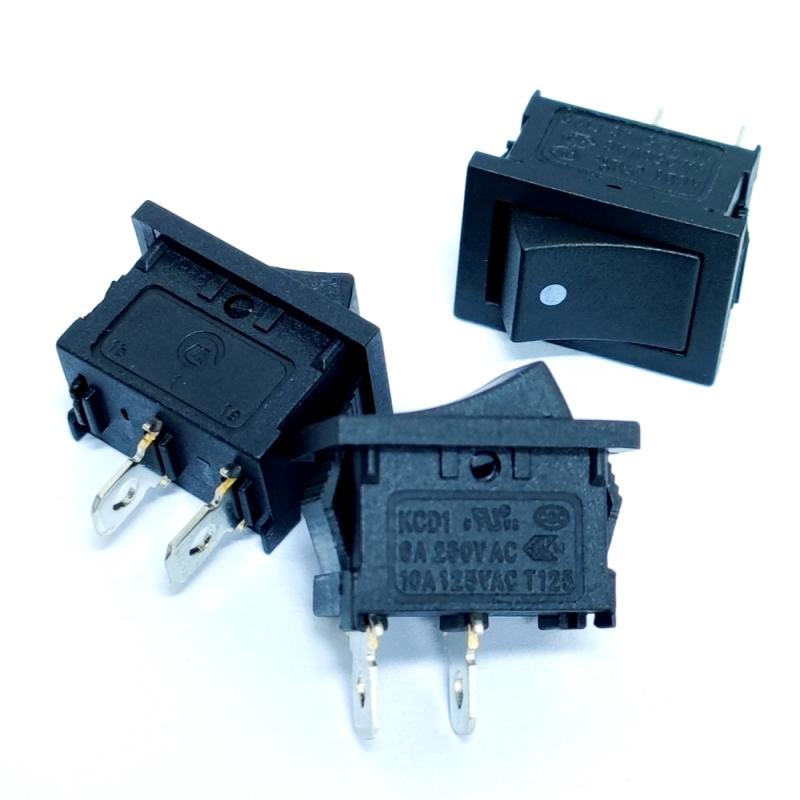

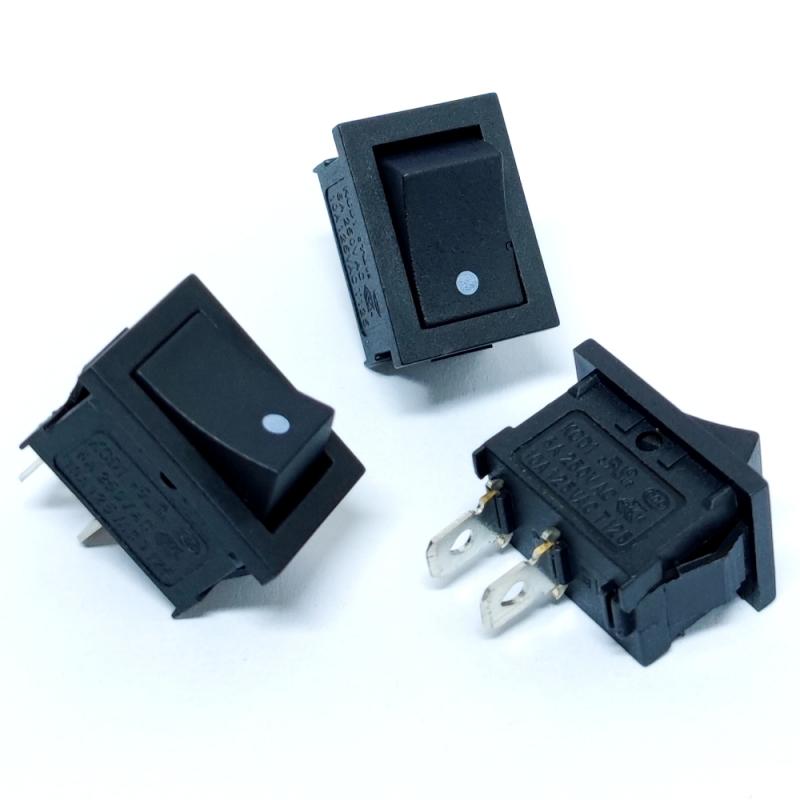

Rocker switch manufacturer kcd1 t125 10A 125V 2 way rocker switch

Miniaturized switch component brand

Feature

Type: Panel mount SPST Rocker switch

Ratings:10A 125VAC/ 6A 250V AC

Contact Resistance: ≤300mΩ

Insulation Resistance: ≥100MΩ

Operating Force: ≤ 10N

Mechanical Life: 10,000 cycles

Certification: UL/CQC/ENEC

Rocker switch Actuator Type: Rectangle

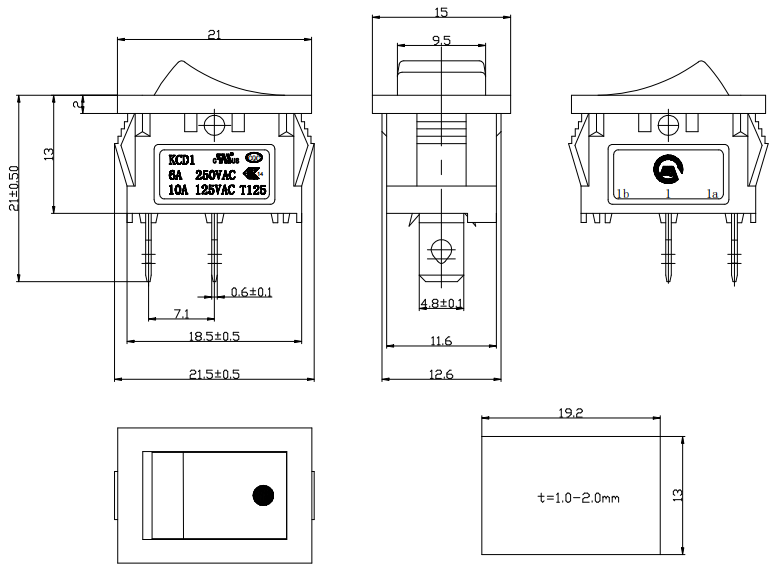

Rocker switch body dimentions

Are rocker switches better than toggle switches ?

Rocker switches are ideal for simple on/off functions and are often used for applications that require clear visual and tactile feedback.

Toggle switches offer more versatility, supporting both on/off and multi-position switching, making them suitable for various control applications.

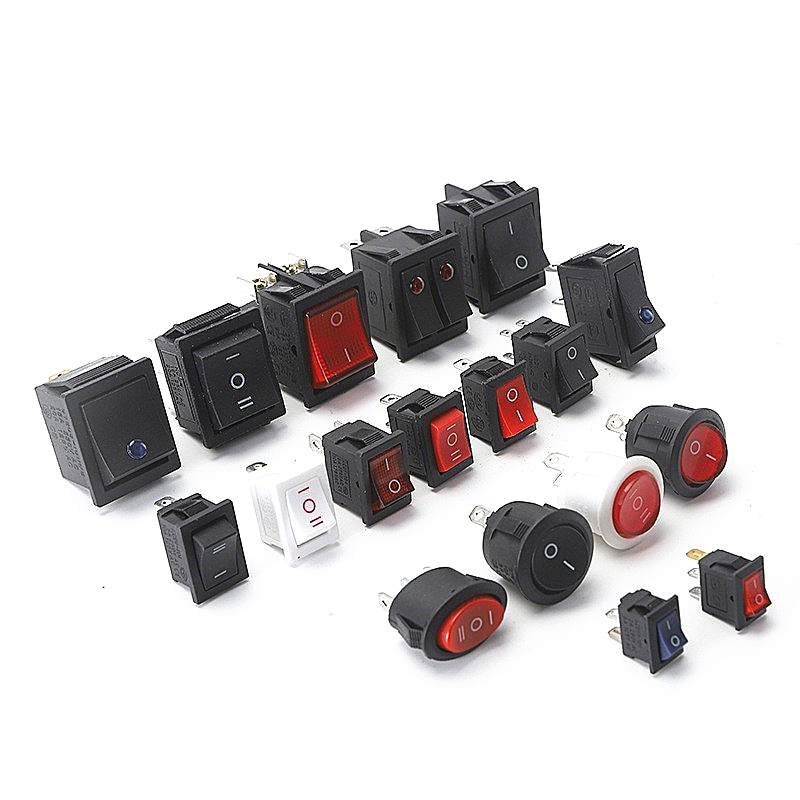

Types of rocker switch

DPST rocker switch Round rocker switch illuminated rocker switch Rectangular rocker switch

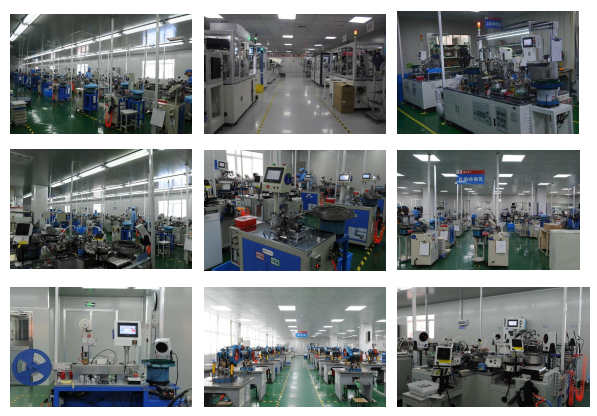

The product automation coverage rate is over 85%, ensuring stable product quality and reliable delivery time.
