mount push button tact switch

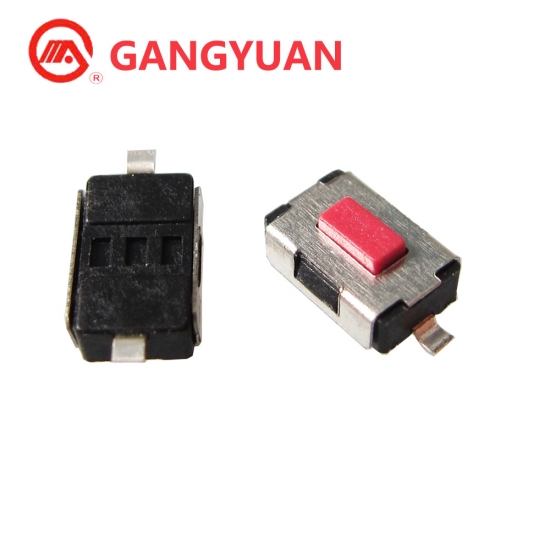

12V 50mA ROHS approved 6x3.5mm SMD surface mount push button tact switch

Brand:
Gangyuan
Item NO.:
KAN0442
Order(MOQ):
50 pcs
Payment:
T/T
Product Origin:
zhejiang/shenzhen
Color:
red and silver
Shipping Port:
ningbo or shenzhen
Lead Time：
3 Working Days after payment

Outline (mm)
6.00mm x 3.50mm
Mounting Type
Surface Mount
lllumination
Non-llluminated
IP Rating
IP4X

Product Detail

12V 50mA ROHS approved 6x3.5mm SMD surface mount push button tact switch

Basic Information

Item No.	KAN0442
Rated	12V DC, 50mA (effective value)
Contact resistance	≤50mΩ
Insulation Resistance	≥100MΩ
Full Travel	0.25±0.1mm
Operating force	1.6±0.5 or 2.6±0.5
Life expectancy	50000Cycles or 30000Cycles
Stem Strength	20N.min.

Dimension

surface mount tact switch.jpg

Tact Switch Using Attention

1．Please consult us when considering to wash tact switches

2．Please don’t immerse soldering flux into tact switches

3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4．The second welding should be done after switches return to normal temperature

Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.

Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

act Tactile Switch
