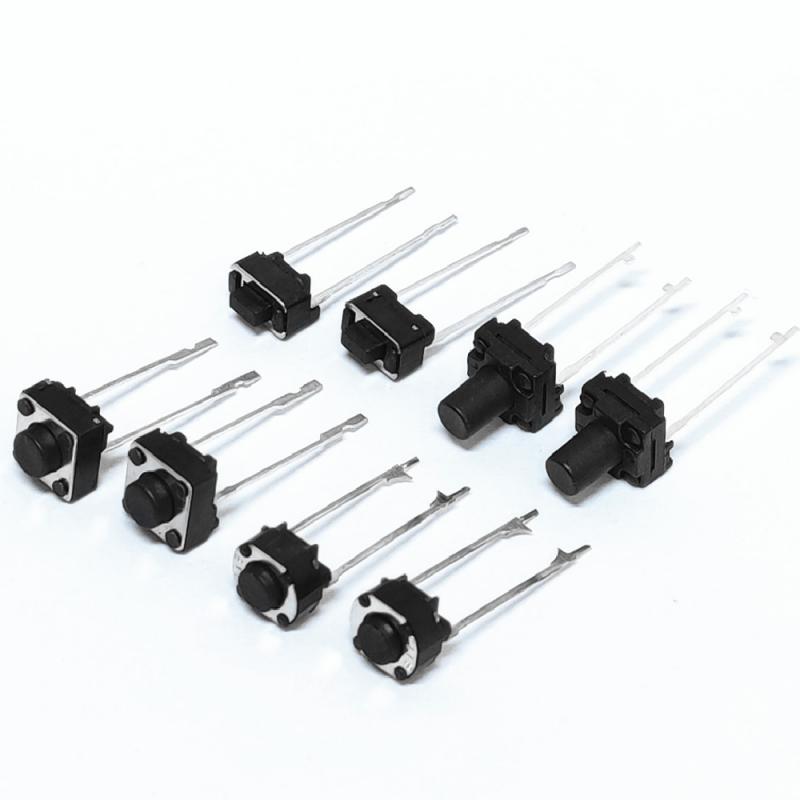

Tactile Switches, also known as push buttons, can be found everywhere: from phones to elevators to large industrial machines. They are the simplest type of input device.
Brand:
GangyuanItem NO.:
KAN3551-0501B 1Order(MOQ):
10pcs samplePayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
BlackShipping Port:
Ningbo/ShenzhenLead Time：
7-15 working days for paymentOutline (mm)
6.00mm x 3.50mmMounting Type
Through Holelllumination
Non-llluminatedIP Rating
IP4Xmicro push button tactile switch normally open 2 pin dip tact switch
Basic Information

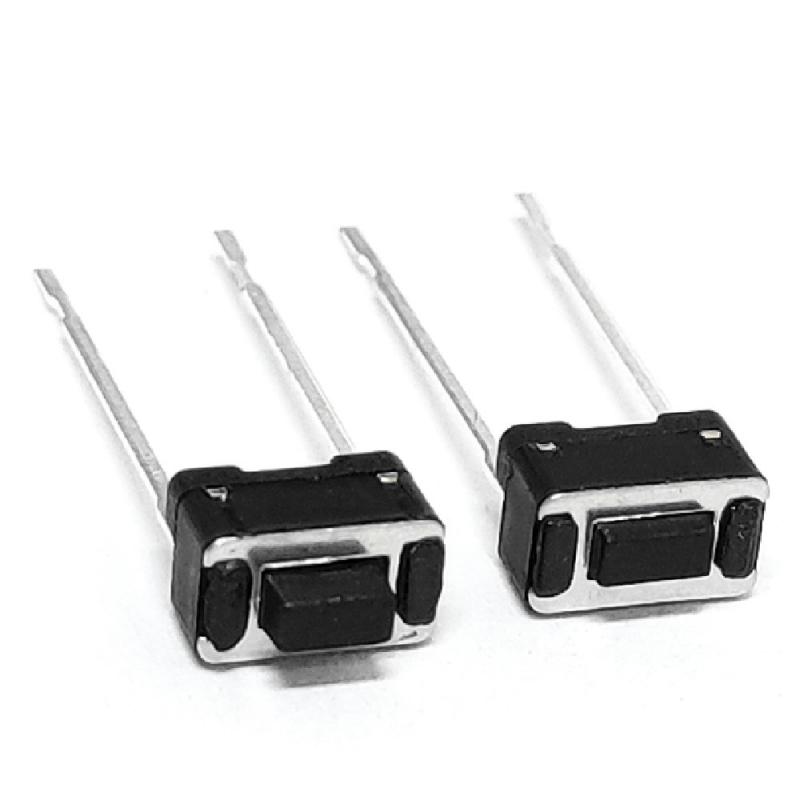

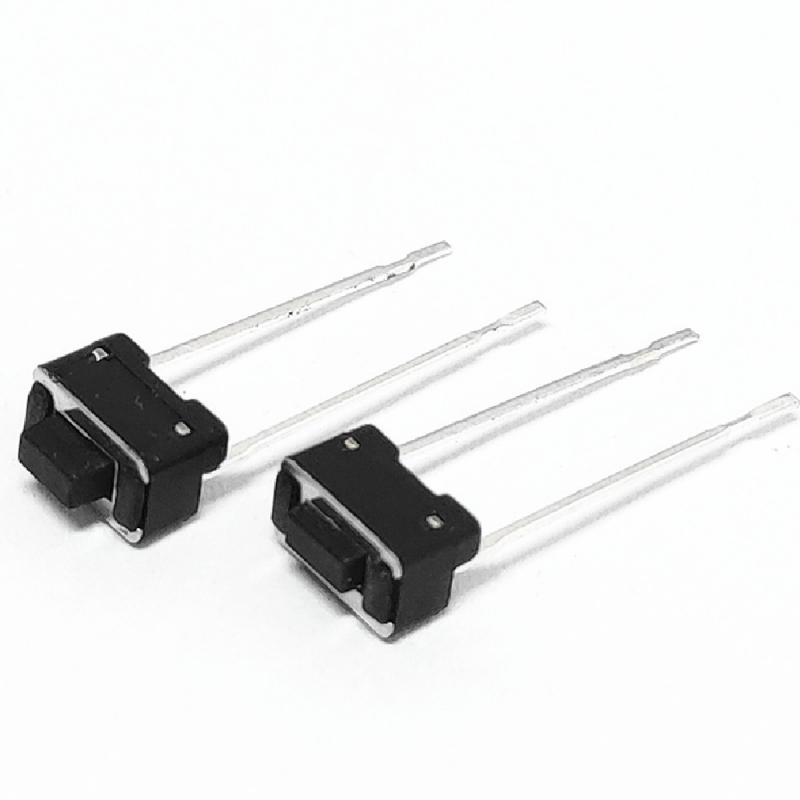

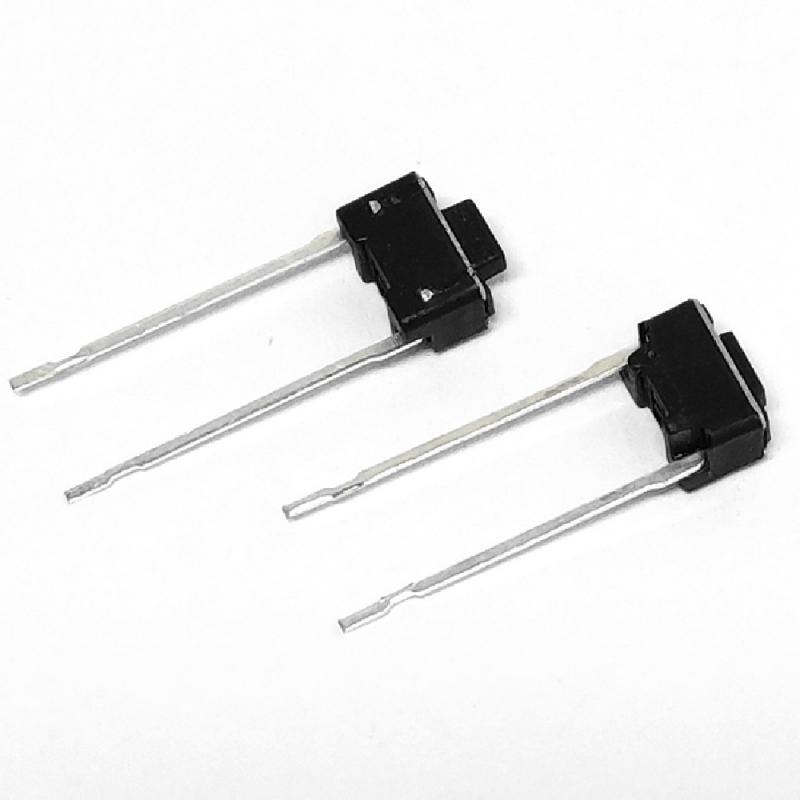

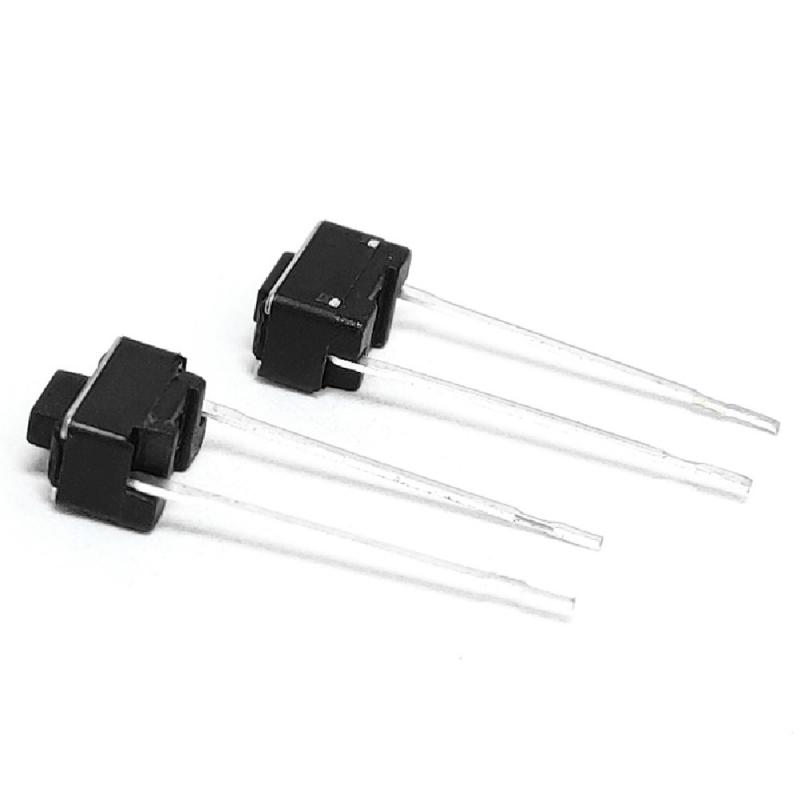

Type: 6*3.5mm tact switch 2 pin
Contact Resistance: ≤100mΩ
Insulation Resistance: ≥100MΩ
Life: 40,000cycles
Product height: 5mm

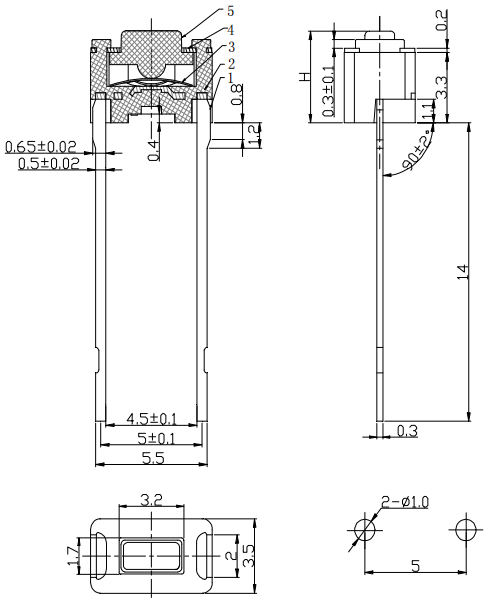

Tact Switch Dimension
How to choose a tact switch with a good feel ?
A touch switch is a common electronic component used to control the switch state of a circuit.
Here are some common features:
1. Moderate trigger force: The trigger force of a touch switch should be moderate, neither too sensitive to cause false touches
nor too slow to press hard. Appropriate trigger force can improve the accuracy and comfort of operation.
2. Obvious feedback: A touch switch should have clear feedback, such as an obvious "click" sound or tactile vibration when pressed.
This allows users to clearly know whether the switch has been triggered to avoid misoperation.
3. Smooth operation: The operation of a touch switch should be smooth and fluent, without any feeling of lag or jamming.
This can be achieved by optimizing the structural design of the switch and using high-quality materials.
More references
2 Terminal PCB Board Push Button tact switch
2pin round tact switch
6mm 2 pin tact siwtch
3.5mm 2 pin tact switch
6x6mm waterproof dip tact switch
