A micro switch (also known as a snap-action switch or miniature limit switch) is a small, highly sensitive electromechanical switch that rapidly changes its electrical contacts with minimal physical force.
Brand:
GangyuanItem NO.:
G15-06SM05-40-1079Order(MOQ):
500pcsPayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
BlackShipping Port:
Ningbo/ShenzhenLead Time：
7-14 working days for paymentOutline (mm)
19.80mm x 12.00mmMounting Type
Through Holelllumination
Non-llluminatedIP Rating

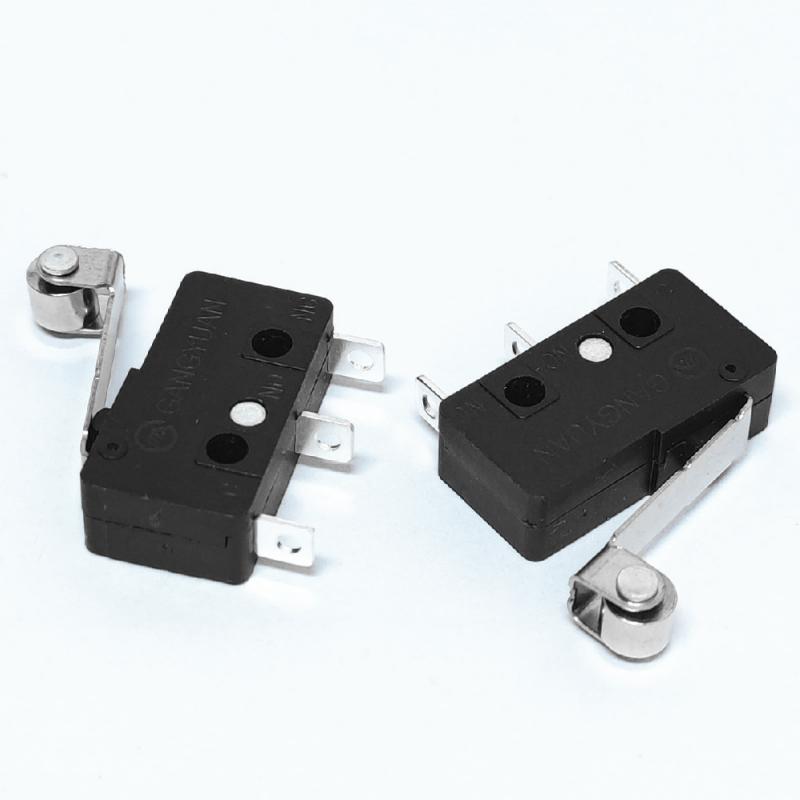

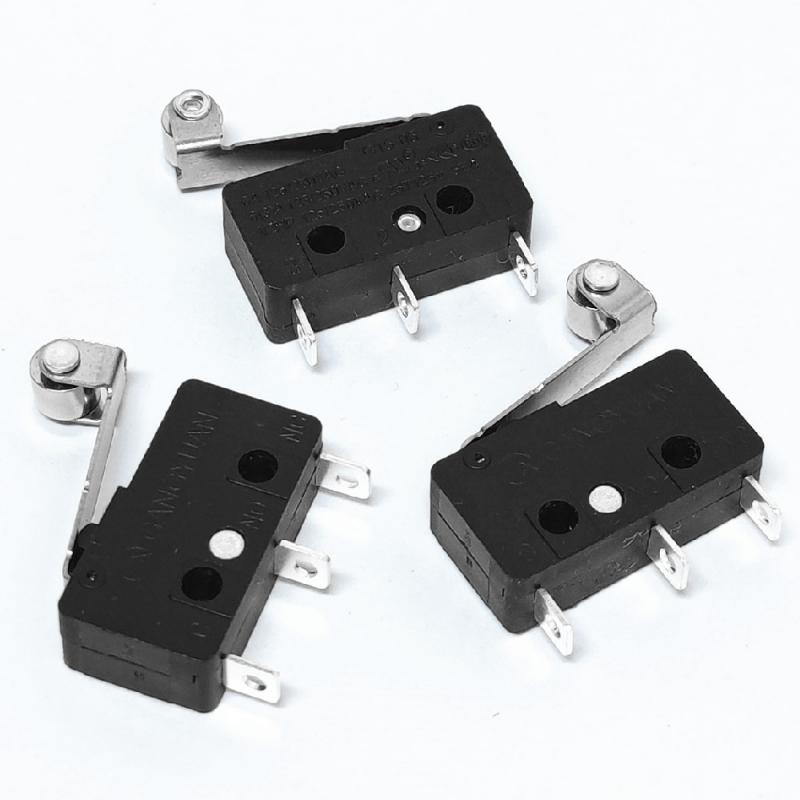

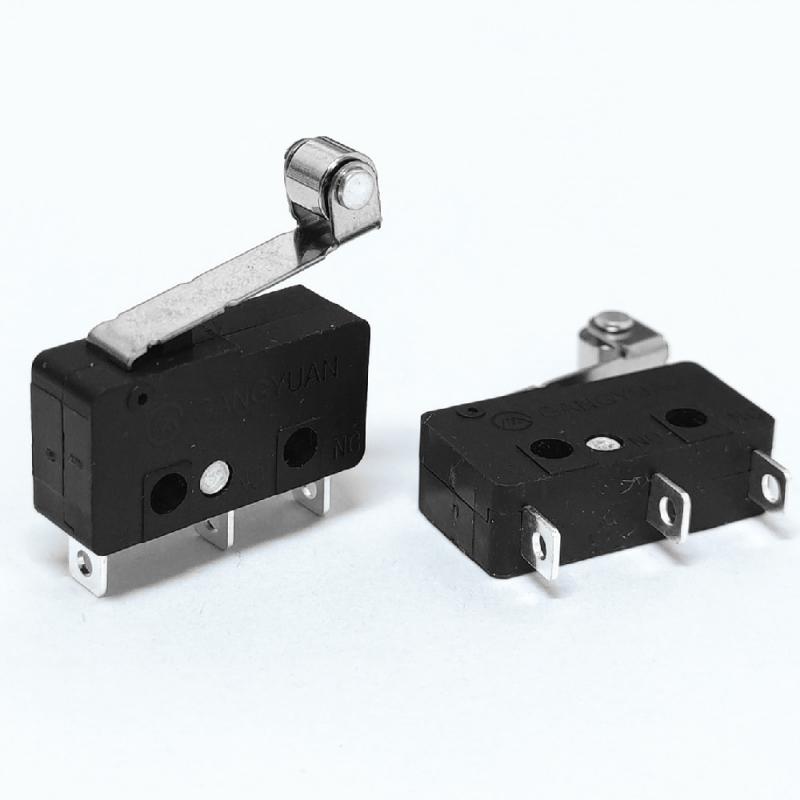

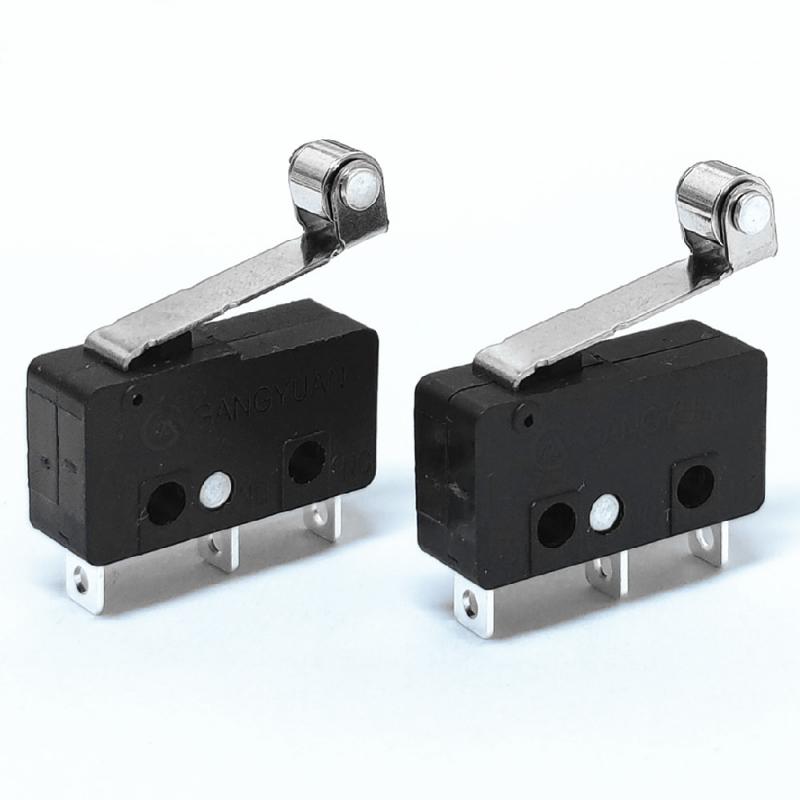

IP4XMiniature SPDT push button limit Micro switch with roller lever
Specification
Type: Mini on off micro switch
Voltage Rating: 125/250V AC
Current Rating: 6A
Contact Resistance: ≤100mΩ
Insulation Resistance: ≥100MΩ
Dielectric Withstanding Voltage: 1000V AC 1Min
Soldering Temperature: 260±5℃ 5s
Operating Temperature Range: -25℃～+85℃
Operating Force: 40±20gf
Life Time(mating cycles): 10000 Cycles

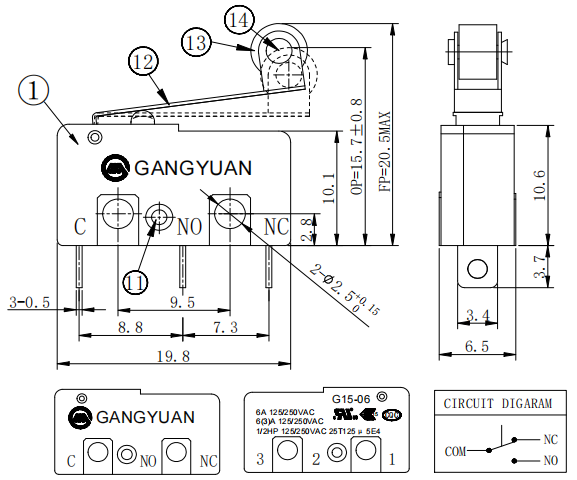

Micro switch circuit
Key Features
Snap-Action Mechanism – Instant switching at a critical trigger point (low operating force).
Compact Size – Ideal for space-constrained applications.
Long Lifespan – Up to 10 thousand cycles (top-rated models).
Versatile Actuation – Available in lever, roller, button, and hinge styles.
Reliable & Cost-Effective – Widely used in industrial, automotive, and consumer electronics.
Popular Applications
Home Appliances – Washing machine lid switch, microwave door safety interlock.
Industrial Control – CNC machines, conveyor belt limit detection.
Automotive – Brake pedal sensor, power window safety cutoff.
Electronics – Mouse buttons, printer paper jam detection.

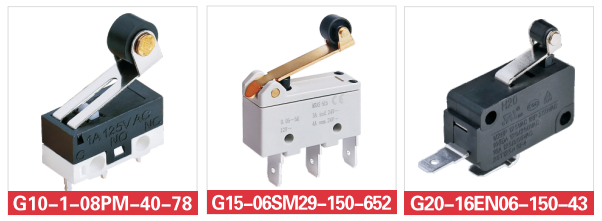

Roller Lever Micro Switch Type
Miniature mouse micro switch Auto micro switch SPST-NO short roller micro switch
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
Categories

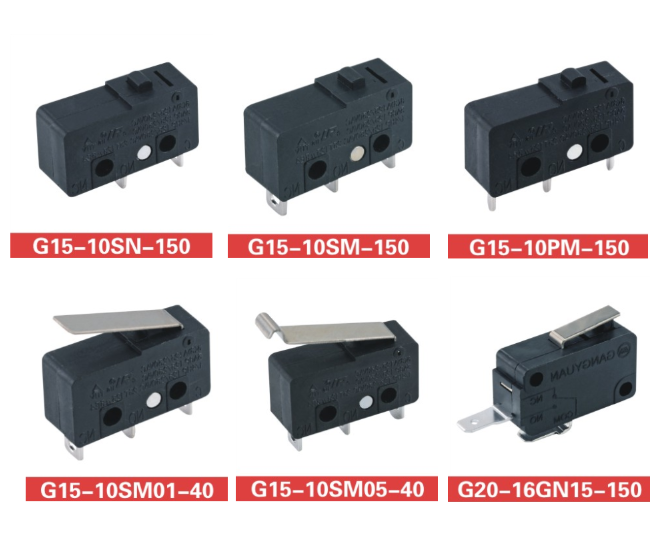

Sub-miniature in size, the G15 Series snap-action switch is UL certified.
micro switch manufacturers of china，surface mount micro switch
G15-06SM03-30-15: On Off, T85/125, 6A 125v Electronic Micro Switch.
G15-06: 3 Position, 6A, 125/250VAC, SPDT type mini micro switch.
G15-10SM04: 10A 125/250v AC, T125 5e4, on off micro switch.
G15-10SM08: 10A 250V, high level, 10,000cycles mini micro switch.
Micro switch is widely used in mouse, security products, door bells, car electronics, telecommunications, military products, Testing equipment, Household appliances, medical equipment, BAS, electric tools, radio equipment, etc.
GANGYUAN 5e4, 25t125, 3 Pin Light Weight Micro Switch with lever
