Micro Switch 3 Pin Momentary Limit

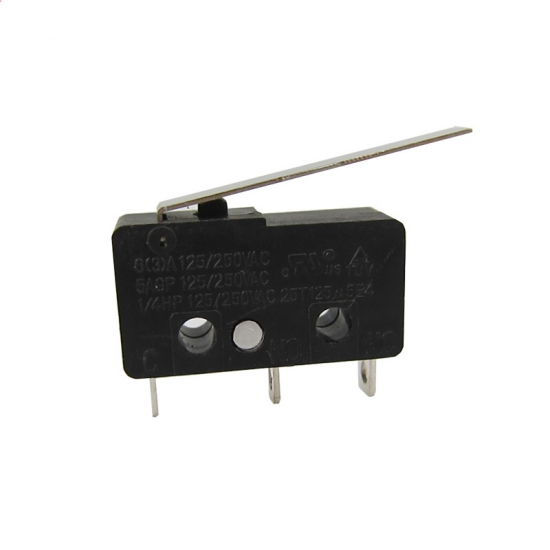

Micro Switch 3 Pin Momentary Limit Switch Push Button Micro Switch

Cherry 3 Pin, datasheet micro switch gla, operating temperature range -25℃~85℃, Voltage Rating 125/250v AC, Current Rating 10A.

Basic Information

Dimension

Tact Switch Using Attention

2．Please don’t immerse soldering flux into tact switches

3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4．The second welding should be done after switches return to normal temperature

Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.

Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
