Home Switch Tactile switch 04 Series tact switch Low profile SMT tact switch
Miniature 4pin tact switch Miniature 4pin tact switch Miniature 4pin tact switch

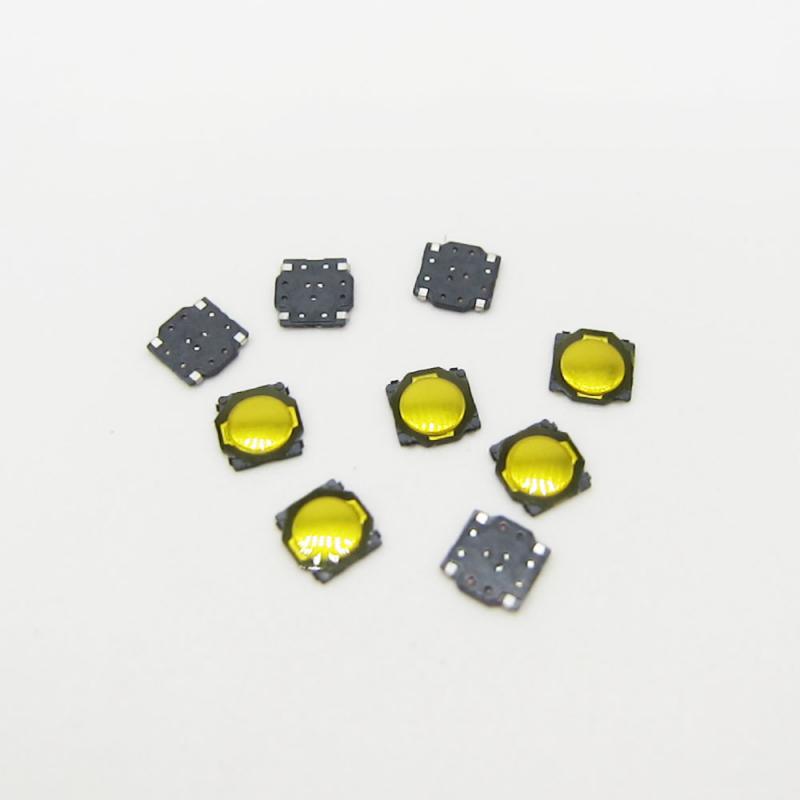

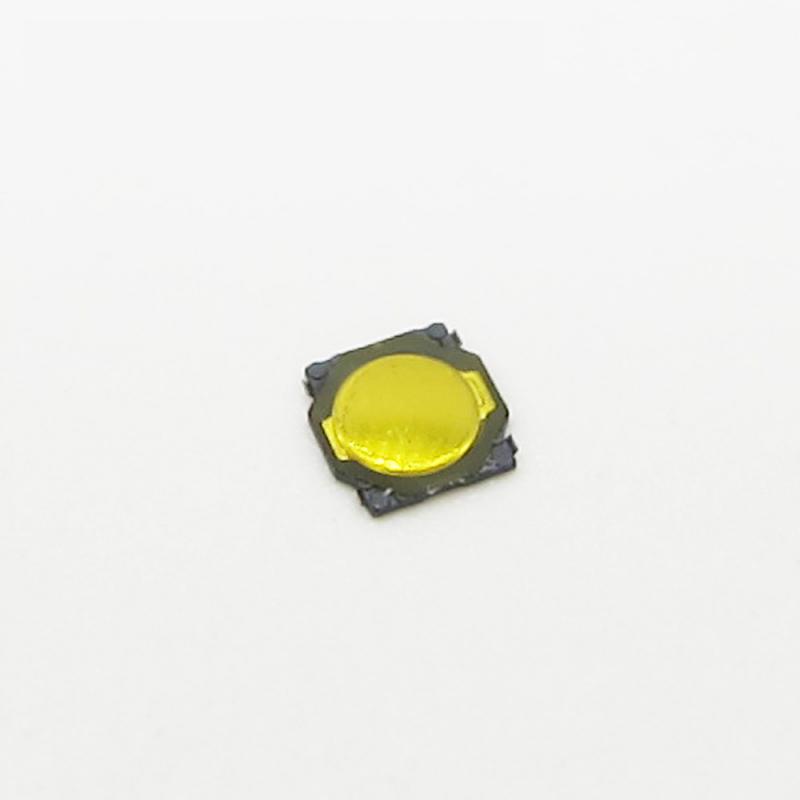

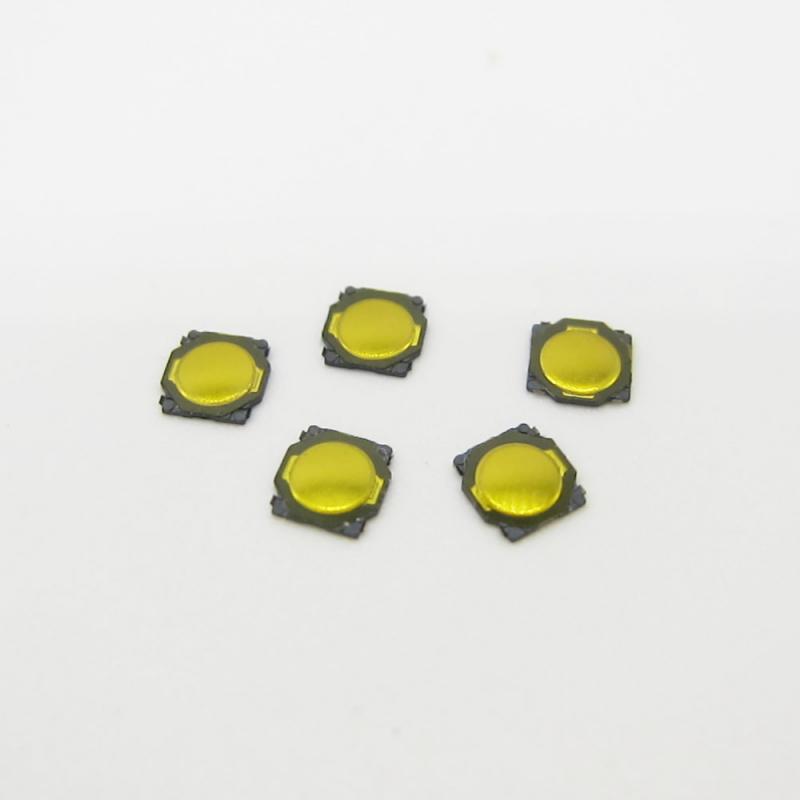

Low profile SMT tact switch

Customerizing options:

Operating force: 160/ 260 ±50gf

Long life circle: 100 000 /200 000/ 500 000 times


  • Brand:

    Gangyuan

  • Item NO.:

    KAN3742-035XX

  • Order(MOQ):

    5000

  • Payment:

    100% T/T Before Production

  • Product Origin:

    Zhejiang, China (Mainland)

  • Color:

    White and yellow

  • Shipping Port:

    WenZhou/Shenzhen

  • Lead Time：

    7-14 Working Days For Payment

  • Outline (mm)

    3.70mm x 3.70mm

  • Mounting Type

    Surface Mount

  • lllumination

    Non-llluminated

  • IP Rating

    IP4X
Contact Us

  • Product Detail

12V 50mA micro miniature SMT low profile tact switch

Membrane sensitive push button tactile switch


Parameter


China manucatured tact switch


Thickness: 0.35mm

Contact Resistance: ≤100mΩ

Insulation Resistance: ≥100MΩ

Bounce: 10ms max

Operating Force:  160 or 260±50 gf

Full Travel: 0.2±0.1mm

Return Force: 20gf Min

Operating Temperature Range: -30℃～80℃

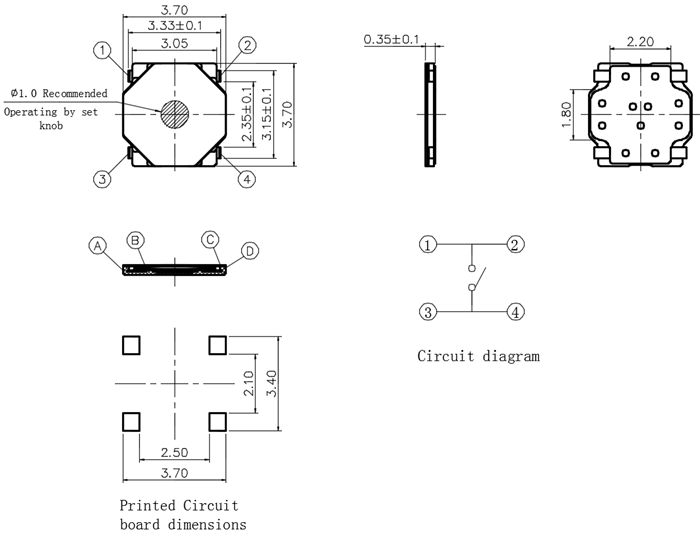

Drawing



Features


  • SMT low profile for effective Mounting application
  • Contributed to the miniaturization and light weight of the whole product
  • Suitable for reflow soldering
  • Reel packaging


Application


For audio equipment, video recorders, communication equipment, cameras, automobiles, remote controls, mobile phones, etc. that require thinning and light weight
