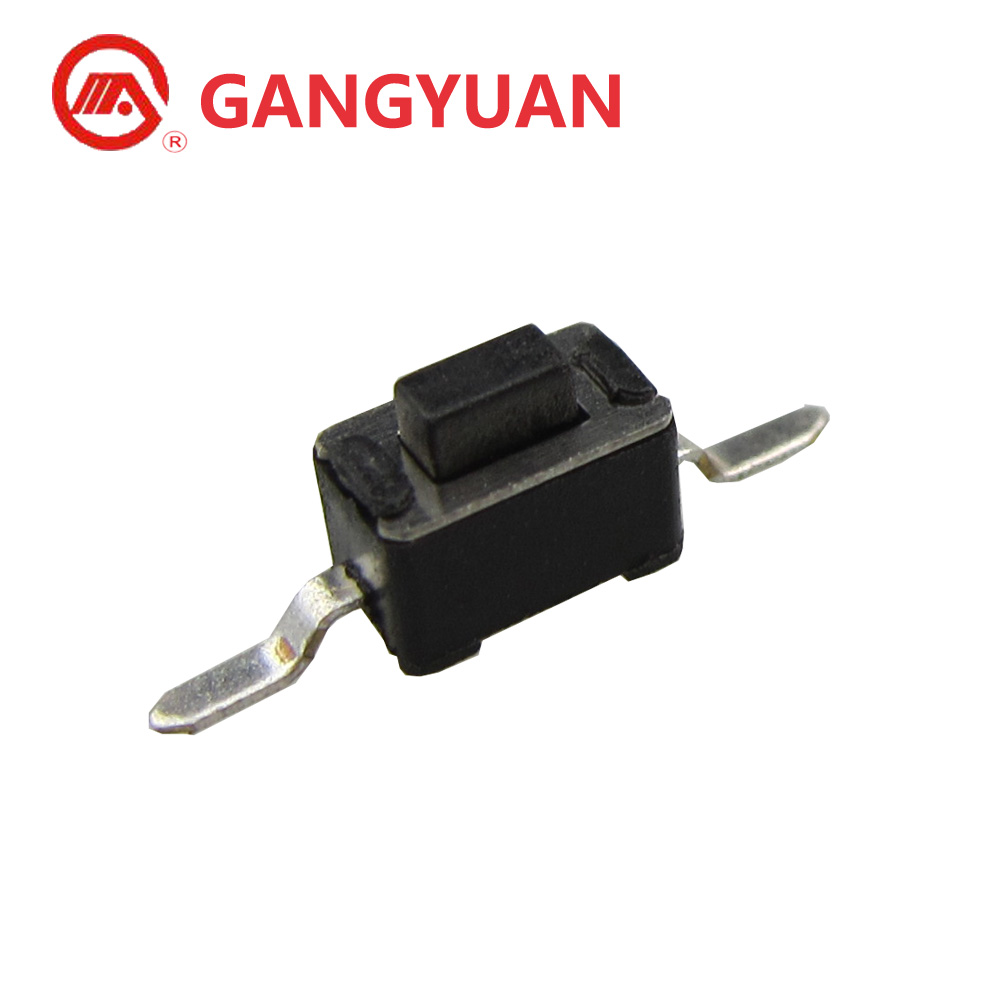

KAN3541B 6x3.5 SMD Tacktle Switch

Gangyuan KAN3541B 6x3.5 SMD Momentary Push Switch With 2 Pin Tacktle Switch

Brand:
Gangyuan
Item NO.:
KAN3541B
Order(MOQ):
1000pcs
Product Origin:
Zhejiang, China (Mainland)
Color:
black
Shipping Port:
Ningbo/Shenzhen
Lead Time：
7 Working Days after payment

Outline (mm)
6.00mm x 3.50mm
Mounting Type
Surface Mount
lllumination
Non-llluminated
IP Rating
IP4X

Product Detail

Gangyuan KAN3541B 6x3.5 SMD Momentary Push Switch With 2 Pin Tacktle Switch

Basic Information

	Life cycles	30,000/50,000cycles
	Rating12VDC	12VDC 50mA
	Type	SMD
	Travel	0.25±0.1mm
	Operating force	160gf/260gf±50gf
	Operating Temperature	-20℃~+70℃
	Dimension	6x3.5xH(H=4.3/5mm)
	Certificate	ROHS SGS ISO9001/14001

Dimension

Tact Switch Using Attention

1．Please consult us when considering to wash tact switches

2．Please don’t immerse soldering flux into tact switches

3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4．The second welding should be done after switches return to normal temperature

Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.

Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
