This is a high-sensitivity micro switch made in China that can be used in industrial fields
Brand:
GangyuanItem NO.:
G15-06SM01-40-01Order(MOQ):
1000Payment:
EXWProduct Origin:
ZhejiangColor:
BlackShipping Port:
Ningbo/shenzhenLead Time：

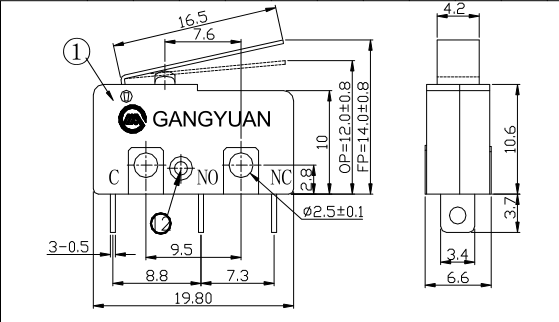

7-14 working days for paymentOutline (mm)
20.00mm x 10.00mmMounting Type
Through Holelllumination
Non-llluminatedIP Rating

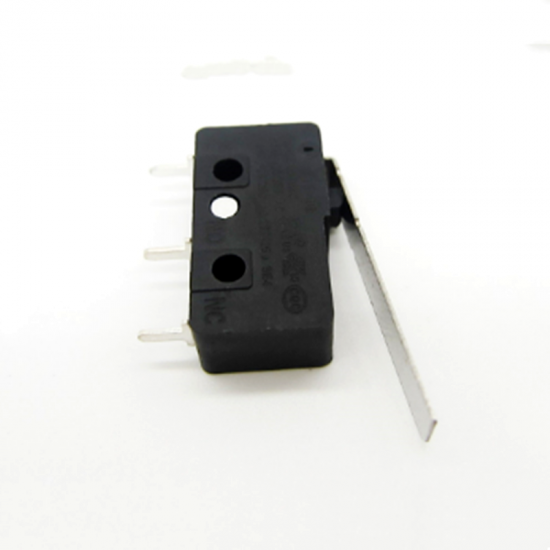

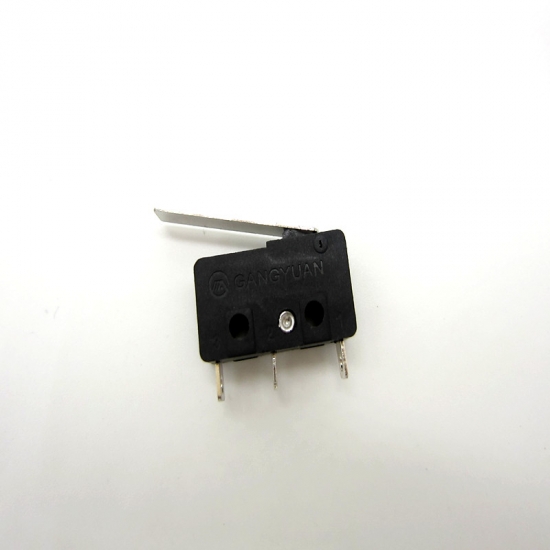

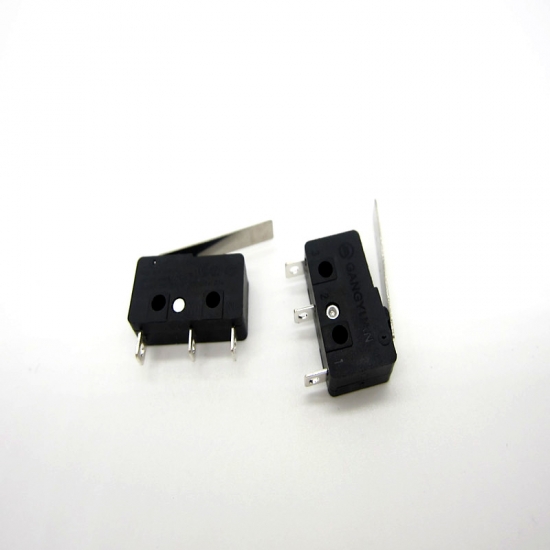

IP4X3 pin sensitive micro switch 250v
High quality limit lever operation switch
Product Description
Product number: G15-06SM01-40-01
Operating Temperature Range : -25℃～+125℃
Operating Relative Humidity : ≤85%
Voltage Rating : 125/250V AC
Current Rating : 6A
Contact Resistance : ≤100mΩ
Insulation Resistance : ≥100MΩ
Dielectric Withstanding Voltage : 1000V AC 1Min
Soldering Temperature : 260±5℃ 5s
Operating Force : 40±20gf
Life Time(mating cycles): 10000 Cycles
Delivery
Company information
1994 Set up Yueqing Shenyuan Electrical Switch factory
2003 Developing to produce & test by automatic machines
2004 Set up GYE electrical department, successful develop transformers & adapters
2005 Switch annual output reached 10 billion, cooperate with SHARP ,Panasonic.
2008 CANON,LG. establish cooperation relationship Hubei Gangyuan Electric Co.,Ltd established and start to produce
Our customers
RFQ
Q： Are you manufacture/ factory? Location？
A ：Yes, three plants located in Shenzhen , Zhejiang, Hubei province.
Q： How many products do you have?
A ：About 2000 set of models.
Q : Can I get free sample before placing an order? MOQ?
A : Yes, free samples will get ready within 7~14 days. MOQ 1000pcs.
Q : What about the delivery time?
A : Around 9~20 working days.
Q : What about terms of payment?
A : T/T, L/C, D/A, Paypal, Cash etc.
Q : Can you customize products according to the design drawing?
A :We have independent R&D center in Shenzhen, ODM/OME project is
Q： How to deal with the faulty?
A： Firstly,our products are produced in strict quality control system,and 70% produced by automatic,the defective rate will be less than 1PPM.Secondly,our QC department will analysis the defect reason within 12h.
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
Categories
Sub-miniature in size, the G15 Series snap-action switch is UL certified.
micro switch manufacturers of china，surface mount micro switch
G15-06SM03-30-15: On Off, T85/125, 6A 125v Electronic Micro Switch.
G15-06: 3 Position, 6A, 125/250VAC, SPDT type mini micro switch.
G15-10SM04: 10A 125/250v AC, T125 5e4, on off micro switch.
G15-10SM08: 10A 250V, high level, 10,000cycles mini micro switch.
Micro switch is widely used in mouse, security products, door bells, car electronics, telecommunications, military products, Testing equipment, Household appliances, medical equipment, BAS, electric tools, radio equipment, etc.
GANGYUAN 5e4, 25t125, 3 Pin Light Weight Micro Switch with lever
